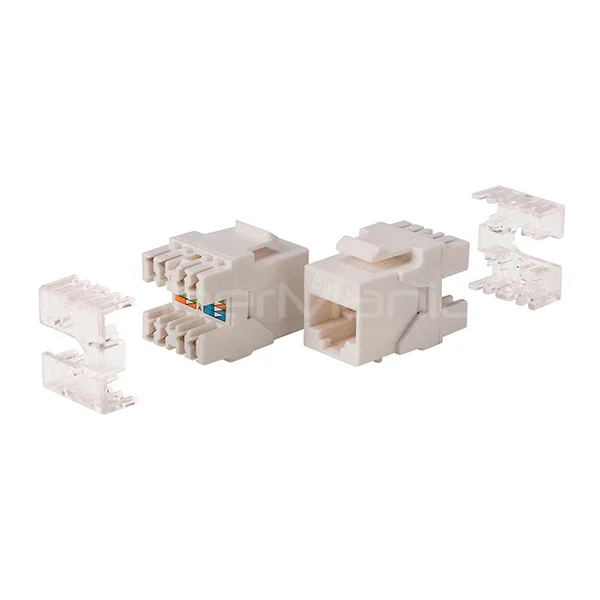

CAT.6 UTP Keystone Jack, 180 Degree, Short Body, White

Name: CAT.6 UTP Keystone Jack 180 Degree Short | FiberMania
SKU: KJ-C6U8SWH

P/N: KJ-C6U8SWH

Categories:

CAT.6 Keystone Jacks

Product Highlights:

CAT.6 UTP keystone jack, 180-degree short-body design, white color
Dual IDC punch-down contacts for fast, reliable termination
Supports 24–26 AWG solid wires and meets TIA/EIA-568-B.2 CAT.6 standards
Ideal for LAN, WAN, data center, and telecom network installations
FiberMania offers full OEM/ODM customization

Description

The CAT.6 UTP Keystone Jack in white is designed for high-performance Ethernet cabling in structured network installations. Its short-body, 180-degree design allows for space-saving connections in patch panels, wall plates, and surface mount boxes. The jack features dual IDC punch-down contacts, providing fast and reliable termination for 24–26 AWG solid wires, ensuring a stable network connection with minimal signal loss.

Constructed from durable PC and flame-retardant PBT materials, this keystone jack maintains mechanical integrity and electrical performance under typical operating conditions. The jack is UL listed and meets TIA/EIA-568-B.2 standards for CAT.6 cabling, making it ideal for enterprise LANs, data centers, and telecommunications networks. FiberMania also offers OEM/ODM customization for labeling, color, and packaging to meet specific project needs.

Specification

Type	Short Body Keystone Jack
Connector	RJ45, 8P8C
Orientation	180° Short Body
Color	White
Material	ABS
Shielding	UTP
Features	Short body for compact installation
Applications	Compact installations; patch panels
Standards Compliance	TIA/EIA CAT.6; RoHS
Installation	Snap-in / Short body
Customization	OEM/ODM

Features

Short-body 180-degree modular design for space efficiency
Dual IDC punch-down contacts for quick termination
Rated for 24–26 AWG solid wires
Housing material: PC; insert material: flame-retardant PBT
UL listed for safety and compliance
Supports TIA/EIA-568-B.2 CAT.6 standard
Wiring diagrams printed on the jack for easy termination

Applications

Enterprise LAN and WAN networks
Data center cabling
Telecommunications installations
Patch panels and wall plates

Mechanical

Housing material: PC
Insert material: flame retardant PBT
PCB material: FR-4, T=1.6mm
Contact material: phosphor bronze stamp pin, T=0.30mm
IDC contact material: phosphor bronze, T=0.50mm with tin plating
RJ45 jack: IFE: 750 times min
IDC lifespan: 200 times min
Wire: 24-26AWG
Tia Cat.5e perm link test: worst pair next margin: ≥3dB
Retentiveness of insertion structure: 50N 60±5s
