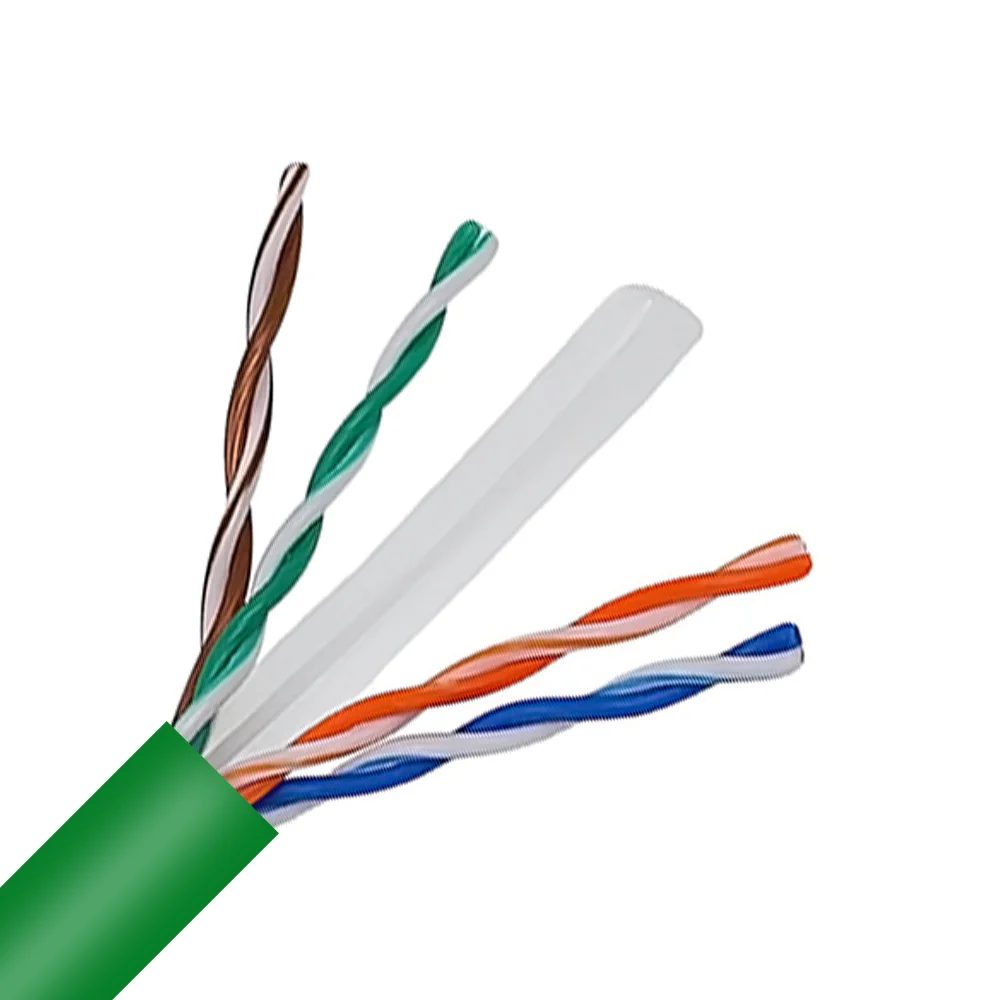

CAT.6 UTP Bulk Cable, Bare Solid Copper, 23AWG, 4 Pairs, PVC Jacket, Green, 305M Per Reel
Categories:
Product Highlights:
-
Green CAT.6 UTP bulk cable, 23AWG solid copper, 4 pairs, 305M reel.
-
Supports 10/100/1000 Mbps Gigabit Ethernet with high signal integrity.
-
Indoor-rated PVC jacket ensures durability and easy installation.
-
FiberMania provides OEM/ODM customization for colors, printing, and professional network projects.
Table of Contents
Description
This CAT.6 UTP bulk cable is designed for high-performance data transmission in structured cabling networks. Constructed with bare solid 23AWG copper conductors and four unshielded twisted pairs, it ensures reliable Gigabit Ethernet performance up to 1000 Mbps. The PVC jacket provides protection for indoor installations while maintaining flexibility for easy routing and termination. Each 305-meter reel comes conveniently packaged with a side outlet for quick deployment. The included cross filler maintains pair separation, reducing crosstalk and enhancing signal integrity.
FiberMania offers OEM and ODM services for custom colors, printing, and reel specifications, allowing integration with branded network projects or specialized installations.
Specification
| Product Category | CAT.6 |
|---|---|
| Cable Type | UTP |
| Application Type | High-Speed Ethernet Networking |
| Number of Pairs | 4 Pairs |
| Conductor Gauge | 23 AWG |
| Conductor Material | Solid Bare Copper |
| Shielding | Unshielded |
| Insulation Type | HDPE |
| Jacket Material | PVC |
| Jacket Color | Green |
| Outer Diameter (Typical) | Approx. 6.2–6.5 mm |
| Cable Length | 305 m |
| Packaging | Reel |
| Installation Environment | Indoor |
| Bandwidth | 250 MHz |
| Maximum Data Rate | Up to 1Gbps (100m) / 10Gbps (≤55m) |
| Standards Compliance | ANSI/TIA-568-C.2, ISO/IEC 11801 |
| Fire Rating | PVC (CM) |
| Certifications | UL Listed, RoHS Compliant |
| Typical Applications | LAN, Office Cabling, Data Centers |
| OEM / ODM Support | Yes |
Features
-
CAT.6 performance for 10/100/1000 Mbps (Gigabit Ethernet)
-
Four unshielded twisted pairs with cross filler
-
23AWG solid bare copper conductors
-
PVC jacket for indoor installation
-
305-meter reel with side outlet for easy handling
-
Supports structured cabling systems
Applications
-
Office and enterprise network cabling
-
Data centers and server rooms
-
Gigabit Ethernet, Fast Ethernet, and TP-PMD/CDDI networks
-
Industrial Ethernet and factory automation
Q&A
Q: Can this cable be used for outdoor installations?
A: This cable is designed for indoor use. Outdoor deployment requires UV-resistant or armored cable variants.
Q: Is it compatible with CAT.5E networks?
A: Yes, it is backward compatible with CAT.5E standards.
Q: Can I order custom colors or markings?
A: Yes, FiberMania provides OEM/ODM options for custom colors, logos, and reel printing.
Q: How does the cross filler help the cable?
A: It maintains pair separation, reduces crosstalk, and enhances signal integrity.
Q: What environments are suitable for this cable?
A: Ideal for offices, data centers, industrial automation, and any indoor structured cabling installation.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
