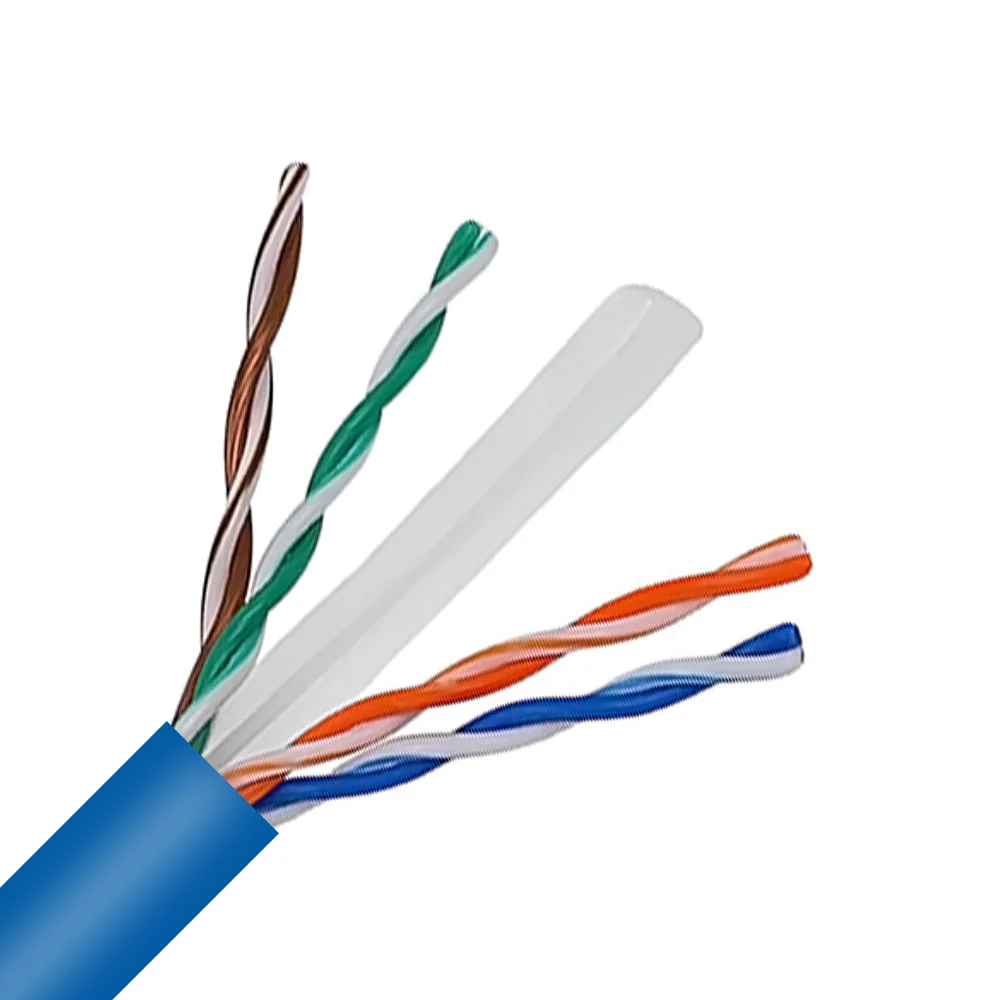

CAT.6 UTP Bulk Cable, Bare Solid Copper, 23AWG, 4 Pairs, PVC Jacket, Blue, 305M Per Reel
Categories:
Product Highlights:
-
CAT.6 UTP bulk cable with 23AWG solid copper conductors.
-
Supports high-speed Ethernet up to 1 Gbps.
-
Four color-coded pairs with cross filler for optimal performance.
-
FiberMania provides OEM/ODM options for custom colors, branding, and packaging.
Table of Contents
Description
The CAT.6 UTP Bulk Cable is designed for high-performance Ethernet applications, providing reliable data transmission up to 1 Gbps (1000Base-T). Constructed with bare solid copper conductors and 23AWG size, this unshielded twisted pair (UTP) cable ensures minimal signal loss, excellent attenuation, and crosstalk characteristics. The four color-coded pairs with cross filler allow organized wiring and stable performance, making it ideal for structured cabling installations in offices, data centers, and industrial environments.
FiberMania offers customization options for cable length, jacket color, and labeling, enabling OEM/ODM solutions for large-scale network deployments or branded cabling projects.
Specification
| Product Category | CAT.6 |
|---|---|
| Cable Type | UTP |
| Application Type | High-Speed Ethernet Networking |
| Number of Pairs | 4 Pairs |
| Conductor Gauge | 23 AWG |
| Conductor Material | Solid Bare Copper |
| Shielding | Unshielded |
| Insulation Type | HDPE |
| Jacket Material | PVC |
| Jacket Color | Blue |
| Outer Diameter (Typical) | Approx. 6.2–6.5 mm |
| Cable Length | 305 m |
| Packaging | Reel |
| Installation Environment | Indoor |
| Bandwidth | 250 MHz |
| Maximum Data Rate | Up to 1Gbps (100m) / 10Gbps (≤55m) |
| Standards Compliance | ANSI/TIA-568-C.2, ISO/IEC 11801 |
| Fire Rating | PVC (CM) |
| Certifications | UL Listed, RoHS Compliant |
| Typical Applications | LAN, Office Cabling, Data Centers |
| OEM / ODM Support | Yes |
Features
-
4 pairs of 23AWG solid copper conductors
-
Unshielded Twisted Pair (UTP) design
-
Supports data transfer rates up to 1000 Mbps (1 Gbps)
-
PVC jacket with durable protection
-
Convenient 305M reel packaging with side outlet
-
Cross filler for improved signal integrity
Applications
-
Gigabit Ethernet networks
-
Structured cabling in offices and data centers
-
Industrial Ethernet and factory automation
-
Campus LAN installations
Q&A
Q: Can this cable be used for outdoor installations?
A: It is designed for indoor use; outdoor applications require UV-resistant or direct-burial rated cables.
Q: Is this cable suitable for Gigabit Ethernet?
A: Yes, it supports 10/100/1000 Mbps data transfer rates.
Q: Can I order custom jacket colors or lengths?
A: Yes, FiberMania provides OEM/ODM customization for color, length, and branding.
Q: Does the cross filler improve performance?
A: Yes, it reduces crosstalk and maintains pair separation for better signal integrity.
Q: Can it be used with both solid and stranded connectors?
A: This cable is solid core and intended for punch-down or termination with standard CAT6 connectors.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
