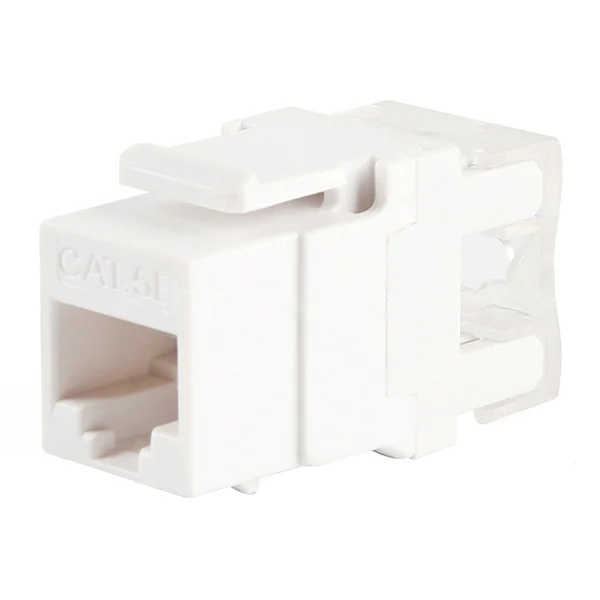

CAT.5E UTP Keystone Jack, 180 Degree, White

Name: CAT.5E UTP Keystone Jack 180 Degree White | FiberMania
SKU: KJ-C5UHWH

P/N: KJ-C5UHWH

Categories:

CAT.5E Keystone Jacks

Product Highlights:

CAT.5E UTP Keystone Jack, 180-degree punch down, white
Supports 24–26AWG solid wires and standard T568A/B wiring
Durable construction with RJ45 insert life ≥750 cycles and IDC life ≥200 cycles
FiberMania offers OEM/ODM customization

Description

The CAT.5E UTP Keystone Jack in white with 180-degree punch down design is engineered for reliable Ethernet connections in structured cabling systems. It supports 8-position 8-conductor (8P8C) wiring, compatible with both T568A and T568B standards. This keystone jack is suitable for use in wall plates, patch panels, and modular outlets.

Designed for high-performance networks, it features a robust PC housing and flame-retardant PBT inserts, ensuring long-lasting durability. The IDC contacts allow easy termination without special tools, while maintaining low contact resistance and stable signal transmission, meeting Cat.5e permanent link test requirements.

Specification

Type	Keystone Jack
Connector	RJ45, 8P8C
Orientation	180°
Color	White
Material	ABS
Shielding	UTP
Features	180° orientation; standard wiring; UTP
Applications	Structured cabling; wall plates; patch panels
Standards Compliance	TIA/EIA CAT.5E; RoHS
Installation	Punch-down / snap-in
Customization	OEM/ODM

Features

180-degree punch down for easy wiring
Supports 24–26AWG solid wires
High durability: RJ45 insert life minimum 750 cycles, IDC lifespan 200 cycles
Low contact resistance: ≤110mΩ
Housing: PC, insert: flame-retardant PBT
T568A/T568B wiring compatible
UL listed

Applications

Data centers
Office networks
Residential and commercial structured cabling
Patch panels and wall plate connections
LAN and Ethernet infrastructure

Mechanical

Housing material: PC
Insert material: flame retardant PBT
PCB material: FR-4, T=1.6mm
Contact material: phosphor bronze stamp pin, T=0.30mm
IDC contact material: phosphor bronze, T=0.50mm with tin plating
RJ45 jack: IFE: 750 times min
IDC lifespan: 200 times min
Wire: 24-26AWG
Tia Cat.5e perm link test: worst pair next margin: ≥3dB
Retentiveness of insertion structure: 50N 60±5s

Quality Qulifications and Compliance

To get the detailed certification, please go to the Compliance.

Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
