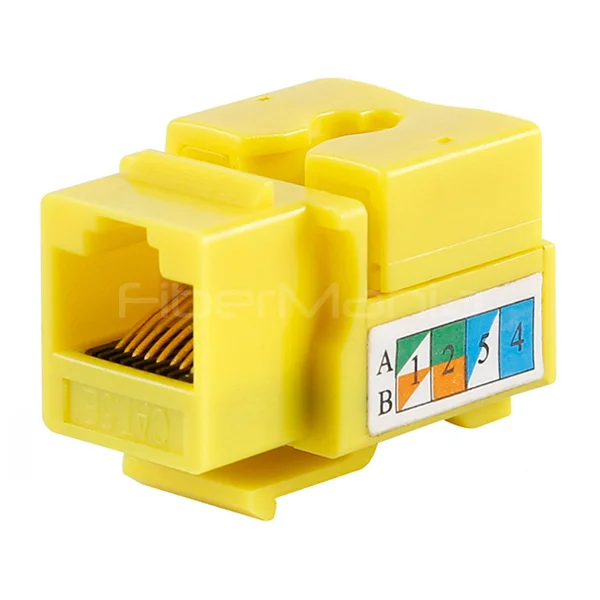

CAT.5E UTP Keystone Jack, 90 Degree, Yellow
Categories:
Product Highlights:
-
CAT.5E UTP keystone jack, 90-degree punch-down design
-
Durable ABS housing with dual IDC contacts
-
Meets international cabling standards including TIA/EIA, ISO/IEC, and EN50173
-
FiberMania offers full OEM/ODM customization for color, labeling, and branding
Table of Contents
Description
The CAT.5E UTP Keystone Jack in yellow is a reliable modular solution for Ethernet cabling. Designed with dual IDC punch-down contacts at a 90-degree angle, it provides a secure and efficient termination for 23–24 AWG solid cables. Its compact design allows for integration into standard keystone wall plates or patch panels, ensuring flexible installation in both residential and commercial networks.
Manufactured from high-quality ABS material, this keystone jack guarantees durability and stable performance. Tested according to international cabling standards, it ensures excellent signal integrity and reliable network connections for voice, data, and video transmissions.
Specification
| Type | Keystone Jack |
|---|---|
| Connector | RJ45, 8P8C |
| Orientation | 90° |
| Color | Yellow |
| Material | ABS |
| Shielding | UTP |
| Features | 90° orientation; standard wiring; UTP |
| Applications | Structured cabling; wall plates; patch panels |
| Standards Compliance | TIA/EIA CAT.5E; RoHS |
| Installation | Punch-down / snap-in |
| Customization | OEM/ODM |
Features
-
Dual IDC type with 90-degree punch-down
-
3µ”–50µ” gold plating available
-
ABS housing for durability
-
Fluke test report available
-
ANSI/TIA/EIA-568-B.2 category 5e/6 compliant
-
ISO/IEC 11801 and CENELEC EN50173 compliant
Applications
-
Ethernet LAN installations
-
Office and home networking
-
Patch panels and wall plates
-
Structured cabling systems
FAQ
Q: Is this keystone jack compatible with Cat6 cabling?
A: It is optimized for Cat5e, but can work with some Cat6 installations depending on wire gauge and environment.
Q: What is the gold plating specification?
A: Gold plating ranges from 3µ” to 50µ”, ensuring low contact resistance.
Q: Can this keystone jack be used in standard wall plates?
A: Yes, it fits all standard keystone wall plates and patch panels.
Q: Is testing documentation available?
A: Yes, Fluke test reports can be provided for performance verification.
Q: Can FiberMania provide customized versions?
A: Yes, OEM/ODM services are available for color, labeling, and branding.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
