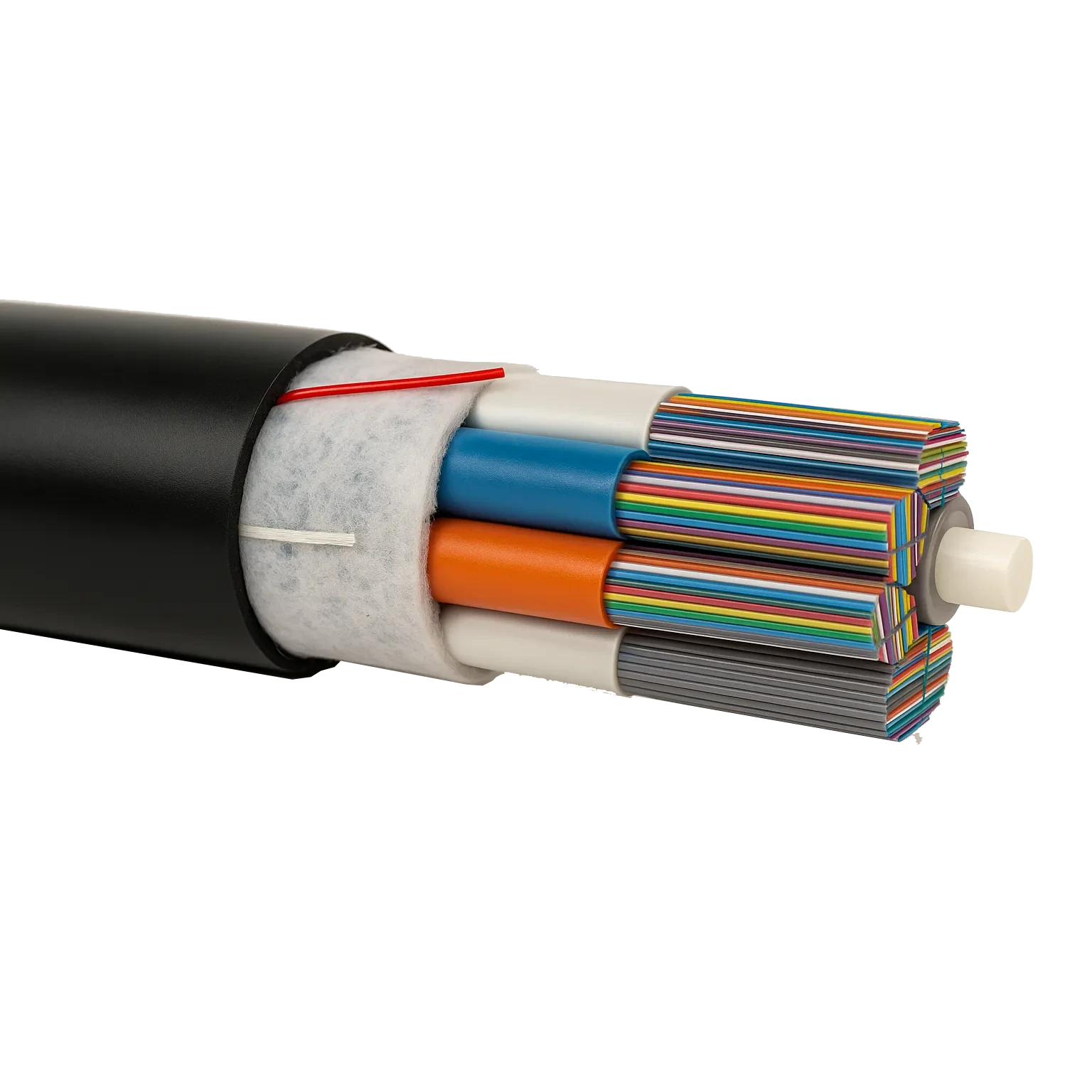

864 Fiber Multi-Tube Ribbon Fiber Optic Cable for Outdoor Backbone Networks
Categories:
Product Highlights:
- Up to 864 fibers in a compact multi-tube design
- 108-fiber ribbons for efficient mass fusion splicing
- SZ-stranded construction for easier installation
- G.657.A1 bend-insensitive single-mode fiber
- Water-blocked design for reliable outdoor performance
- HDPE jacket with excellent UV resistance
- Ideal for long-haul and metro backbone networks
Table of Contents
Description

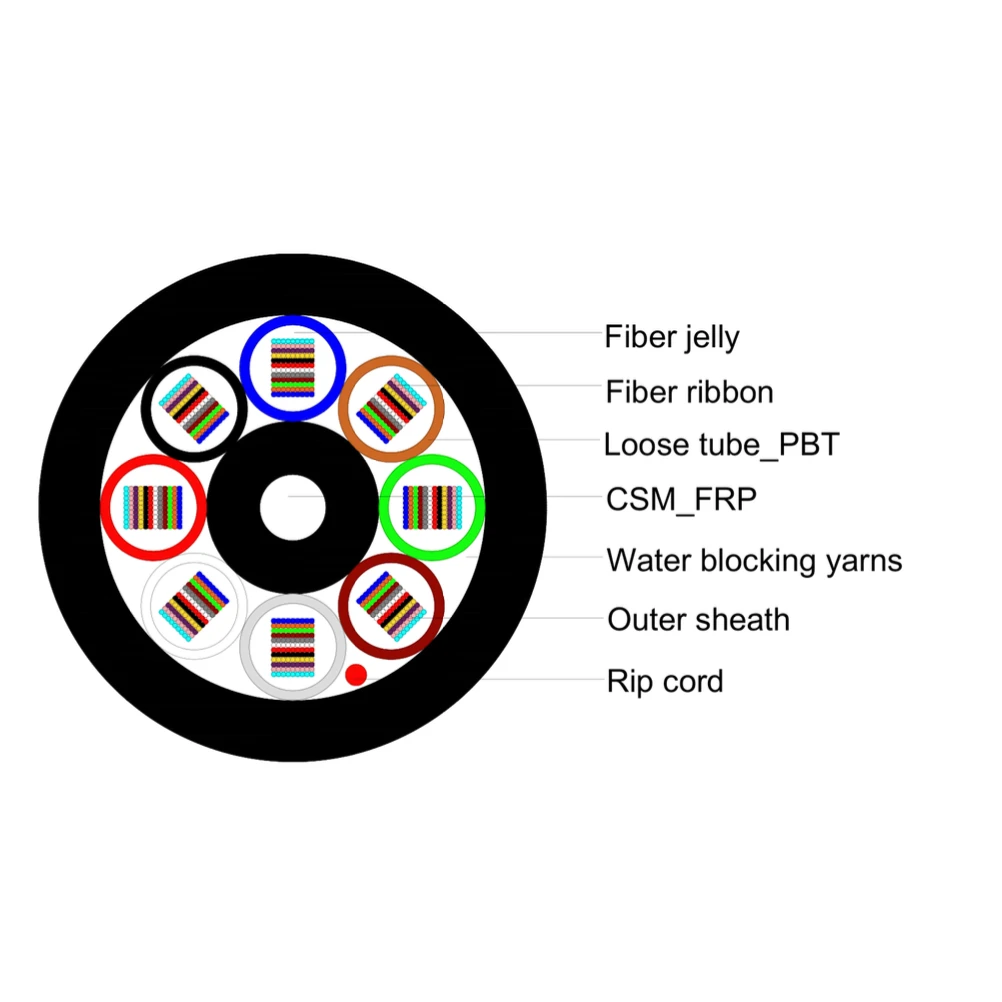

The 864 Fiber Multi-Tube Ribbon Fiber Optic Cable is a high-capacity outdoor cable engineered for long-haul, metro, and FTTx backbone networks where maximum fiber density and reliable performance are essential. Featuring eight SZ-stranded loose tubes, each containing 108-fiber ribbon stacks, the cable enables efficient mass fusion splicing to reduce installation time and labor costs. A non-metallic GFRP central strength member, water-blocking materials, and a durable HDPE outer jacket provide excellent tensile strength, moisture protection, and environmental resistance for duct, aerial, and direct burial installations. Despite its ultra-high fiber count, the compact cable structure maximizes duct utilization while delivering dependable long-term optical performance.
Specification
| Fiber Count | 864 |
|---|---|
| Ribbon Format | 108 fibers per tube |
| Central Strength Member | GFRP rod (3.7 mm) |
| Weight | ~456 kg/km |
| Nominal Diameter | 23.4 mm (±0.5 mm) |
| Water Blocking | Jelly + water-swellable yarns |
| Outer Jacket | HDPE (black) |
| Bend Radius | Static: 15×D / Dynamic: 30×D |
| Attenuation @1310nm | ≤ 0.35 dB/km |
| Attenuation @1550nm | ≤ 0.21 dB/km |
| Operating Temperature | –40°C to +60°C |
| Storage Temperature | –40°C to +70°C |
Features
- Ultra-high density design with 864 optical fibers
- 108-fiber ribbon stacks for fast mass fusion splicing
- Multi-tube SZ-stranded construction for flexible installation
- Non-metallic GFRP central strength member
- Jelly-filled core with water-swellable yarns for moisture protection
- UV-resistant HDPE outer jacket for outdoor durability
- Compact cable diameter for efficient duct utilization
- Suitable for aerial, duct, and direct burial deployment
- Low attenuation for long-distance transmission
- Complies with ITU-T G.657.A1, TIA/EIA-598, and RoHS requirements
Applications
- Long-haul fiber optic backbone networks
- Metropolitan area networks (MAN)
- FTTH and FTTx backbone infrastructure
- Telecommunications carrier networks
- Data center interconnection
- Utility and broadband networks
- Outdoor campus networks
- High-capacity duct installations
FAQ
Q1. Why does this cable use 108-fiber ribbon stacks?
The 108-fiber ribbon design significantly increases fiber density while supporting mass fusion splicing, allowing faster installation and reduced labor costs for large-scale deployments.
Q2. What installation methods are supported?
The cable is suitable for duct, aerial, and direct burial installations, making it adaptable to a wide range of outdoor network environments.
Q3. What is the benefit of the SZ-stranded multi-tube design?
The SZ-stranded structure improves cable flexibility, reduces torsional stress during installation, and allows easier mid-span access for maintenance and branching.
Q4. Which fiber standard does the cable use?
The cable utilizes G.657.A1 bend-insensitive single-mode fiber, providing excellent bending performance while remaining fully compatible with G.652.D transmission systems.
Q5. Can the cable specifications be customized?
Yes. Fiber count, fiber type, cable markings, jacket material, reel length, and other construction details can be customized to meet specific project requirements.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
