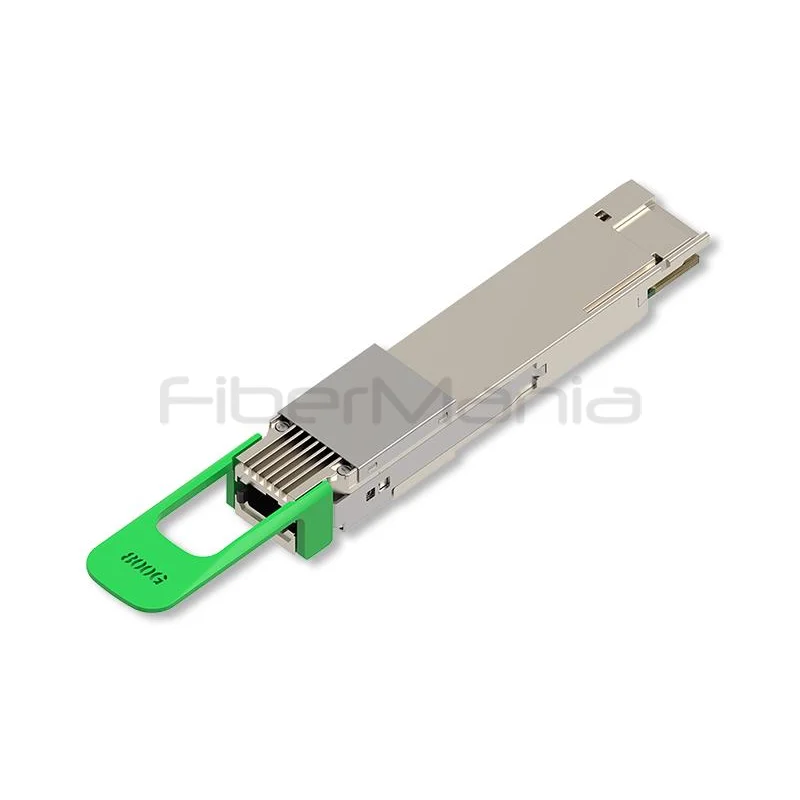

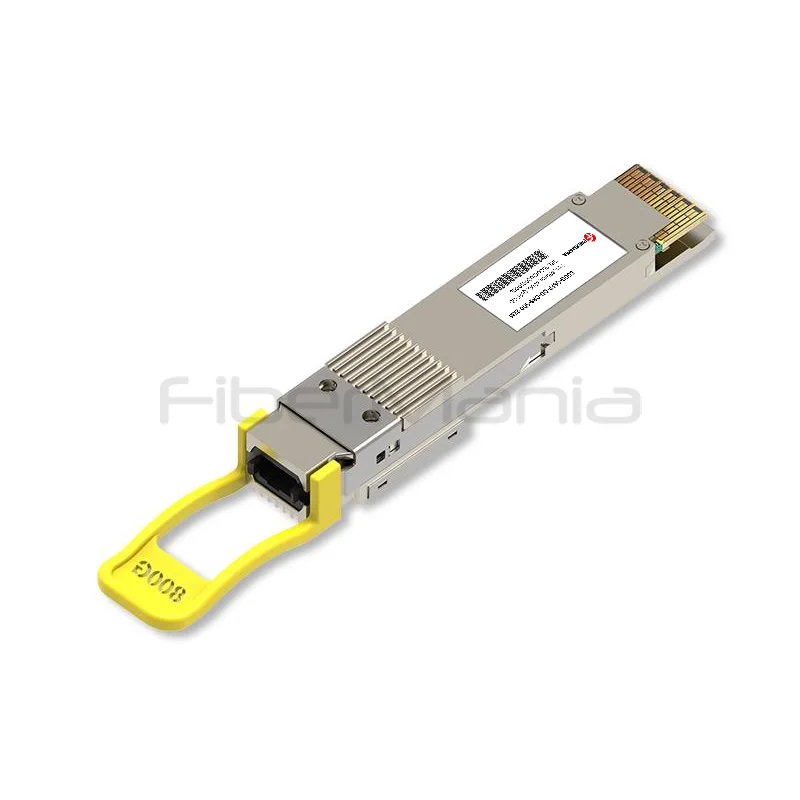

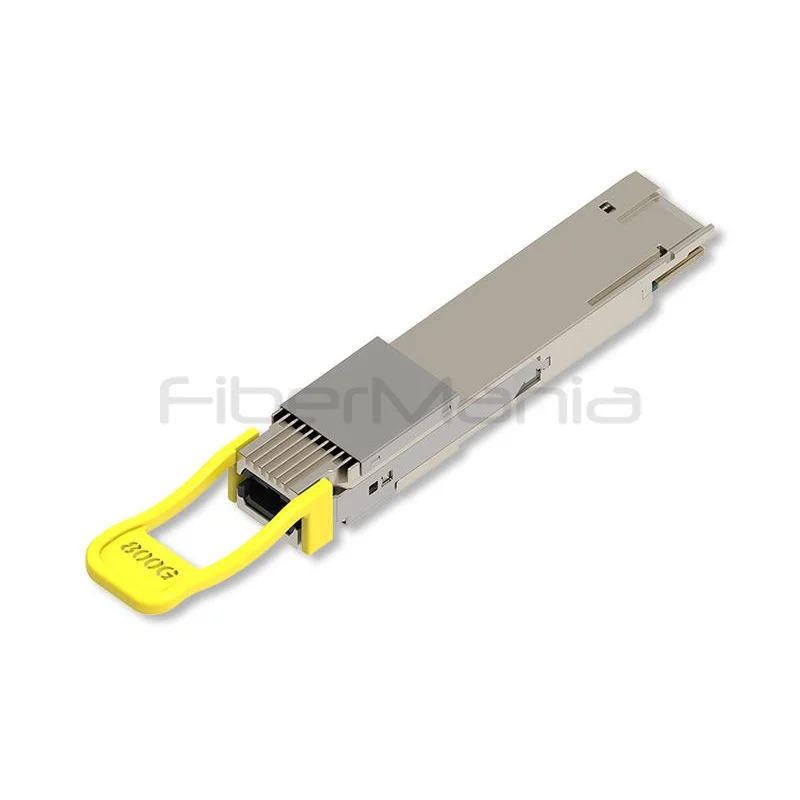

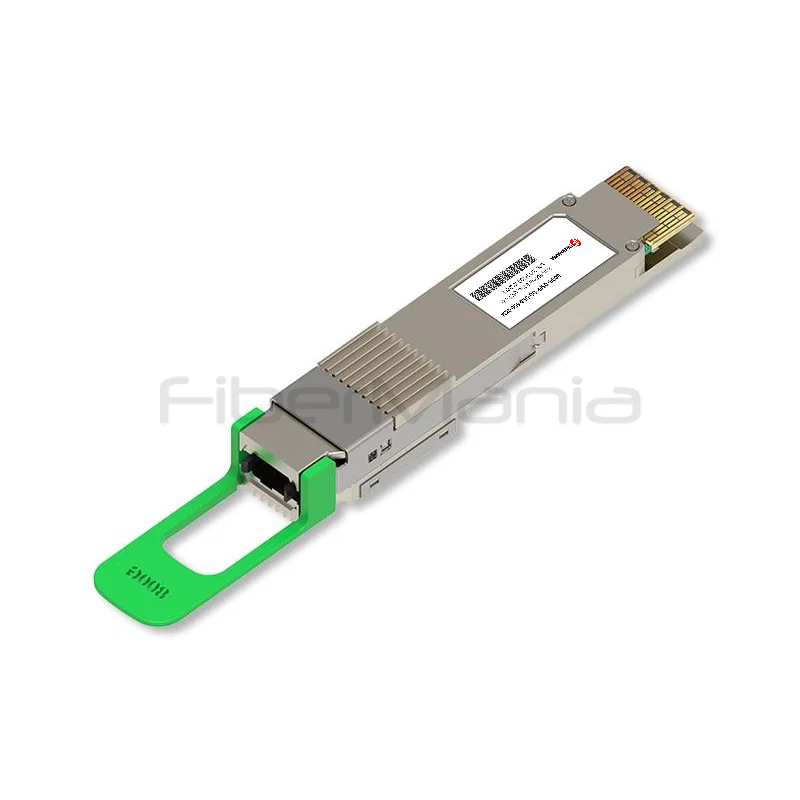

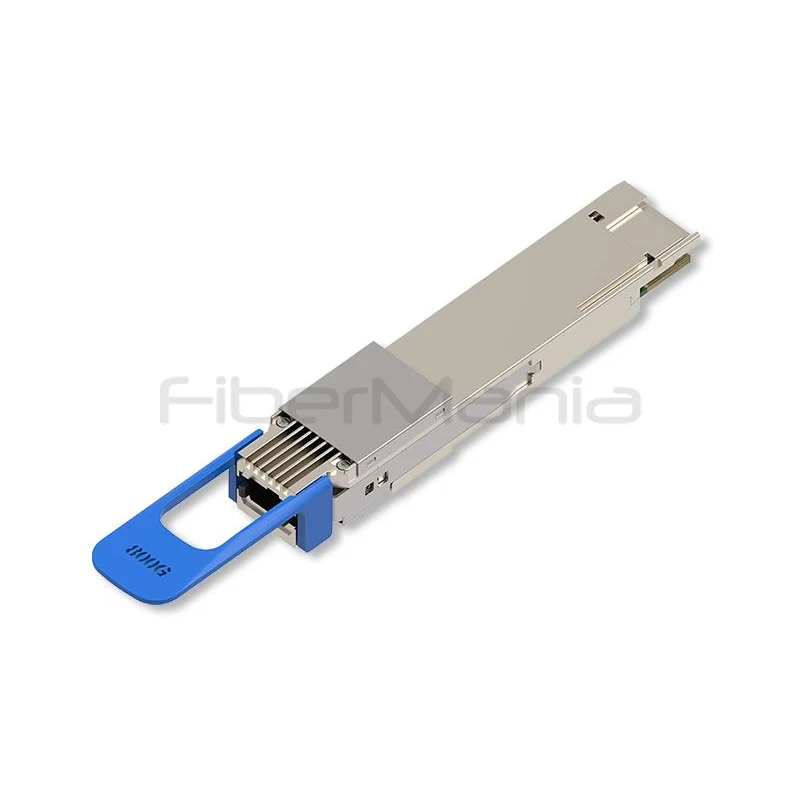

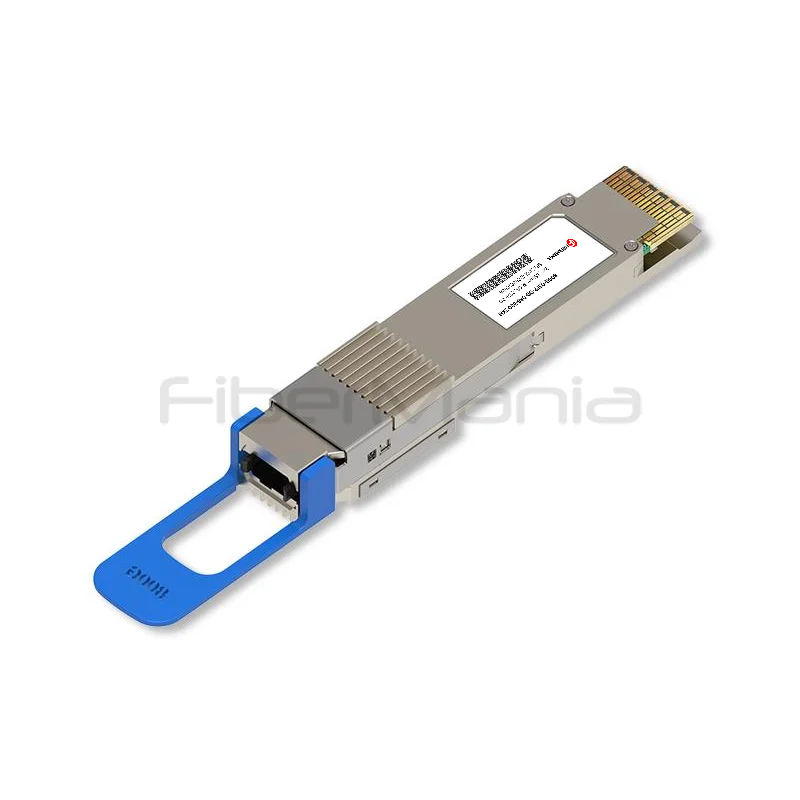

800G QSFP-DD DR8 Optical Transceiver 1310nm PAM4 MPO-16 APC 500m-2km
Categories:
Product Highlights:
- 800G QSFP-DD DR8 optical transceiver for AI and data center networks
- 8×100G PAM4 architecture with 850Gbps aggregate bit rate
- 1310nm single-mode transmission through MPO-16 APC
- 500m, 1km, and 2km reach options
- ≤16W power consumption with 800GAUI-8 retimed interface
Table of Contents
Description
The 800G QSFP-DD DR8 Optical Transceiver Module is a high-density parallel optical solution designed for next-generation 800GbE networks, AI clusters, and cloud data center infrastructure. Based on an 8×100G PAM4 architecture, it integrates eight 100G PAM4 EML transmitters and high-sensitivity PIN receivers to provide an aggregate data rate of 850Gbps over single-mode fiber. Operating at 1310nm and using an MPO-16 APC optical interface, the module is available in DR8 500m, DR8+ 1km, and DR8++ 2km reach configurations. Its QSFP-DD Type 2A hot-pluggable form factor, 800GAUI-8 retimed electrical interface, integrated digital management, and ≤16W power consumption make it well suited for high-density 800G Ethernet switches, AI computing networks, hyperscale cloud infrastructure, and large-scale data center deployments.
Specification
| Form Factor | QSFP-DD Type 2A Hot-Pluggable |
|---|---|
| Data Rate | 850Gbps Aggregate |
| Optical Standard | DR8 / DR8+ / DR8++ |
| Fiber Type | Single-Mode Fiber (SMF) |
| Reach Options | DR8: 500m / DR8+: 1km / DR8++: 2km |
| Wavelength | 1310nm |
| Optical Technology | PAM4 Parallel Optics |
| Modulation Format | PAM4 |
| Transmitter Type | 8 × 100G PAM4 EML |
| Receiver Type | PIN Receiver |
| Optical Connector | MPO-16 APC |
| Electrical Interface | 800GAUI-8 Retimed Interface |
| Digital Management | I2C Interface Supported |
| Power Supply | Single +3.3V |
| Maximum Power Consumption | ≤16W |
| Operating Temperature | 0°C to +70°C |
| Hot Plug Capability | Yes |
Features
- 800GbE optical transceiver with QSFP-DD Type 2A form factor
- 8×100G PAM4 parallel optical architecture
- Eight 100G PAM4 EML transmitters and high-sensitivity PIN receivers
- 850Gbps aggregate bit rate
- 1310nm wavelength operation over single-mode fiber
- MPO-16 APC optical interface for high-density connectivity
- Available in 500m, 1km, and 2km reach configurations
- 800GAUI-8 retimed electrical interface
- Integrated digital management and monitoring capabilities
- Hot-pluggable design for convenient installation and replacement
- Power consumption of ≤16W
- Optimized for high-density 800G Ethernet platforms
Applications
- 800GbE data center networks
- AI and GPU cluster interconnects
- Hyperscale cloud computing infrastructure
- High-performance computing (HPC) networks
- High-density Ethernet switching
- Short- to medium-reach data center interconnects
FAQ
What reach options are available for the 800G QSFP-DD DR8?
The module is available in three reach configurations: DR8 for up to 500m, DR8+ for up to 1km, and DR8++ for up to 2km over single-mode fiber.
What optical connector does the DR8 transceiver use?
The module uses an MPO-16 APC optical interface, which provides a compact, high-density connection for its eight parallel 100G optical lanes.
What is the electrical interface of this 800G transceiver?
The module uses an 800GAUI-8 retimed electrical interface, supporting eight 100G PAM4 electrical lanes for high-speed host connectivity.
Is the DR8 transceiver suitable for AI networking?
Yes. Its 800Gbps-class bandwidth, parallel PAM4 architecture, compact QSFP-DD form factor, and multiple reach options make it suitable for AI clusters, GPU interconnects, and high-performance data center networks.
What is the maximum power consumption?
The module has a maximum power consumption of ≤16W, providing an efficient solution for high-density 800G switch and computing platforms.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
