800G OSFP SR8 LPO Optical Transceiver 850nm PAM4 MPO-16 APC 100m
Categories:
Product Highlights:
- 800G OSFP SR8 LPO optical transceiver for AI networks
- DSP-free LPO architecture with ultra-low 4W power consumption
- Supports 16×100G PAM4 electrical lanes
- 850nm VCSEL transmission with MPO-16 APC interface
- Designed for low-latency, high-density data center applications
Table of Contents
Description

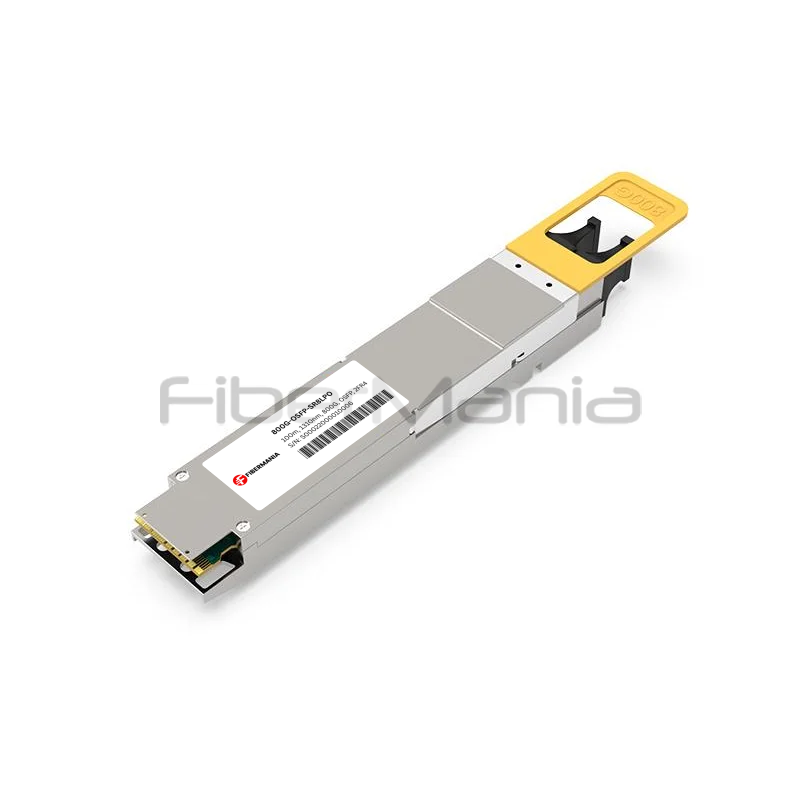

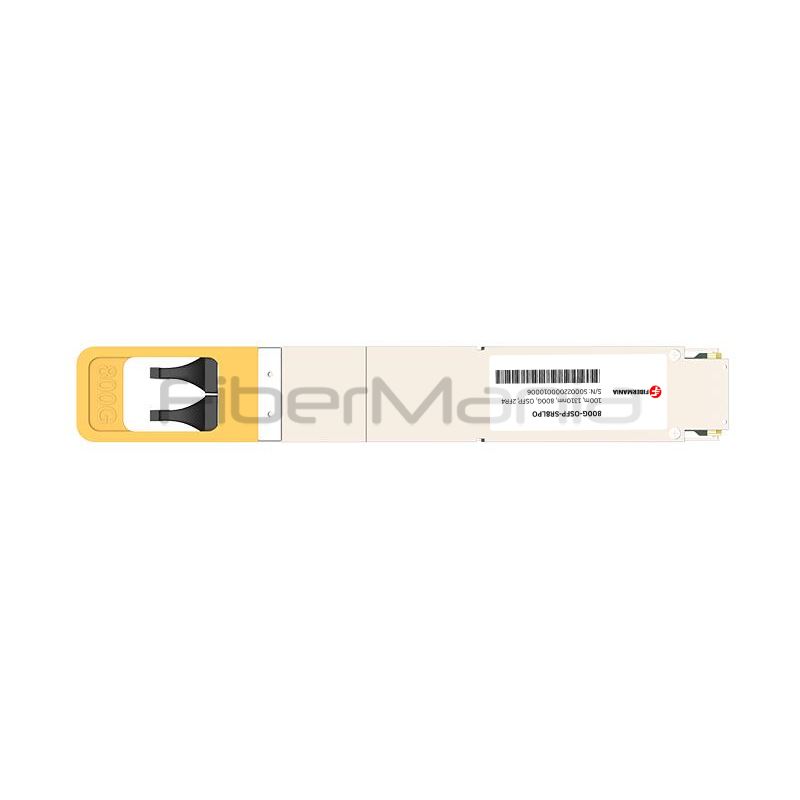

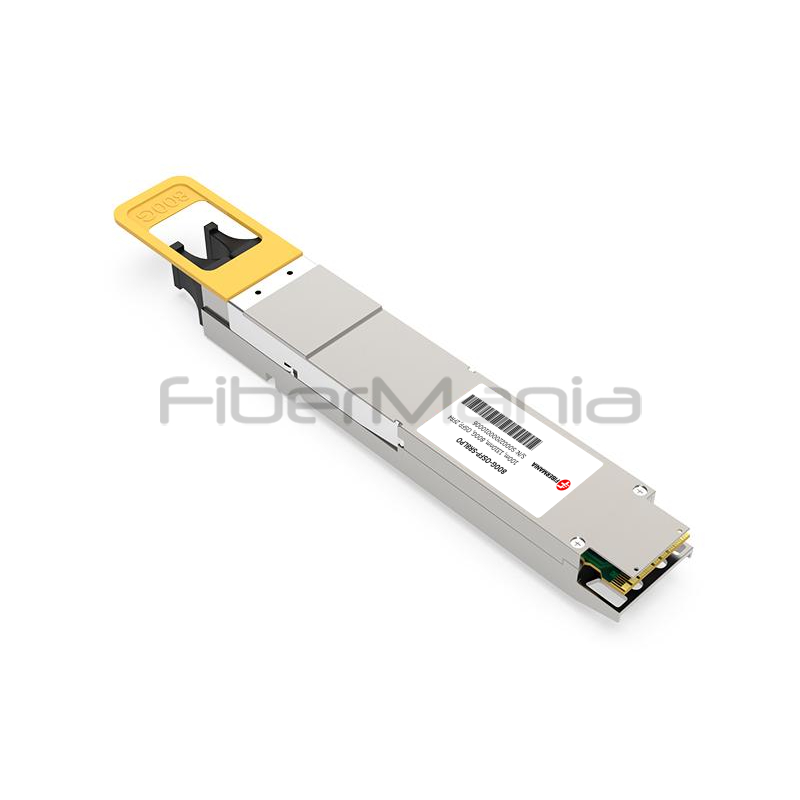

The 800G OSFP SR8 LPO Optical Transceiver is a low-power, high-performance optical module designed for next-generation 800GbE Ethernet, AI networking, and high-density data center applications. Based on Linear Pluggable Optics (LPO) technology, it removes traditional DSP and CDR components to reduce power consumption, latency, and system complexity. Featuring an 850nm VCSEL transmitter array and photodiode receiver array, the module supports 16×100G PAM4 electrical lanes and delivers 800Gbps optical connectivity over multimode fiber through an MPO-16 APC interface. Built with an OSFP Type 2 Flat Top form factor, it provides excellent thermal efficiency with power consumption as low as 4W, making it ideal for AI clusters, GPU networks, hyperscale cloud infrastructure, and next-generation Ethernet switching platforms.
Specification
| Form Factor | OSFP Type 2 Flat Top |
|---|---|
| Data Rate | 800Gbps |
| Optical Standard | SR8 LPO |
| Fiber Type | Multimode Fiber (MMF) |
| Wavelength | 850nm |
| Optical Engine | VCSEL Array + Photodiode Array |
| Optical Technology | Linear Pluggable Optics (LPO) |
| DSP / CDR | DSP-Free, CDR-Free |
| Modulation Format | PAM4 |
| Electrical Interface | 16 × 100G PAM4 Retimed 400GAUI-4 |
| Optical Connector | MPO-16 APC Receptacle |
| Management Interface | CMIS Rev 4.0 |
| Power Supply | Single +3.3V |
| Maximum Power Consumption | ≤4W |
| Operating Temperature | 0°C to +70°C |
| Hot Plug Capability | Yes |
Features
- 800Gbps aggregate data rate for advanced Ethernet applications
- LPO architecture without DSP and CDR components
- Ultra-low power consumption with a maximum of 4W
- Supports 16×100G PAM4 electrical interfaces
- 850nm VCSEL transmitter and photodiode receiver technology
- MPO-16 APC interface for high-density multimode fiber connectivity
- OSFP Type 2 Flat Top form factor for improved thermal management
- Compliant with OSFP MSA and CMIS Rev 4.0 standards
- Reduced signal latency for AI and high-performance computing networks
- Optimized for high-density switch and accelerator platforms
Applications
- AI and GPU cluster interconnects
- 800GbE data center networks
- Hyperscale cloud infrastructure
- High-performance computing (HPC) systems
- Next-generation Ethernet switches
- Low-latency optical networking applications
FAQ
What is LPO technology used in the 800G OSFP SR8 LPO transceiver?
LPO (Linear Pluggable Optics) technology removes DSP and CDR components, allowing direct electrical-to-optical conversion with lower power consumption, reduced latency, and improved energy efficiency.
What is the maximum power consumption of this 800G OSFP SR8 LPO module?
The module consumes a maximum of 4W, making it suitable for high-density AI networking systems where power efficiency and thermal management are critical.
What fiber interface does this optical transceiver use?
The 800G OSFP SR8 LPO transceiver uses an MPO-16 APC optical connector designed for parallel multimode fiber transmission.
Is this module suitable for AI data center applications?
Yes. With ultra-low power consumption, low latency LPO architecture, and 800Gbps bandwidth, it is optimized for AI clusters, GPU interconnects, and hyperscale data center networks.
What standards does this 800G LPO transceiver comply with?
The module complies with OSFP MSA and CMIS Rev 4.0 standards, ensuring compatibility with advanced Ethernet switching platforms.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
