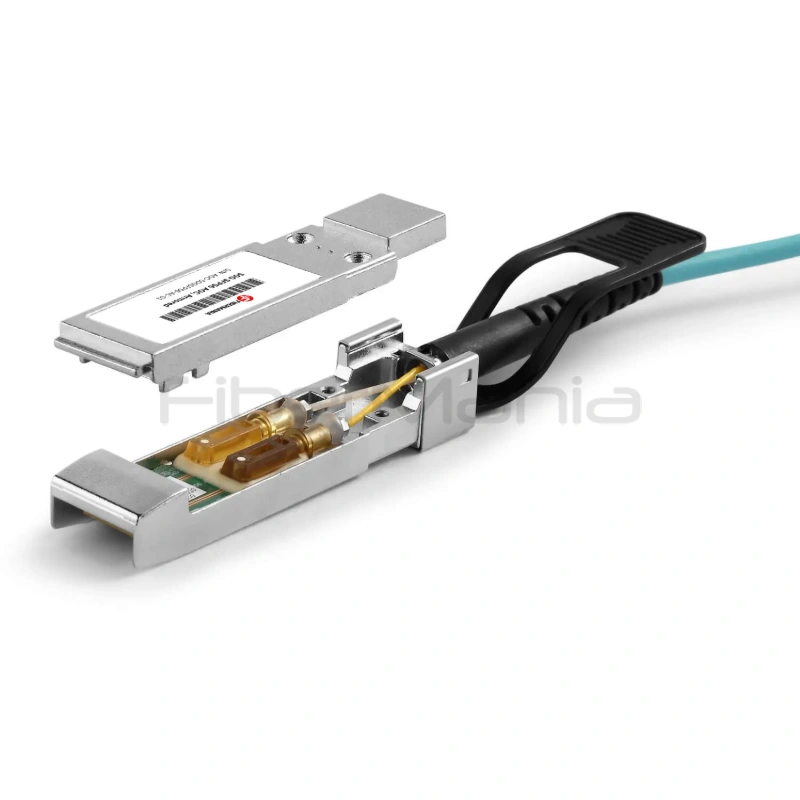

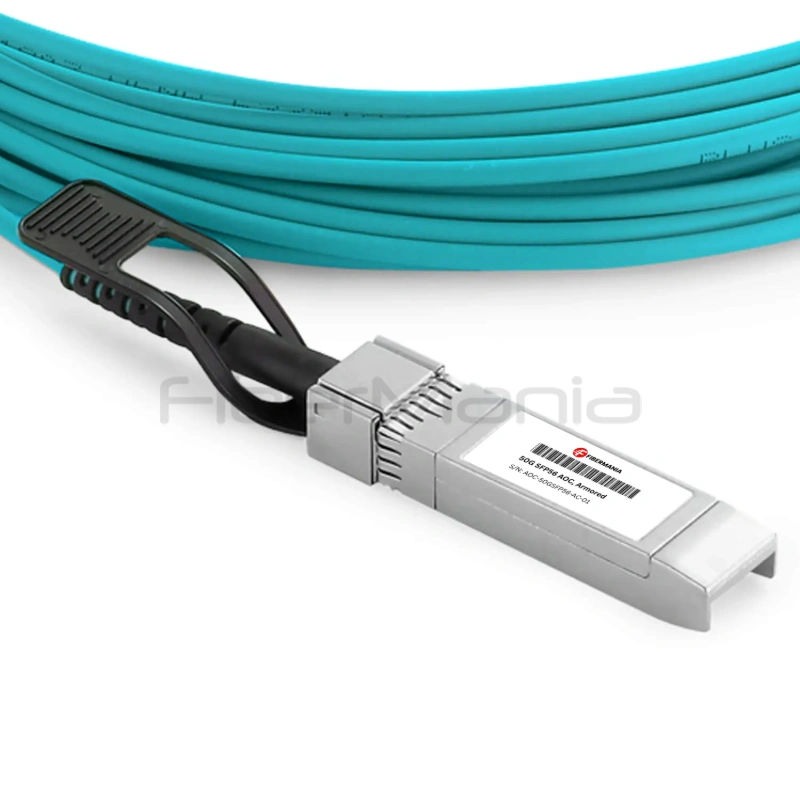

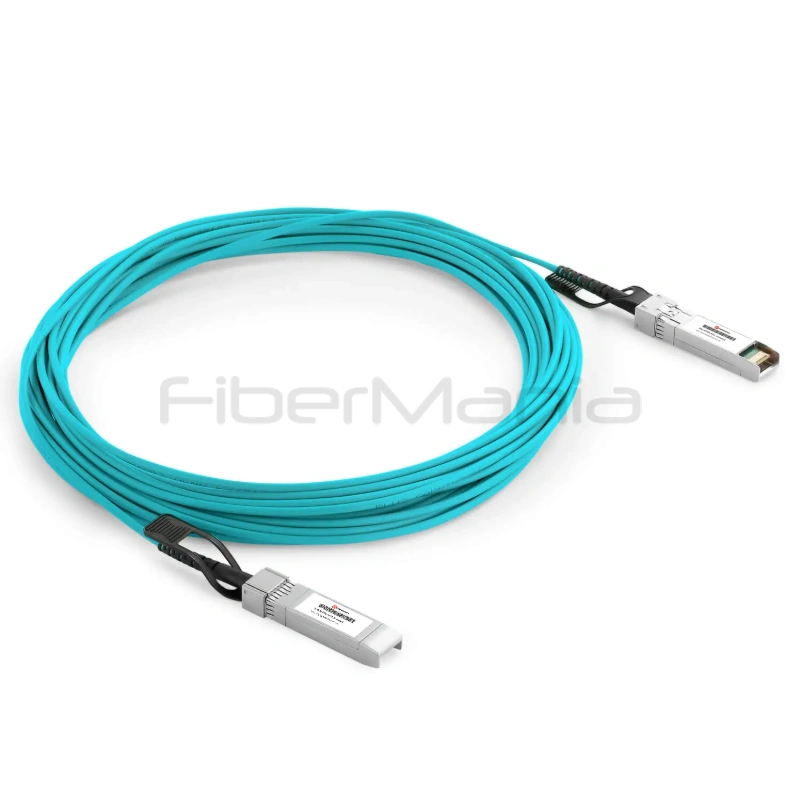

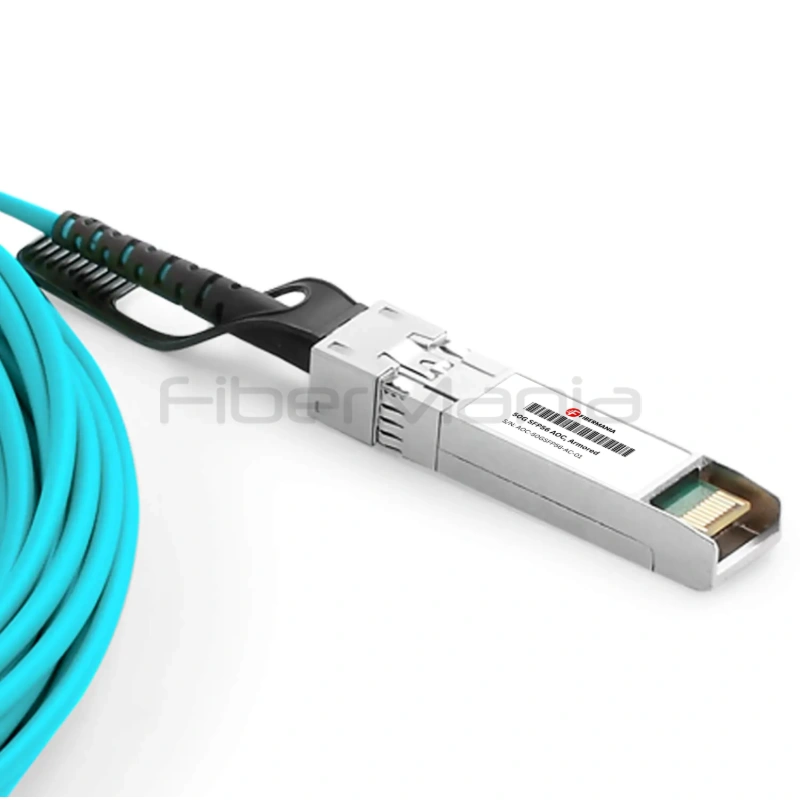

50G SFP56 Armored Active Optical Cable (AOC)

Features

• SFP56 connectors on both ends
• Supports data rates up to 53.125Gbps
• 850nm VCSEL transmitters and PIN receivers
• OM3 multimode fiber
• Integrated CDR on transmitter and receiver sides
• Supports PAM4 signal transmission
• Armored construction for enhanced mechanical protection
• LSZH cable jacket
• Hot-pluggable SFP56 form factor
• Direct-attach design for simplified network installation

Applications

• 50GbE data center networks
• InfiniBand EDR connections
• Server-to-switch interconnects
• High-density rack connectivity
• Data center interconnects
• Short- and medium-distance optical links
• High-performance computing networks

FAQ

What data rate does this SFP56 AOC support?

The cable supports data rates up to 53.125Gbps over a single optical channel, making it suitable for 50GbE and InfiniBand EDR applications.

What type of fiber and optical components are used?

It uses OM3 multimode fiber with 850nm VCSEL transmitters and PIN receivers for high-speed short- and medium-distance optical transmission.

What is the advantage of the armored construction?

The armored design provides additional mechanical protection to the internal fiber, making the cable better suited for installations where enhanced cable durability is required.

Does the cable support PAM4 transmission?

Yes. The cable is designed for high-speed PAM4 transmission, with integrated CDR circuitry on both the transmitter and receiver sides to help maintain signal integrity.

Why use an AOC instead of separate transceivers and fiber cables?

An AOC integrates the optical modules and fiber cable into a single factory-terminated assembly, simplifying installation and providing a convenient solution for direct connections between compatible SFP56 ports.
