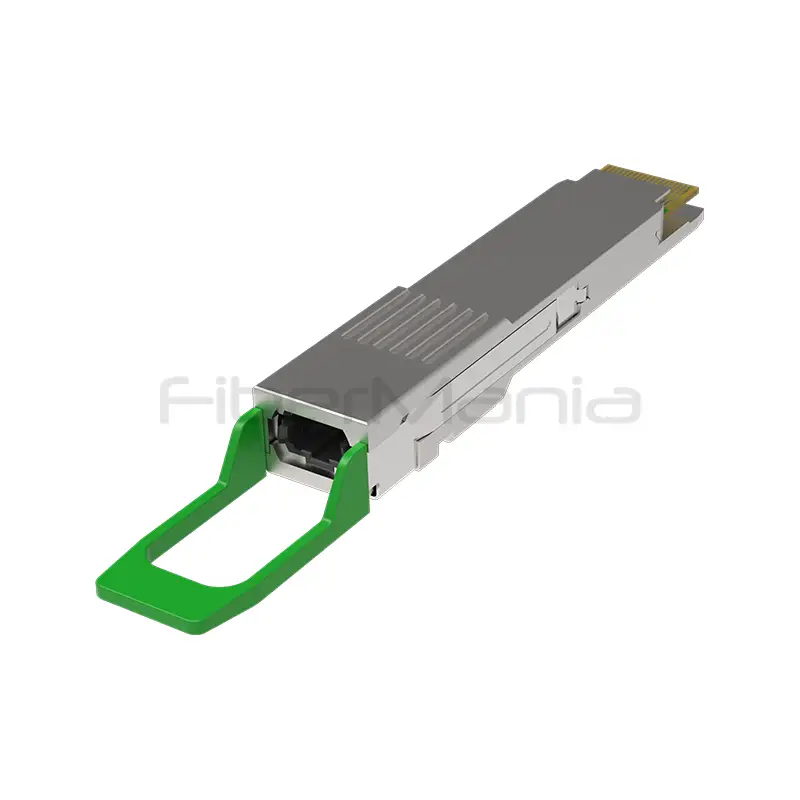

400G QSFP-DD DR4 Optical Transceiver 1310nm 500m SMF MPO-12 PAM4
Categories:
Product Highlights:
-
High-density 400G QSFP-DD DR4 transceiver designed for 500m single-mode fiber transmission using 1310nm PAM4 technology.
-
Fully compliant with IEEE 802.3bs and QSFP-DD MSA standards, featuring an MPO-12 interface and comprehensive DDM performance monitoring.
-
Optimized for high-speed data center interconnects and 4x100G breakout applications with a focus on power efficiency and thermal stability.
Table of Contents
Description
The FiberMania 400G QSFP-DD DR4 optical transceiver is a high-density, hot-pluggable module specifically engineered for high-speed 400 Gigabit Ethernet connectivity within modern data centers. Utilizing advanced 1310nm Silicon Photonics or EML laser technology, this module delivers robust performance over single-mode fiber (SMF) for distances up to 500 meters. It effectively bridges the gap between high-bandwidth requirements and power efficiency, making it an ideal choice for leaf-to-spine leaf architecture and large-scale cloud networking deployments.
This transceiver operates using 8 lanes of 50G PAM4 modulated electrical signals, aggregating to a total bandwidth of 400Gbps. It is fully compliant with the QSFP-DD Multi-Source Agreement (MSA) and IEEE 802.3bs standards, ensuring seamless interoperability with a wide range of networking equipment. With its integrated Digital Diagnostic Monitoring (DDM) and adherence to CMIS 4.0, network administrators can monitor real-time performance metrics such as temperature, voltage, and optical power to ensure maximum uptime.
Specification
| Form Factor | QSFP-DD Type 2 |
|---|---|
| Data Rate | 425 Gbps |
| Wavelength | 1310 nm |
| Fiber Type | Single-mode Fiber (SMF) |
| Max Distance | 500 m |
| Optical Connector | MPO-12 APC |
| Electrical Interface | 400GAUI-8 (8 Lanes) |
| Modulation | PAM4 |
| Power Consumption | Max 12W |
| Supply Voltage | 3.3V |
| DDM / DOM | Supported |
| Operating Temperature | 0°C to 70°C |
| Compliance | IEEE 802.3bs, QSFP-DD MSA, CMIS 4.0 |
Features
-
Aggregate data rate of 400 Gbps via 8x50G PAM4 electrical interface
-
Compliant with 400GBASE-DR4 optical specifications per IEEE 802.3bs
-
Reliable transmission up to 500m over G.652 single-mode fiber
-
MPO-12 APC connector interface for high-density fiber termination
-
Supports 3dB channel insertion loss for flexible link budgets
-
QSFP-DD MSA HW Rev 5.0 Type 2 housing for optimal thermal dissipation
-
Integrated Digital Diagnostic Monitoring (DDM) for real-time status tracking
-
Low power consumption with a maximum of 12W
-
Single +3.3V power supply and hot-pluggable form factor
-
Fully RoHS compliant and Class 1 Laser safety certified
Application
-
400G Ethernet data center internal interconnects
-
Cloud computing and hyperscale networking environments
-
High-bandwidth backbone links for enterprise networks
-
4x100G breakout applications to 100GBASE-DR1 interfaces
-
High-performance computing (HPC) and storage area networks
Q&A
Q: Can this 400G DR4 module be used for breakout connections? A: Yes, this module is specifically designed to support 4x100G breakout applications. Using an MPO-12 to 4xLC single-mode breakout cable, you can connect one 400G port to four 100G DR1 ports on legacy or lower-speed switches.
Q: What are the cooling requirements for a 12W QSFP-DD module? A: Our QSFP-DD DR4 is designed with a Type 2 housing, which includes integrated fins or optimized surfaces for improved heat dissipation. It operates reliably within a standard 0 to 70°C case temperature range provided there is adequate airflow within the switch chassis.
Q: Does FiberMania offer customization for specific vendor compatibility? A: Absolutely. As a leading OEM/ODM partner, FiberMania provides professional EEPROM coding services. We can write custom compatibility code for all major switch and router brands to ensure the modules are recognized and function perfectly without “unsupported transceiver” warnings.
Q: How do you ensure the quality of these high-speed modules during production? A: We follow a rigorous testing protocol that includes automated optical testing, bit error rate (BER) verification, and real-switch interoperability testing. As an OEM-focused manufacturer, we maintain high standards to ensure our products meet your private label brand’s reputation for reliability.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
