400G QSFP-DD FR4 Optical Transceiver CWDM 2km SMF LC Duplex PAM4
Categories:
Product Highlights:
-
Advanced 400G QSFP-DD FR4 transceiver utilizing 4-lane CWDM technology for 2km transmission over single-mode fiber via LC duplex connectors.
-
Compliant with QSFP-DD MSA and 400G FR4 specifications, featuring PAM4 modulation and DDM for high-performance data center networking.
-
Engineered for maximum fiber efficiency and scalability, providing a robust solution for 400G Ethernet and cloud infrastructure deployments.
Table of Contents
Description

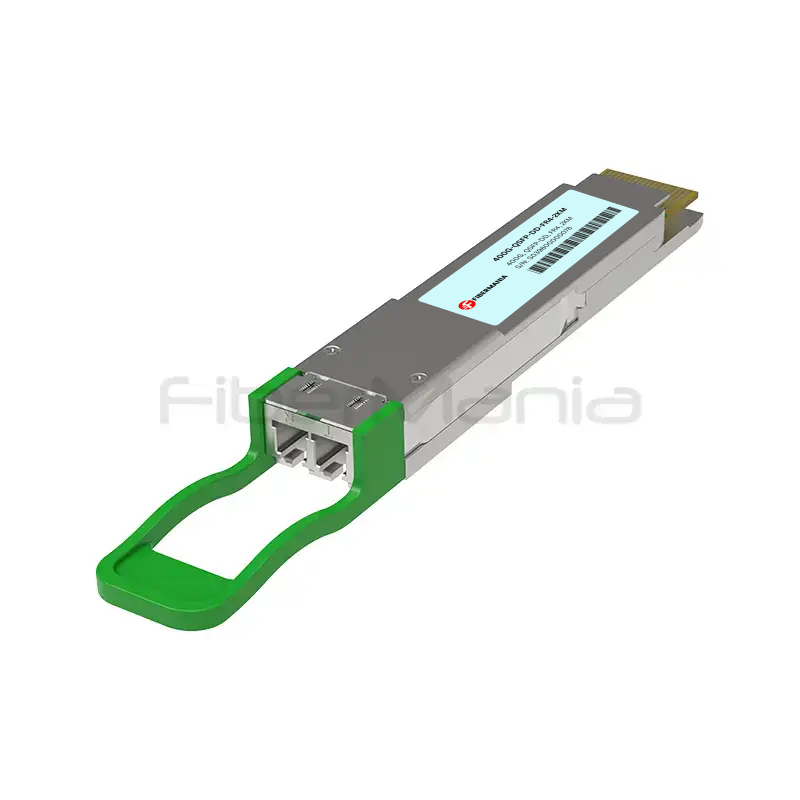

The FiberMania 400G QSFP-DD FR4 optical transceiver is a sophisticated solution designed for high-density 400 Gigabit Ethernet links over single-mode fiber. This module employs a 4-lane CWDM (Coarse Wavelength Division Multiplexing) optical design, utilizing integrated MUX and DEMUX components to transmit data over four distinct wavelengths. By leveraging high-performance CWDM EML lasers and PAM4 modulation, it achieves a reliable 2km transmission distance, making it the preferred choice for data center interconnects that require a balance between reach and fiber efficiency.
This transceiver is fully compliant with the QSFP-DD Multi-Source Agreement (MSA) and the 100G Lambda MSA, ensuring broad interoperability with next-generation switching platforms. It features an 8×53.125Gb/s electrical interface (400GAUI-8) and uses a standard LC duplex connector, allowing operators to utilize existing single-mode fiber infrastructure. With its built-in Digital Diagnostic Monitoring (DDM) and optimized power management, the module provides a robust, scalable, and energy-efficient pathway for cloud service providers and enterprise networks to migrate to 400G architectures.
Specification
| Form Factor | QSFP-DD |
|---|---|
| Data Rate | 425 Gbps |
| Wavelength | CWDM4 (1271, 1291, 1311, 1331nm) |
| Fiber Type | Single-mode Fiber (SMF) |
| Max Distance | 2 km (with FEC) |
| Optical Connector | LC Duplex |
| Electrical Interface | 400GAUI-8 |
| Modulation | PAM4 |
| Power Consumption | Max 12W |
| Supply Voltage | 3.3V |
| DDM Support | Yes |
| Operating Temperature | 0°C to 70°C |
| Compliance | QSFP-DD MSA, 100G Lambda MSA, RoHS |
Features
-
Aggregate bit rate support up to 425 Gbps
-
4-lane CWDM MUX/DEMUX design on 1271, 1291, 1311, and 1331nm
-
Transmission distance up to 2km over G.652 single-mode fiber with FEC
-
8×53.125Gb/s PAM4 electrical interface (400GAUI-8)
-
High-performance CWDM EML lasers and PIN receiver array
-
LC duplex connector interface for standard SMF cabling
-
Hot-pluggable QSFP-DD MSA compliant form factor
-
Maximum power consumption of 12W
-
Single +3.3V power supply operation
-
Integrated DDM functions for real-time monitoring of optical and electrical parameters
-
RoHS compliant and lead-free design
Application
-
400G Ethernet data center interconnects (DCI)
-
High-bandwidth campus and enterprise core networks
-
5G wireless fronthaul and midhaul transport
-
Cloud computing and hyperscale infrastructure backbone
-
Point-to-point networking across metropolitan areas
Q&A
Q: What is the main advantage of the FR4 module compared to the DR4 module? A: The FR4 module uses CWDM technology to multiplex four wavelengths onto a single pair of fibers (LC duplex), whereas DR4 requires eight fibers (MPO-12). This makes FR4 much more fiber-efficient for 2km reaches, as it saves significant cabling infrastructure costs.
Q: Is Forward Error Correction (FEC) required for this transceiver to reach 2km? A: Yes, the 2km transmission distance is achieved using host-side FEC (Forward Error Correction). This is standard for 400G PAM4 optics to ensure a bit error rate (BER) that meets networking standards.
Q: Can FiberMania customize the compatibility for different switch vendors like Cisco, Arista, or Juniper? A: Yes. FiberMania specializes in OEM services where we provide custom-coded EEPROMs to ensure 100% compatibility with specific host platforms. We can also provide custom labeling and packaging to fit your brand’s requirements.
Q: How does FiberMania handle quality control for high-speed 400G optics? A: Each module undergoes rigorous testing, including eye-diagram analysis, BER testing, and thermal cycling. As an OEM manufacturer, we prioritize consistency to ensure that every unit delivered under your brand meets the highest performance benchmarks.
