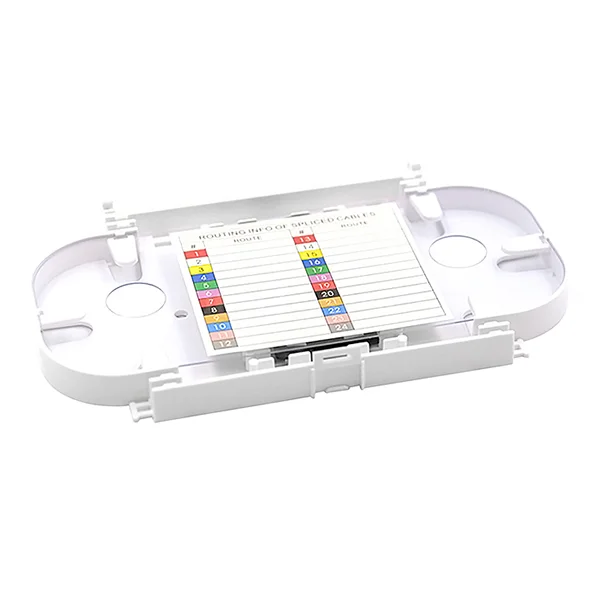

24 Fibers Fiber Optic Spice Tray, Plastic, 180x100x10mm
Categories:
Product Highlights:
-
24 Fibers Fiber Optic Splice Tray made of durable ABS plastic for reliable fiber management.
-
Compact design with cover plate ensures proper fiber bend radius and protection.
-
Ideal for fiber patch panels, termination boxes, and distribution boxes.
-
FiberMania provides OEM/ODM services for custom sizes, colors, and labeling.
Table of Contents
Description
The 24 Fibers Fiber Optic Splice Tray is designed to provide a secure and organized location for storing and protecting fiber optic cables and splices. Constructed from high-quality ABS plastic, it offers durability and reliable protection for optical fibers in various network installations. The tray accommodates fiber splice protectors and manages excess fiber neatly, ensuring a safe and stable environment for fiber connections.
Ideal for use inside fiber enclosures, termination boxes, and distribution panels, this tray allows fibers from different cables to be fusion spliced or connected to pigtails for seamless network integration. Its compact design maximizes fiber management efficiency while maintaining the required bend radius to prevent signal loss and fiber damage.
Specification
| Port / Core Capacity | 24 Fibers |
|---|---|
| Adapter Type | N/A |
| Housing Material | Plastic |
| Fiber Type | Single Mode / Multimode |
| Intended Use | Indoor |
| Dimensions (L×W×H mm) | 180×100×10 |
| Features | Organizes fiber splices, compact design, protects fibers |
| Applications | Fiber splicing and management in patch panels or enclosures |
| Customization | OEM labeling or color options available |
| Standards | RoHS compliant, compatible with standard fibers |
| Compatibility | Works with standard fiber optic pigtails and patch cords |
| Installation / Maintenance | Fits splice enclosures; maintain proper fiber routing and bend radius |
Features
-
Supports 24 fiber connections
-
Includes cover plate for protection after fusion
-
Flexible design for splice storage and fiber organization
-
Maintains proper fiber curvature radius to prevent signal degradation
-
Compliant with IEC and RoHS standards
Application
-
Fiber Optic Patch Panels
-
Fiber Termination Boxes
-
Fiber Distribution Boxes
Q&A
Q: What type of fibers can be used with this tray?
A: Compatible with both single-mode and multimode fibers.
Q: Can the tray be stacked in larger enclosures?
A: Yes, it fits standard fiber enclosures and allows multiple trays in one box.
Q: What is the maximum operating temperature?
A: -40°C to +55°C
Q: How durable is the tray?
A: Rated for up to 1000 insertion/removal cycles.
Q: Does FiberMania provide custom labeling?
A: Yes, OEM/ODM services for labeling and color coding are available.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
