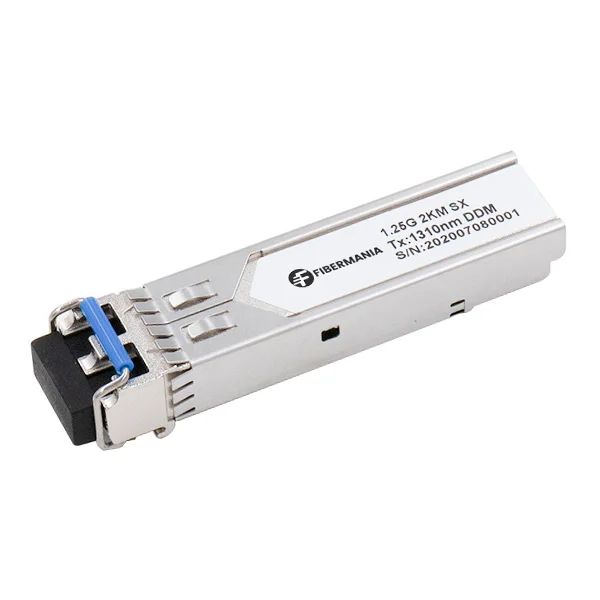

1.25Gbps SFP Transceiver, SX+, 2KM, Multimode 1310nm
Categories:
Product Highlights:
-
1.25Gbps SFP SX+ transceiver with 1310nm FP transmitter and PIN receiver, supporting multimode fiber links up to 2km.
-
Duplex LC interface, hot-pluggable SFP form factor with low power consumption and EMI protection.
-
Ideal for Gigabit Ethernet, 1x Fibre Channel, and short-reach enterprise or data center applications.
-
FiberMania provides OEM/ODM customization
Table of Contents
Description
The 1.25Gbps SFP SX+ Transceiver is designed for short to medium reach gigabit networks over multimode fiber. Operating at 1310nm, this module supports data transmission up to 1.25Gb/s over distances up to 2 kilometers, making it ideal for Gigabit Ethernet and 1x Fibre Channel applications in enterprise networks, data centers, and telecom systems.
Equipped with a duplex LC connector and a FP laser transmitter with a PIN photodiode receiver, the transceiver delivers reliable optical performance with low power consumption. The hot-pluggable SFP form factor ensures easy integration into switches, routers, and other network equipment. Optional commercial or industrial temperature ranges enable deployment in standard or harsh environmental conditions.
With a metal enclosure for EMI protection, RoHS compliance, and a single +3.3V power supply, this SFP module combines energy efficiency, durability, and industry-standard compatibility for cost-effective network deployment.
Specification
| Data Rate | 1.25Gbps |
|---|---|
| Wavelength | 1550nm |
| Fiber Type | Single Mode (SMF) |
| Transmission Distance | 120KM |
| Connector Type | Duplex LC |
| Compliance | SFP MSA, DDM, Class I laser, RoHS |
| Power Supply | ! |
| Temperature Range | 0°C to +70°C (Std) |
| Features | Hot-pluggable, DDM |
Features
-
Supports up to 1.25Gb/s data links
-
Duplex LC optical connector
-
Hot-pluggable SFP footprint
-
1310nm FP laser transmitter and PIN receiver
-
Transmission distance up to 2km on 50/125µm MMF
-
Metal enclosure for EMI protection
-
Single +3.3V power supply
-
Low power dissipation: <800mW (0~70°C), <1000mW (-40~85°C)
-
RoHS compliant and lead-free
-
Commercial and industrial operating temperature options
-
SFP MSA SFF-8074i compliant
Application
-
Gigabit Ethernet (1.25Gb/s)
-
1x Fibre Channel networks
-
Enterprise campus network interconnects
-
Data center short-reach links
-
Telecom network aggregation
Additional
- Product Type: Transceiver Module
- Form Factor: SFP
- Data Rate (max): Up to 1.25Gb/s
- Distance (max): 2KM
- Transmitter: 1310nm FP
- Receiver: PIN
- Digital Diagnostic: Yes/No
- Connector: Duplex LC
- Cable Type: MMF
- Wavelength: 1310nm
- Operating Temperature: COM/EXT/IND
- Up to 1.25Gb/s data links
- Duplex LC connector
- Hot-pluggable SFP footprint
- 1310nm FP laser transmitter
- RoHS compliant and Lead Free
- Up to 2km on 50/125um MMF
- Metal enclosure for lower EMI
- Single + 3.3V power supply
- Low Power dissipation < 800mW (0~70°C),<1000mW (-40~85°C)
- Commercial and industrial operating temperature optional
- SFP MSA SFF 8074i Compliant
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
