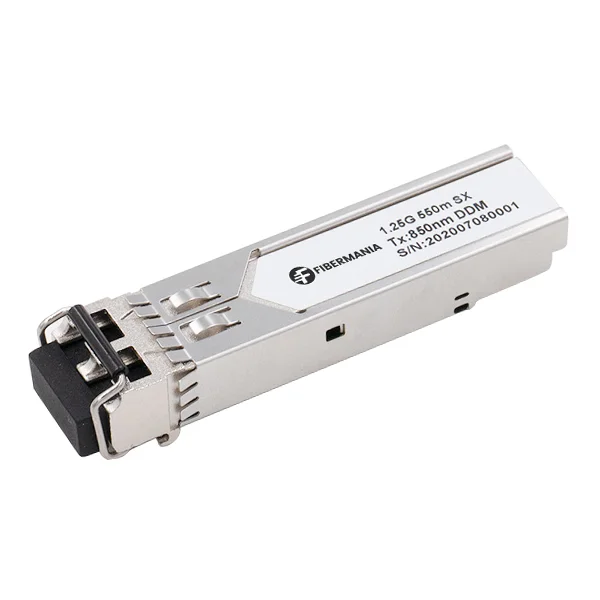

1.25Gbps SFP Transceiver, SX, 550Meters, 850nm
Categories:
Product Highlights:
-
1.25Gbps SFP SX transceiver with 850nm VCSEL transmitter and PIN receiver, supporting multimode fiber links up to 550m.
-
Duplex LC interface, hot-pluggable SFP form factor with digital diagnostics and low power consumption.
-
Ideal for Gigabit Ethernet, Fiber Channel, and short-reach optical networks.
-
FiberMania provides OEM/ODM customization and private-label manufacturing
Table of Contents
Description
The 1.25Gbps SFP SX Transceiver is a high-performance, cost-effective optical module designed for short-reach gigabit networks over multimode fiber (MMF). Operating at 850nm, it supports data transmission up to 1.25Gbps over distances up to 550 meters, making it ideal for Gigabit Ethernet, Fiber Channel, and other optical network applications.
The module integrates a VCSEL laser transmitter, a PIN photodiode receiver with a trans-impedance amplifier (TIA), and an MCU control unit. Digital diagnostics monitoring enables real-time access to parameters such as optical power, temperature, and supply voltage. All modules comply with Class I laser safety standards for secure and reliable operation.
With a duplex LC connector, hot-pluggable SFP form factor, and a single +3.3V power supply, the module can be easily integrated into switches, routers, and server backplanes. Extended temperature versions (-20°C to +85°C) are available for deployment in harsh environmental conditions.
Specification
| Data Rate | 1.25Gbps |
|---|---|
| Wavelength | 850nm |
| Fiber Type | Multimode Fiber (MMF) |
| Transmission Distance | 50/125µm MMF: up to 550m 62.5/125µm MMF: up to 300m |
| Connector Type | Duplex LC |
| Compliance | SFP MSA, SFF-8472, Class I laser safety, RoHS compliant |
| Temperature Range | Standard: 0°C to +70°C Extended: -20°C to +85°C |
Features
-
Data rate operation: 1.25Gbps
-
850nm VCSEL laser transmitter and PIN photodiode receiver
-
Transmission distance up to 550m on 50/125µm MMF, 300m on 62.5/125µm MMF
-
Duplex LC optical connector
-
SFP MSA and SFF-8472 compliant
-
Digital Diagnostic Monitoring (internal or external calibration)
-
RoHS compliant and lead-free
-
Single +3.3V power supply
-
Operating case temperature: 0°C to +70°C (Standard), -20°C to +85°C (Extended)
-
Hot-pluggable SFP form factor
Application
-
Gigabit Ethernet networks
-
1x Fibre Channel links
-
Switch-to-switch interconnects
-
Router/server interfaces
-
Switched backplane applications
-
Other optical transmission systems
FAQ
Q: What is the maximum transmission distance for this SFP SX module?
A: Up to 550 meters on 50/125µm MMF and 300 meters on 62.5/125µm MMF.
Q: Can it operate in extended temperature environments?
A: Yes, optional extended temperature versions are available (-20°C to +85°C).
Q: Is this module hot-pluggable?
A: Yes, it can be inserted or removed without shutting down network equipment.
Q: What type of fiber connector does it use?
A: Duplex LC connector.
Q: Can FiberMania provide OEM/ODM or private-label solutions?
A: Yes, we offer full customization, labeling, and private-label manufacturing services.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
