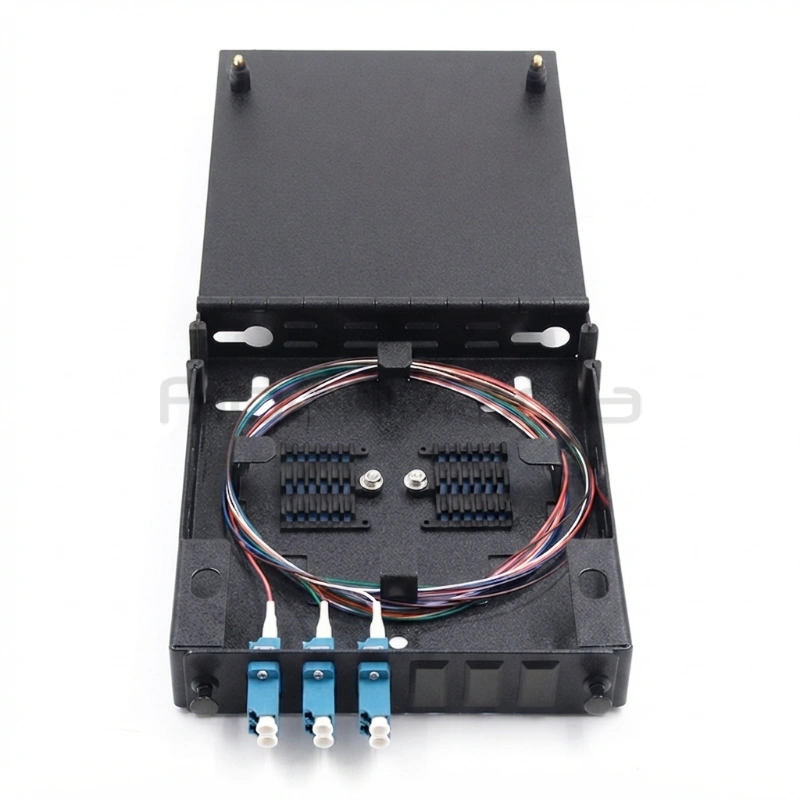

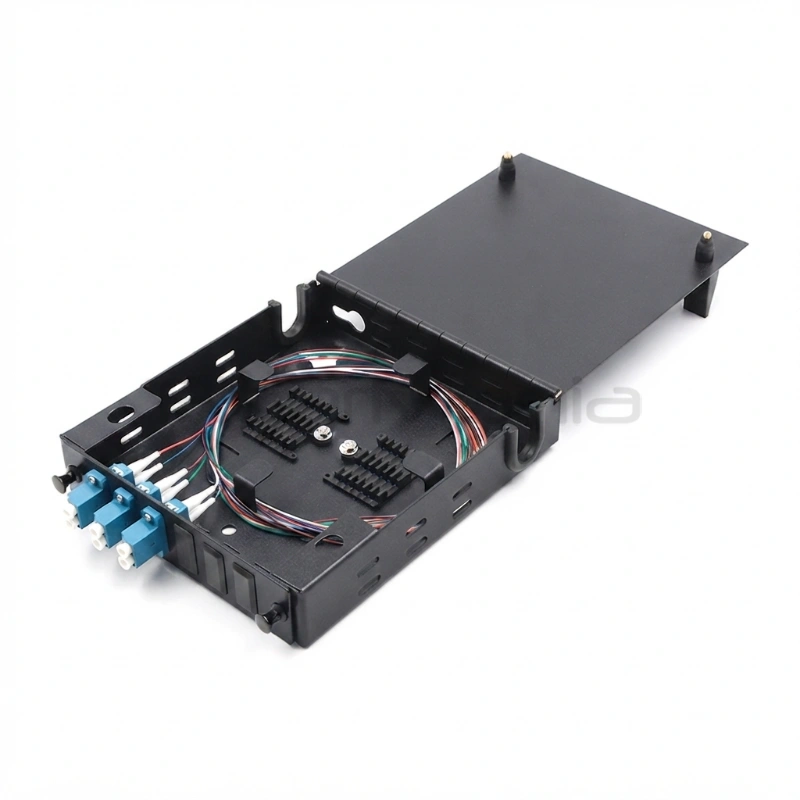

Wall Mount Fiber Enclosure with 3 DLC Pigtails and 3 Adapter Ports
Categories:
Product Highlights:
- Compact wall-mount fiber enclosure with integrated splicing
- Three pre-installed DLC pigtails
- Three reserved adapter positions
- Optimized internal layout with 13 mm forward-positioned splice module
- Durable steel construction for fiber protection and management
Table of Contents
Description
This wall-mount fiber optic enclosure is designed for compact fiber termination, splicing, and distribution in FTTH, telecom, enterprise, and other fiber network applications. It features a dedicated splice module, three pre-installed DLC pigtails, and three reserved adapter ports for flexible connectorized termination. The steel enclosure provides a durable and protected structure for fiber components while maintaining organized cable routing and fiber management. Its optimized internal layout positions the splice module approximately 13 mm forward, creating additional usable space around the splicing area and improving the overall arrangement of fiber components within the enclosure.
Specification
| Splicing Module | Integrated |
|---|---|
| DLC Pigtails | 3 Pre-installed DLC Pigtails |
| Adapter Positions | 3 Reserved Adapter Positions |
| Internal Layout | Optimized splice module position, approximately 13 mm forward |
| Mounting | Wall Mount |
| Dimensions (H × W × D) | 290 × 360 × 105 mm |
| Enclosure Material | 16 Gauge Steel |
| Surface Finish | Electrostatic Polyester Powder Coat Paint |
Features
- Wall-mount design for compact fiber termination and distribution
- Three pre-installed DLC pigtails for convenient fiber termination
- Three reserved adapter ports for flexible configuration
- Integrated splice module for organized fiber splicing
- Optimized internal layout with the splice module positioned approximately 13 mm forward
- Steel enclosure provides durable protection for internal fiber components
- Supports organized fiber routing and management
- Suitable for FTTH, telecom, enterprise, and fiber distribution applications
Applications
- FTTH fiber termination and distribution
- Telecom network fiber management
- Enterprise fiber optic networks
- Fiber splicing and connectorized termination
- Wall-mounted fiber distribution points
- Compact fiber infrastructure and equipment rooms
FAQ
What is included with the enclosure?
The enclosure includes three pre-installed DLC pigtails and an integrated splice module. Three adapter positions are reserved for users to install the required adapters according to their fiber termination configuration.
Can the three adapter ports be customized?
Yes. The three reserved positions provide flexibility for adapter installation, allowing the enclosure to be configured according to the required connector type and network design.

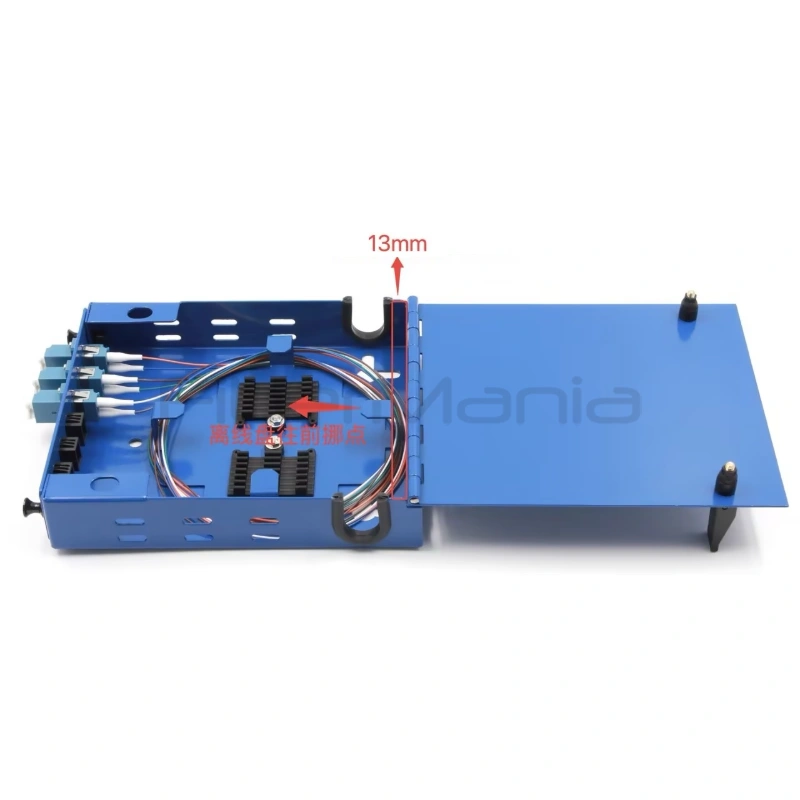

What is the purpose of moving the splice module forward?
The splice module is repositioned approximately 13 mm forward to optimize the internal layout. This creates more practical space around the splicing area for fiber routing and component placement.
Where can this enclosure be used?
It is suitable for FTTH, telecom, enterprise networks, fiber distribution points, and other applications requiring compact wall-mounted fiber splicing and termination.
Does the enclosure support both splicing and connector termination?
Yes. The integrated splice module supports fiber splicing, while the three reserved adapter positions and DLC pigtails support connectorized fiber termination within the same enclosure.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
