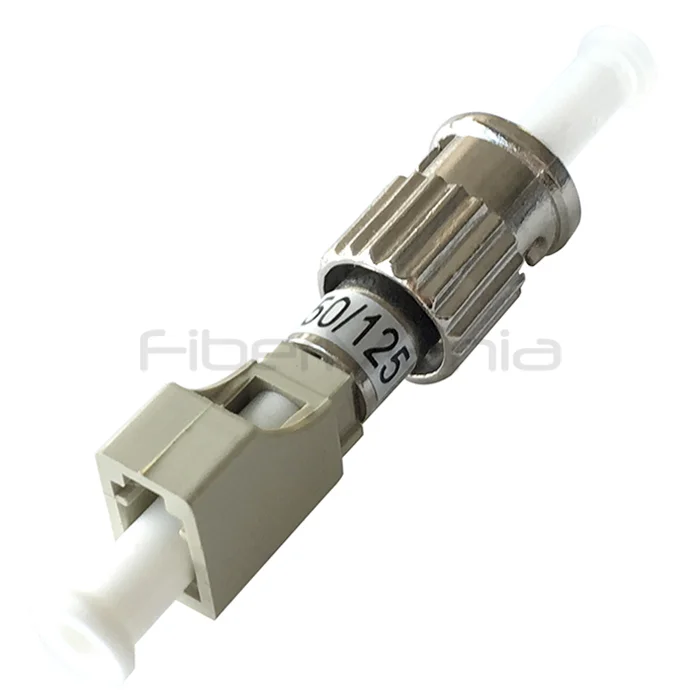

ST Male-LC Female OM2 Multimode Simplex Fiber Optic Adapter

Name: ST Male-LC Female OM2 MM Simplex Fiber Optic Adapter
SKU: STMLCF2S

P/N: STMLCF2S

Categories:

Hybrid Adapters

Product Highlights:

ST male to LC female OM2 multimode hybrid adapter engineered for stable and low-loss multimode connectivity.
Durable PBT or metal housing with ceramic alignment sleeve ensures long service life and high compatibility.
FiberMania offers full OEM/ODM customization

Description

The ST Male–LC Female OM2 Multimode Simplex Fiber Optic Adapter is a hybrid solution designed to interconnect ST-based multimode equipment with LC-terminated optical fibers. It enables quick and stable mating between two different connector interfaces while maintaining low insertion loss and consistent optical performance.

Constructed with a durable PBT housing and optional metal die-cast components, along with a high-precision ceramic alignment sleeve, this adapter ensures long-term reliability even under repeated mating cycles. The design meets stringent industry standards and is engineered for stable multimode transmission in demanding data communication environments.

Specification

Adapter Type	ST Male-LC Female
Fiber Mode	Multimode
Configuration	Simplex
Insertion Loss	≤ 0.2 dB
Compliance	IEC, Telcordia GR-326, JIS standards; RoHS-compliant materials
Operating Temperature	-40°C to +85°C
Storage Temperature	-40°C to +120°C
Durability	≥ 1000 mating cycles

Features

Meets IEC, Telcordia GR-326, and JIS performance requirements
High-precision ceramic sleeve ensures stable multimode alignment
RoHS-compliant materials
100% inspected for optical and mechanical performance before shipment
Hybrid structure connecting ST male to LC female
Designed for OM2 multimode fiber systems

Application

Data centers and server environments
Telecommunication network nodes
Premise wiring and structured cabling
LAN and WAN connectivity
FTTX and broadband network infrastructure
Equipment cross-connection between ST and LC ports

Q&A

Q1: Is this adapter compatible with OM1 or OM3 fibers?
A1: Yes, it can function with OM1/OM3 fibers as long as multimode core compatibility is maintained.

Q2: Does the metal housing option affect performance?
A2: Performance is identical, but the metal housing provides enhanced durability for high-use environments.

Q3: Can this adapter be used in high-temperature conditions?
A3: Yes, it supports an operating temperature range from −40°C to +85°C.

Q4: Is the ceramic sleeve essential for multimode?
A4: Yes, it ensures better alignment precision and long-term mating stability.

Quality Qulifications and Compliance

To get the detailed certification, please go to the Compliance.

Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
