Pass Through RJ45 8P8C Modular Plug for CAT5e CAT6 CAT6A UTP & SFTP Ethernet Cable, 1.0mm Straight & 1.2mm Staggered Holes
Categories:
Product Highlights:
The Pass Through RJ45 8P8C Modular Plug is designed for quick and accurate Ethernet cable termination with a wire-through structure for easier conductor alignment and inspection. Supporting CAT5e, CAT6, and CAT6A UTP/SFTP cables, it is available in 1.0mm straight hole and 1.2mm staggered hole versions for flexible installation requirements.
Table of Contents
Description
The Pass Through RJ45 8P8C Modular Plug is designed to simplify Ethernet cable termination by allowing conductors to pass through the front of the connector, making wire sequence inspection and alignment easier before crimping. This design helps reduce installation errors, improve termination efficiency, and ensure consistent network performance for professional cabling projects.
Compatible with CAT5e, CAT6, and CAT6A UTP and SFTP Ethernet cables, this modular plug is available with 1.0mm straight conductor holes and 1.2mm staggered conductor holes to accommodate different cable conductor sizes and structures. It is widely used in structured cabling systems, data centers, enterprise networks, and custom Ethernet cable assembly applications.
Specification
| Connector Type | RJ45 |
|---|---|
| Contact Configuration | 8P8C |
| Plug Design | Pass Through |
| Cable Category | CAT5e, CAT6, CAT6A |
| Cable Type | UTP / SFTP (model dependent) |

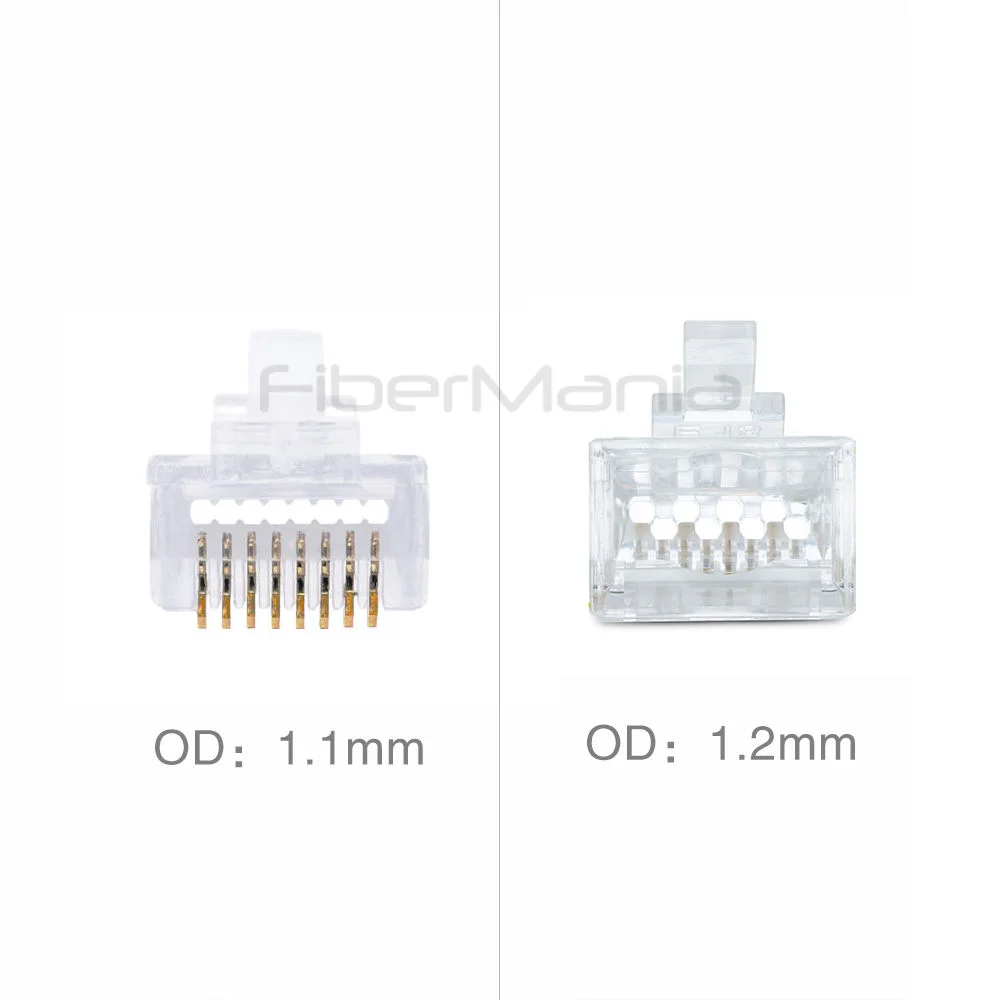

| Conductor Hole Option 1 | Straight 8-hole, up to 1.0mm conductor diameter |
| Conductor Hole Option 2 | Staggered upper/lower 8-hole, up to 1.2mm conductor diameter |
| Termination Method | Crimp |
| Compatible Crimp Tool | Pass-through RJ45 crimping tool |
| Contact Material | Phosphor Bronze |
| Housing Material | High-impact Polycarbonate (PC) |
Features
- Pass-through design allows wires to extend through the connector for easier conductor arrangement and visual verification
- Supports CAT5e, CAT6, and CAT6A Ethernet cable termination for various networking applications
- Available in 1.0mm straight hole and 1.2mm staggered hole versions for different conductor diameters
- Compatible with both UTP and SFTP shielded Ethernet cables
- Helps reduce wiring mistakes and improves crimping accuracy during installation
- Provides reliable contact performance with high-quality gold-plated contacts
- Suitable for solid and stranded copper conductors
- Designed for use with pass-through RJ45 crimping tools for efficient field termination
Applications
- Structured cabling systems for commercial and industrial networks
- Data center Ethernet cable installation and maintenance
- CAT5e/CAT6/CAT6A patch cable assembly
- Enterprise LAN and high-speed network deployments
- Custom Ethernet cable manufacturing and OEM cable production
- Network equipment connections including switches, routers, and patch panels
OEM & Customization
We provide OEM and customization services for Pass Through RJ45 Modular Plugs to meet different cable assembly requirements. Custom options are available for contact plating thickness, housing materials, packaging methods, labeling, and connector configurations.
For bulk cable assembly projects, we can also support customized RJ45 solutions based on cable types, conductor sizes, shielding structures, and customer-specific network installation requirements.
FAQ
What is the advantage of a pass-through RJ45 plug compared with a standard RJ45 plug?
A pass-through RJ45 plug allows the conductors to extend through the connector during termination, enabling installers to check the wire order before crimping. This improves termination accuracy and reduces rework caused by incorrect pin arrangements.
What is the difference between the 1.0mm straight hole and 1.2mm staggered hole designs?
The 1.0mm straight hole design is suitable for standard Ethernet conductors, while the 1.2mm staggered hole design provides additional space and better alignment for larger conductors commonly found in some CAT6A or shielded cables.
Can this RJ45 modular plug be used with shielded Ethernet cables?
Yes. This product supports both UTP and SFTP Ethernet cables. For shielded cable applications, the connector can be selected with appropriate shielding features to maintain grounding and EMI protection.
Is this connector compatible with CAT6A cables?
Yes. The pass-through RJ45 plug supports CAT6A Ethernet cable termination when the cable conductor size and structure match the selected hole design.
What crimping tool is recommended for this RJ45 plug?
A pass-through RJ45 crimping tool is recommended because it trims the excess conductor length during the crimping process and provides a cleaner, more reliable termination.
Can these plugs be used for custom-length patch cable production?
Yes. These modular plugs are commonly used for on-site or factory production of custom-length Ethernet patch cables, allowing flexible cable lengths and configurations.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
