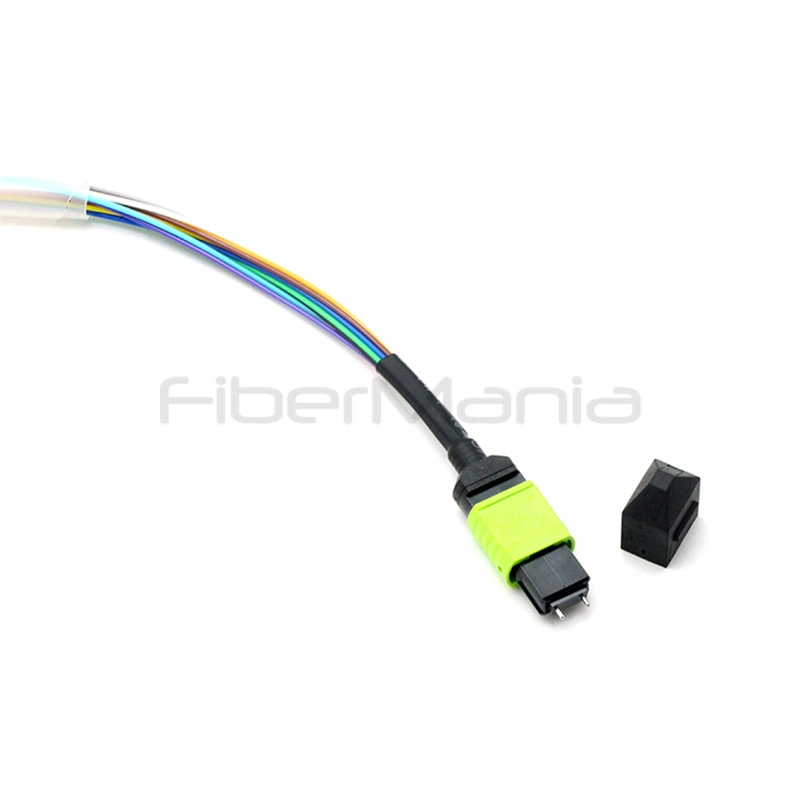

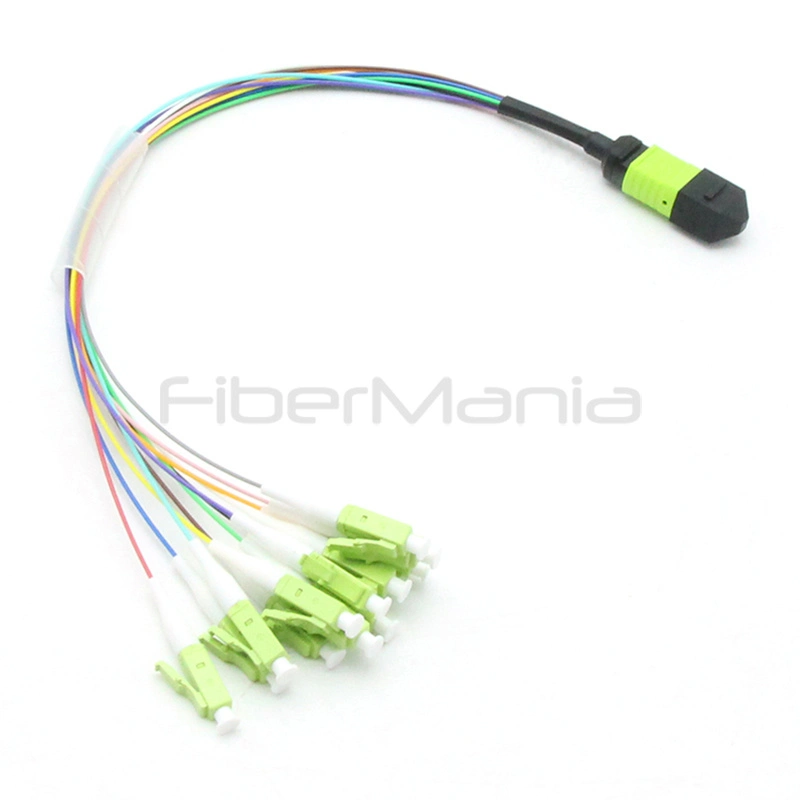

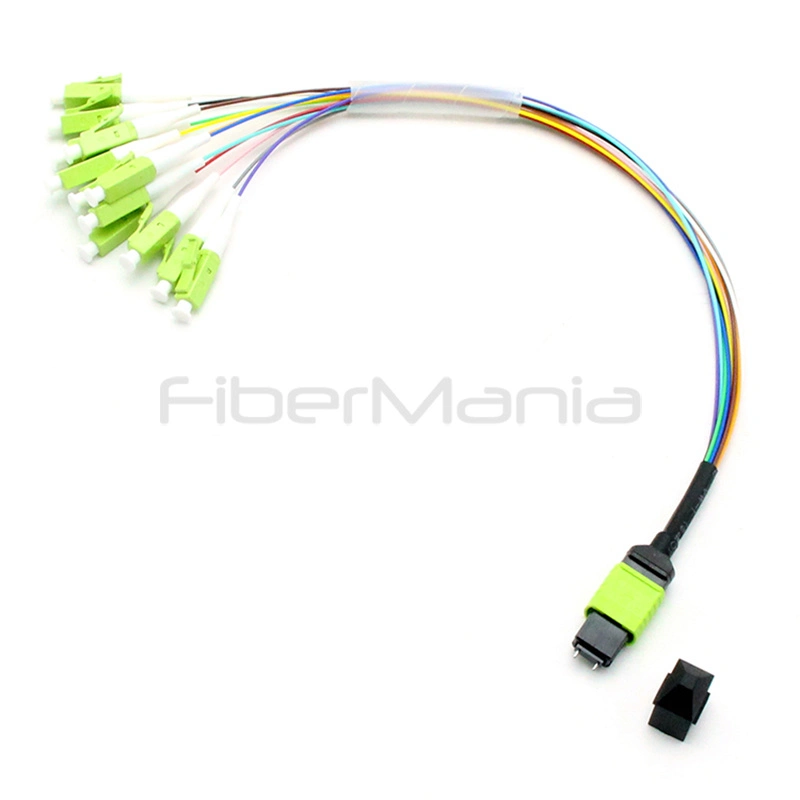

MTP Male to LC Patch Cord, OM3 OM4 OM5 Multimode Fiber, 0.9mm, 0.3m
Categories:
Product Highlights:
- MTP male to LC UPC multimode patch cord
- OM3, OM4, and OM5 50/125μm options
- Compact 0.9mm fiber design
- 0.3m standard length
- Corning ClearCurve® fiber option
- Multiple fiber counts and jacket options
- 100% optical and 3D interferometer tested
- OEM customization available
Table of Contents
Description
The MTP Male to LC Patch Cord is a high-density multimode fiber cable designed to connect MTP interfaces with individual LC ports in data center and high-speed network environments. It features a US Conec MTP male (pinned) connector, LC UPC connectors, and 0.9mm fiber construction with a compact, flexible design for space-constrained applications. Available with OM3, OM4, or OM5 50/125μm multimode fiber, the cable supports 850nm and 1300nm transmission and can be supplied with different fiber counts, jacket materials, lengths, and connector configurations. Corning ClearCurve® glass fiber and 100% optical and end-face testing provide reliable performance for high-density fiber connectivity and structured cabling deployments.
Specification
Features
- MTP male (pinned) to LC UPC connection
- Available in OM3, OM4, and OM5 multimode fiber
- 50/125μm fiber for high-speed short-distance transmission
- Compact 0.9mm fiber design for high-density installations
- Available in 8, 12, 24, 48, 72, 96, and 144 fibers
- Corning ClearCurve® glass fiber available
- Low insertion loss and high return loss performance
- Available with PVC, OFNR, OFNP, or LSZH jackets
- 100% tested for insertion loss, return loss, and 3D interferometer parameters
- OEM customization available
Applications
- Data center structured cabling
- High-density fiber patching
- MTP/MPO backbone connections
- Server and switch interconnections
- Fiber distribution frames
- Telecommunications networks
- Short-distance multimode fiber links
- High-density rack and cabinet installations
Q&A
What is the connector configuration of this patch cord?
The cable uses a US Conec MTP male (pinned) connector on one end and an LC UPC connector on the other, providing a direct MTP-to-LC connection.
Which multimode fiber types are available?
The cable can be manufactured with OM3, OM4, or OM5 50/125μm multimode fiber, allowing it to be matched to different data center and high-speed networking requirements.
What fiber counts can be customized?
Standard configurations include 8, 12, 24, 48, 72, 96, and 144 fibers. Custom fiber counts and cable configurations can also be provided for specific projects.
What jacket options are available?
PVC, OFNR, OFNP, and LSZH jacket materials are available. The appropriate jacket can be selected according to installation environment, fire-rating requirements, and local cabling standards.
Is the cable tested before shipment?
Yes. Each cable is 100% tested for insertion loss, return loss, and 3D interferometer parameters to verify optical performance and connector end-face quality.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
