2m (7ft) MTP®-8 APC Female to 4x MDC UPC Duplex Fiber Harness, 8-Fiber OS2 G.657.A1 Single Mode, Type B, 0.35dB, OFNP
Categories:
Product Highlights:
- 8-fiber MTP® to 4x MDC duplex breakout
- OS2 G.657.A1 single mode fiber
- MTP®-8 APC female, non-pinned
- Four MDC UPC duplex push-pull connectors
- Type B polarity
- ≤0.25dB typical insertion loss
- 3.0mm OFNP main cable
Table of Contents
Description
This 2m (7ft) MTP®-8 APC female to 4x MDC UPC duplex fiber harness provides an 8-fiber OS2 single-mode breakout solution for high-density data center networks. It uses a US Conec MTP® Elite female non-pinned connector on one end and four MDC UPC duplex connectors on the other, enabling a single 8-fiber MTP® interface to connect to four compact duplex MDC interfaces. The harness features Type B polarity, G.657.A1 bend-insensitive fiber, and a 3.0mm main cable for reliable and organized fiber routing. Its compact MDC push-pull Uniboot design supports efficient installation in high-density environments and is suitable for MTP® to MDC breakout connections, high-density switch and transceiver interconnects, and data center cabling.
Specification
| Cable Length | 2m (7ft) |
|---|---|

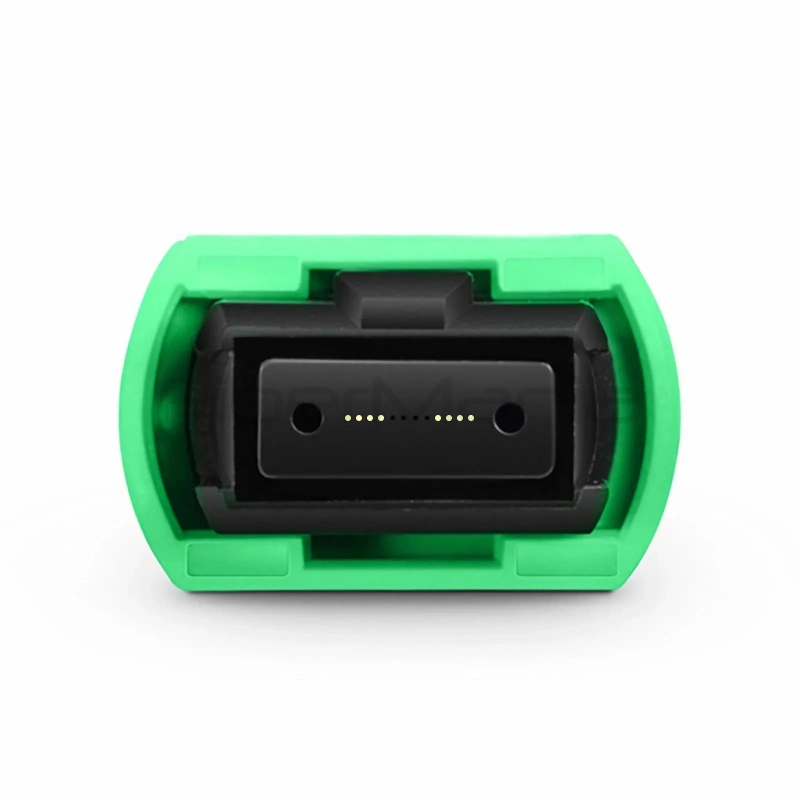

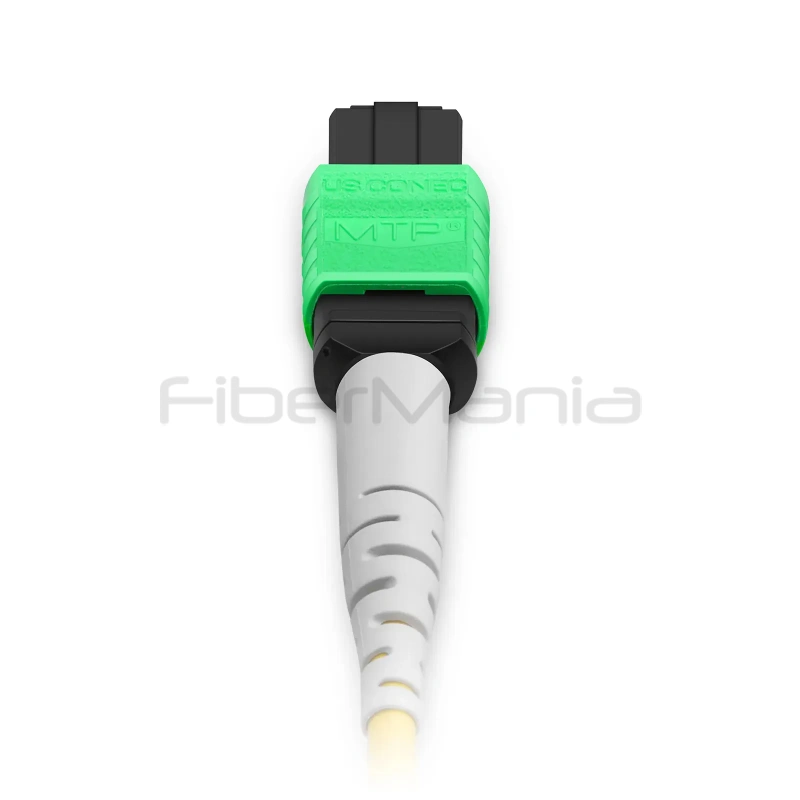

| Connector Type A | US Conec MTP® Elite Female, Non-Pinned |

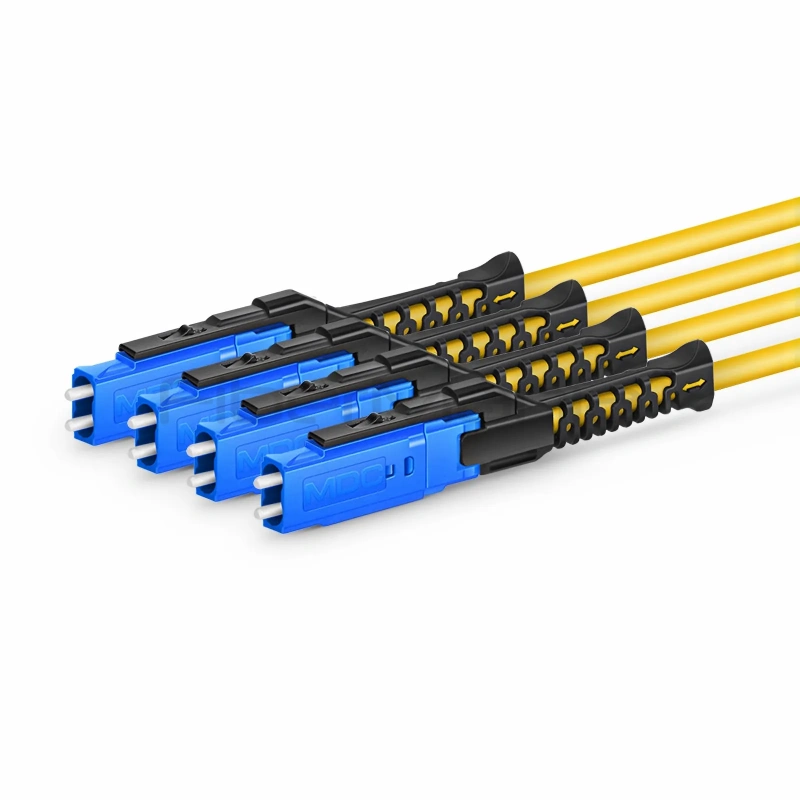

| Connector Type B | 4 × US Conec MDC UPC Duplex |
| Connector Configuration | MTP®-8 to 4 × Duplex |
| Fiber Count | 8 Fibers |
| Fiber Type | OS2 Single Mode |
| Fiber Standard | G.657.A1 |
| Polish Type | MTP® APC / MDC UPC |
| Connector Design | MDC Push-Pull Boot, Uniboot |
| Insertion Loss | ≤0.25dB Typical |
| Return Loss | ≥60dB |
| Main Cable Diameter | 3.0mm |
| Cable Jacket | OFNP Plenum |
| Polarity | Type B |
| Operating Temperature | −20°C to +70°C |
| Standards | IEC 61754-36 / TIA-604-38 / RoHS |
Features
- MTP®-8 APC female to 4x MDC UPC duplex configuration
- 8-fiber OS2 single mode fiber
- G.657.A1 bend-insensitive fiber
- US Conec MTP® Elite female non-pinned connector
- Four US Conec MDC UPC duplex connectors
- Type B polarity
- MDC push-pull Uniboot design
- ≤0.25dB typical insertion loss
- ≥60dB return loss
- 3.0mm main cable diameter
- OFNP plenum-rated cable jacket
- 2m (7ft) standard length
Applications
- High-density data center cabling
- MTP® to MDC breakout connections
- 400G/800G network connectivity
- High-density switch and transceiver interconnects
- MTP®-based patch panels and cassettes
- Rack-level fiber distribution
- Data center spine-leaf network architectures
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
