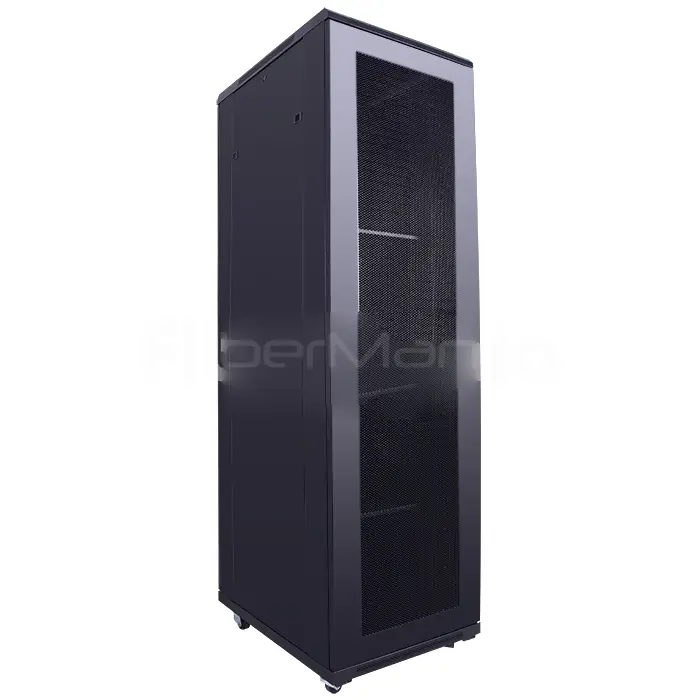

M3 Networking Cabinet, 19” Standard, High-Density Ventilation, Modular Design
Categories:
Product Highlights:
-
M3 Networking Cabinet with 19” standard installation and high-density vented doors
-
Modular frame design with removable side panels for easy maintenance and assembly
-
Ventilation area up to 71%, adjustable feet and heavy-duty castors for mobility and stability
-
Supports optional accessories such as shelves, fan units, PDUs, cable management, keyboard trays, and blank panels
Table of Contents
Description
The M3 Networking Cabinet is a high-performance solution for server and network installations, designed to comply with ANSI/EIA, RS-310-D, IEC297-2, DIN41491 PART1, DIN41494 PART7, GB/T3047.2-92 ETSI standards. Its hexagonal reticular high-density vented front and rear doors provide excellent airflow, ensuring effective heat dissipation for installed equipment.
The cabinet features a 19” standard installation, ensuring compatibility with international rack-mount equipment, and allows door interchangeability for added flexibility. Its modular frame structure is designed for easy assembly and disassembly, which reduces shipping costs and simplifies deployment. Removable side panels provide convenient access for installation and maintenance.
With a ventilation area of up to 71%, the M3 Networking Cabinet ensures optimal cooling for critical IT infrastructure. Several lockable cable entries on the top cover and bottom panel enhance organization and security. Adjustable feet and heavy-duty castors provide both mobility and stable positioning. Optional accessories such as fixed shelves, fan units, PDUs, cable management, keyboard trays, and blank panels can be integrated to suit specific operational requirements.
Specification
| Category | Networking Cabinet / Server Rack |
|---|---|
| Type / Form Factor | 19'' Standard, Modular Design |
| Material | High-quality steel (typically SPCC or SECC) |
| Front Door | Mesh / Ventilated, Lockable |
| Rear Door | Mesh / Solid, Lockable |
| Side Panels | Removable, Modular |
| Ventilation | High-Density Ventilation Panels, optional fan units |
| Static Load Capacity | Up to 1000 KG (subject to model) |
| Compliance / Standards | ANSI/EIA, RS-310-D, IEC297-2, DIN41491/41494, ETSI (typical) |
| Dimensions | Standard 19'' rack-mount; customizable height/depth |
Features
-
Hexagonal reticular high-density vented front and rear doors with round locks
-
19” standard installation with door interchangeability
-
Modular frame structure for easy assembly and disassembly
-
Removable side panels for convenient installation and maintenance
-
Ventilation area up to 71% for effective heat dissipation
-
Adjustable feet and heavy-duty castors for mobility and stable positioning
-
Optional accessories: fixed shelves, fan units, PDUs, cable management, keyboard trays, blank panels
Applications
-
Server rooms and data centers
-
Networking and telecommunications installations
-
Enterprise IT infrastructure
-
Industrial automation systems
FAQ
Q: What is the ventilation rate of the M3 Networking Cabinet?
A: The cabinet provides a ventilation rate of 71%, ensuring effective heat dissipation.
Q: What is the static loading capacity?
A: The M3 Networking Cabinet supports a static load of 1000KG.
Q: Can the cabinet be customized?
A: Yes, FiberMania offers OEM/ODM customization for dimensions, structure, finish, and accessories.
Q: Are the side panels removable?
A: Yes, the side panels can be quickly removed or installed for easy maintenance.
Q: What optional accessories are available?
A: Optional accessories include fixed shelves, fan units, PDUs, cable management, keyboard trays, and blank panels.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
