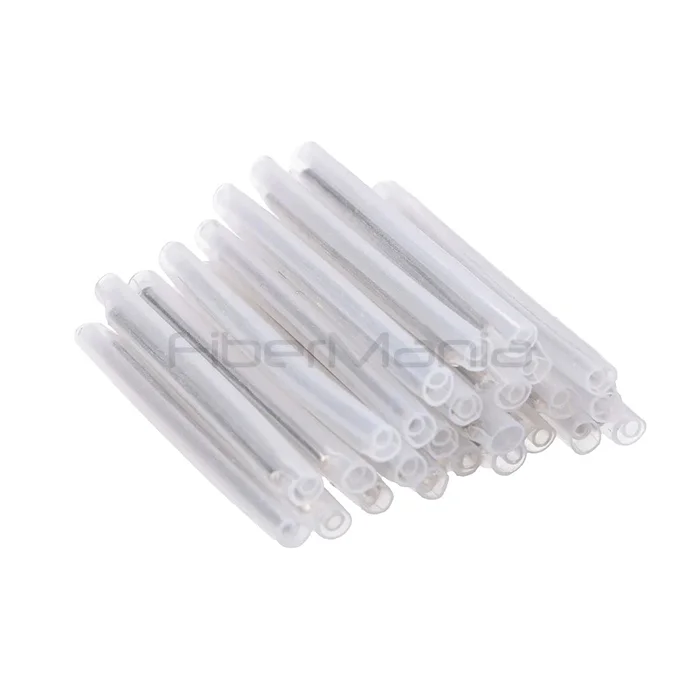

Fiber Optic Splice Protection Sleeve Single Fiber 1.5x40mm
Categories:
Product Highlights:
-
Reliable fiber protection: Prevents stress and mechanical damage to fusion splices.
-
Transparent tube design: Allows easy visual inspection of fiber splices.
-
High-temperature resistant: Operates between -55°C to 100°C for field and factory use.
-
Easy and efficient installation, reducing risk of fiber breakage.
Table of Contents
Description
The FiberMania PS-1540 Fiber Optic Splice Protection Sleeve is designed to safeguard single fiber fusion splices in both field and factory operations. Made from cross-linked polyolefin heat-shrinkable tubes, hot melt adhesive tubes, and a stainless steel needle, it provides mechanical reinforcement, stress relief, and environmental protection for delicate fiber connections. Its transparent design ensures technicians can easily inspect the fiber status during installation or maintenance.
Specification
| Steel Needle Inside Diameter | 1.5mm |
|---|---|
| Tube Length | 40mm |
| Material | Cross-linked polyolefin heat-shrink tube, hot melt adhesive tube, stainless steel needle |
| Operating Temperature | -55°C ~ 100°C |
| Tube Color | Transparent |
| Packaging | 100pcs per bag, 1000pcs per bigger bag |
| Certifications | ISO9001:2008, RoHS Compliant |
| Minimum Order Quantity | 1000 Pieces |
Features
-
Easy to operate, minimizing the risk of fiber damage during installation
-
Transparent tube for clear inspection of fiber optical closure
-
Sealing structure enhances resistance to temperature and humidity
-
Protects fusion points and improves mechanical strength
-
Reliable and durable way to protect fusion splices
-
Operates in a wide temperature range: -55°C to 100°C
Applications
-
Protection of fiber optic splices in closures, panels, and cabinets
-
Fiber optic telecommunication networks
-
FTTX, enterprise, and data center fiber deployments
-
Field and factory fiber installation operations
Frequently Asked Questions (FAQ)
Q1: What size fiber does this sleeve fit?
-
Designed for single fiber with steel needle inner diameter of 1.5mm.
Q2: What is the length of the protection sleeve?
-
The sleeve is 40mm long.
Q3: Can it withstand harsh environments?
-
Yes, it operates between -55°C to 100°C and is resistant to temperature and humidity.
Q4: How is it packaged?
-
Packaged 100pcs per bag, with 1000pcs in a bigger bag.
Q5: Is it suitable for field and factory use?
-
Yes, it is specifically designed for both field and factory fiber splice protection.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
