Fiber Optic Inspection Probe: High-Precision Hand-held End-Face Microscope
Categories:
Product Highlights:
-
High-precision handheld inspection probe for fiber optic connector end-face analysis
-
Provides clear imaging to detect contamination and defects affecting signal quality
-
Portable and easy to use for both field and laboratory environments
-
FiberMania supports OEM and customization services, helping you build tailored fiber optic inspection solutions
Table of Contents
Description

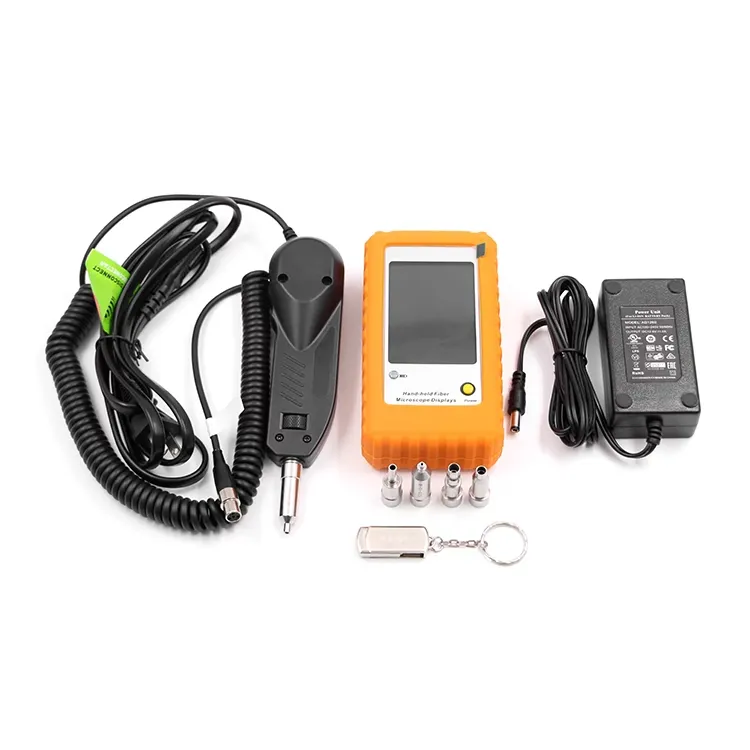

The Fiber Optic Inspection Probe is a high-precision handheld device designed to examine the end-face quality of fiber optic connectors. It plays a critical role in ensuring optimal network performance by allowing technicians to detect contamination, scratches, and defects that may affect signal transmission. With advanced imaging technology, this inspection probe delivers clear and detailed visuals, enabling accurate assessment in both field and laboratory environments.
Its ergonomic handheld design ensures comfortable operation during extended use, while the compact structure allows for easy portability. The probe is compatible with a wide range of fiber connector types through interchangeable tips, making it a versatile tool for various inspection scenarios. Real-time image display enhances efficiency, allowing users to quickly identify issues and take corrective actions.
Built for reliability and precision, this inspection microscope is widely used in fiber optic installation, maintenance, and troubleshooting. It helps reduce downtime, improve connection quality, and maintain compliance with industry standards in modern fiber networks.
Specification
| Standard Compliance | IEC61300-3-35 |
|---|---|
| Manual Adjustment Accuracy | 0.01 mm |
| Connector Compatibility | SC, FC, LC, E2000, MU, ST, MPO (male and female) |
| End Face Types | PC and APC |
| Magnification | 200x, 400x |
| Detection Mode | Direct detection, detection through flange without disassembly |
| Data Storage & Transfer | Can store data; import via USB to computer/smart devices |
| Application Range | DWDM, SDH, SONET equipment, fiber transmission racks, optical switches, optical distribution boxes |
Features
-
High-resolution imaging for detailed end-face inspection
-
Handheld and portable design for field use
-
Compatible with multiple connector types via interchangeable tips
-
Real-time image display for quick analysis
-
Detects dust, scratches, oil, and other contaminants
-
Durable construction for long-term reliability
-
Easy operation with minimal training required
Applications
-
Fiber optic network installation and maintenance
-
Data centers and telecommunications systems
-
FTTH and FTTx deployments
-
Inspection of patch cords, adapters, and connectors
-
Field service and troubleshooting operations
FAQs
Q1: What types of connectors can this probe inspect?
It supports a wide range of connectors such as SC, LC, FC, and other standard fiber interfaces with appropriate adapter tips.
Q2: Can the device capture or store images?
This depends on the specific configuration. Some models support image capture and storage or connection to external displays.
Q3: Is it suitable for field use?
Yes, the handheld and portable design makes it ideal for both field and on-site inspections.
Q4: How does this tool improve network performance?
By identifying contamination and defects on connector end faces, it helps ensure clean connections and reduces signal loss.
Q5: Do you provide OEM or customization services?
Yes, FiberMania offers OEM services including branding, packaging, and specification customization to meet different customer requirements.
