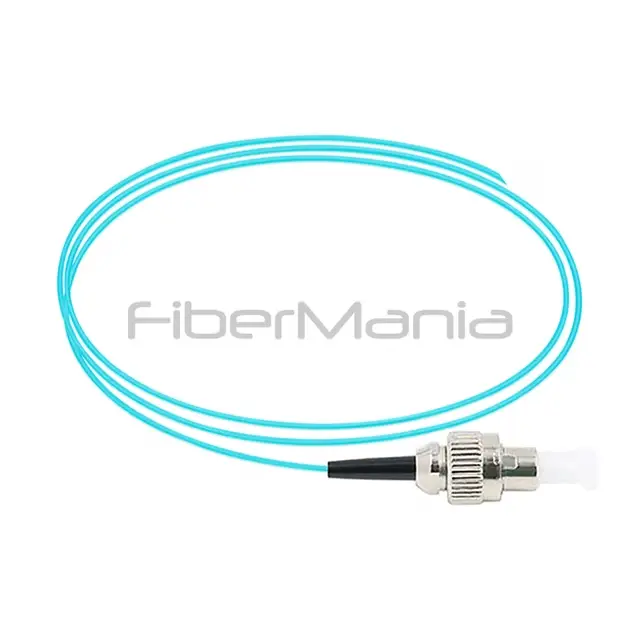

FC/UPC Simplex OM3 Fiber Optic Pigtail 50/125µm 1M Aqua Jacket 0.9mm

Name: FC/UPC Simplex OM3 Fiber Optic Pigtail 50/125µm 1M
SKU: FP-1FCMM3-1

P/N: FP-1FCMM3-1

Categories:

FC Pigtails

Product Highlights:

FC/UPC Simplex OM3 Fiber Optic Pigtail with 50/125µm multimode fiber
1M length with 0.9mm buffer and aqua jacket for indoor installations
Low insertion loss and high return loss for reliable optical performance
FiberMania provides OEM/ODM customization, free sample evaluation, fast 3-7 day delivery, and 1-3 year guarantee

Description

The FC/UPC Simplex OM3 Fiber Optic Pigtail is designed for high-speed multimode network applications, offering superior performance for fusion splicing within fiber patch panels or optical distribution frames. With a 50/125µm OM3 fiber, it ensures low insertion loss and high signal integrity. One end is terminated with an FC/UPC connector while the other end is left blunt for seamless splicing to drop cables, eliminating the need for field terminations and reducing installation time.

FiberMania manufactures these pigtails with precision, providing a durable 0.9mm buffered fiber core and a robust 1-meter aqua jacket suitable for indoor deployments. Each fiber strand is color-coded according to industry standards, allowing for easy identification and organized installation. The pigtail is carefully packaged to prevent damage during handling and transport, ensuring consistent optical performance.

This OM3 pigtail is ideal for applications requiring high-bandwidth multimode connections, including enterprise, CATV, and telecommunication networks. Its construction guarantees reliable long-term use in high-density installations.

Specification

Fiber Mode / Type	OM3 50/125µm
Number of Fibers / Cores	1
Connector Type	FC/UPC
Cable Length	1 m
Jacket Type & Color	Aqua
Cable Diameter	0.9 mm
Duplex / Simplex	Simplex
Transmission Speed	10G
Operating Environment	Indoor
Standards Compliance	ISO/IEC 11801, TIA/EIA, RoHS

Features

Low insertion loss and low back reflection loss
High durability and reliable exchangeability
Color-coded buffer for easy identification
Meets ISO9001, RoHS, and Bellcore GR-326 core standards
Available in simplex, duplex, and multi-strand versions

Applications

CATV, LAN, and WAN networks
Test and measurement systems
Telecommunication networks
Premises installations
Video, broadcast, and military device terminations

Q&A

Q1: Is this pigtail suitable for high-speed multimode networks?
A1: Yes, the OM3 50/125µm fiber supports high-speed CATV, LAN, and WAN applications.

Q2: Can this pigtail be used for fusion splicing?
A2: Yes, one end is left blunt for direct fusion splicing with drop cables.

Q3: Can I request different lengths or jacket colors?
A3: Yes, FiberMania provides OEM/ODM customization for lengths, jacket colors, and connector types.

Q4: How does the color-coded buffer benefit installation?
A4: It simplifies identification of fibers and helps maintain organized, error-free deployment.

Q5: Is this suitable for indoor use?
A5: Yes, the 0.9mm buffered fiber and aqua jacket provide durability and long-term indoor performance.
