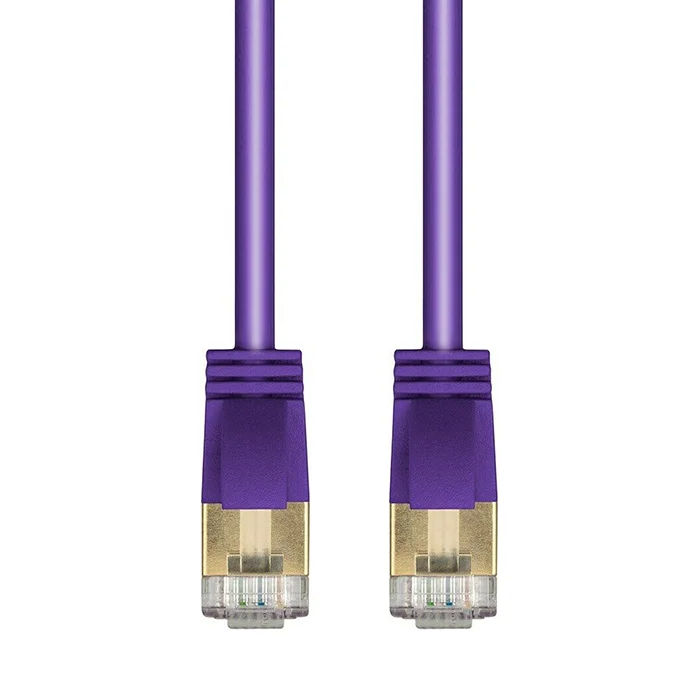

CAT.6A STP Slim Patch Cable, 36AWG, Purple, 10FT

Name: CAT.6A STP Slim Patch Cable 36AWG Purple | FiberMania
SKU: PC-6ASCSPLP-10

P/N: PC-6ASCSPLP-10

Categories:

CAT.6A Cables

Product Highlights:

CAT.6A STP Slim Patch Cable, 36AWG stranded bare copper for 10 Gigabit Ethernet
Flexible slim design with narrow snagless boot for easy installation in tight spaces
RoHS PVC jacket, CM/CMR/CMP rated, T568B wiring standard
FiberMania provides OEM and ODM services, including custom lengths, colors, and labeling to meet project requirements

Description

FiberMania’s CAT.6A STP Slim Patch Cable in purple is specifically designed for high-speed 10 Gigabit Ethernet applications. With its 36AWG stranded bare copper conductors, this slim cable offers exceptional flexibility, making installation in tight spaces, cable trays, and high-density patch panels effortless. The narrow snagless boot further enhances ease of use by preventing cable snags and protecting the connector during repeated plug-ins and removals.

This cable provides reliable signal integrity and supports high-frequency data transmission up to 500 MHz. Its shielded twisted pair (STP) construction ensures effective reduction of crosstalk and electromagnetic interference, making it ideal for environments where signal quality is critical. FiberMania ensures that each cable undergoes rigorous inspection and testing, guaranteeing consistent performance in enterprise networks, data centers, and telecom applications.

Compact and durable, this slim cable simplifies cable management while maintaining compliance with industry standards. It is perfect for upgrading existing networks, extending high-speed links, or deploying new installations where space optimization and high performance are priorities.

Specification

Product Category	Patch Cable
Cable Category	CAT.6A
Cable Type	STP
Shielding	Shielded
Number of Pairs	4 Pairs
Conductor Gauge	36 AWG
Conductor Type	Stranded
Conductor Material	Bare Copper
Connector Type	RJ45 to RJ45
Contact Plating	Gold-Plated
Wiring Standard	T568B
Boot Type	Slim
Cable Outer Diameter	Slim
Jacket Material	PVC
Jacket Color	Purple
Cable Length	10 ft
EMI Protection	Yes
Supported Ethernet	10G Ethernet
Standards Compliance	TIA/EIA-568-C.2
Certifications	UL, RoHS
Installation Environment	Indoor
Typical Applications	LAN, Patch Panels, Device Connections
OEM / ODM Support	Yes

Features

4-pair 36AWG stranded bare copper conductors
STP construction reduces crosstalk and EMI
Narrow snagless boot for easy installation and connector protection
RoHS PVC jacket with CM, CMR, CMP flammability ratings
Wiring standard: T568B
Certified to TIA/EIA 568-C.2; UL listed

Applications

10 Gigabit Ethernet networks
Data center cabling and high-density patch panels
Enterprise LAN and WAN infrastructure
Telecommunications and FTTX networks
Tight-space installations requiring slim, flexible cables

FAQ

Can this cable support 10 Gigabit Ethernet?
Yes, it is specifically designed for 10GBASE-T applications.
What is the conductor material?
36AWG stranded bare copper, ensuring full compliance with CAT.6A standards.
Are custom lengths and colors available?
Yes, FiberMania offers OEM/ODM options for tailored cable solutions.
What is the maximum frequency supported?
This cable supports frequencies up to 500 MHz.
Is it suitable for high-density patch panels?
Yes, the slim and flexible design makes it ideal for tight installations.

Quality Qulifications and Compliance

To get the detailed certification, please go to the Compliance.

Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
