CAT.6A SFTP Bulk Cable, Bare Solid Copper, 23AWG, 4 Pairs, PVC Jacket, Yellow, 305M Per Reel
Categories:
Product Highlights:
-
High-performance CAT.6A SFTP bulk cable engineered for reliable 10GbE and high-speed data links — shielded design minimizes alien crosstalk in dense cable runs.
-
Solid bare 23 AWG conductors and PVC jacket for stable impedance, long life and easy termination with standard keystone/jack hardware.
-
Supplied on 305 m reels, color-coded yellow for easy identification and optimized for FiberMania B2B OEM/ODM packaging and labeling.
Table of Contents
Description

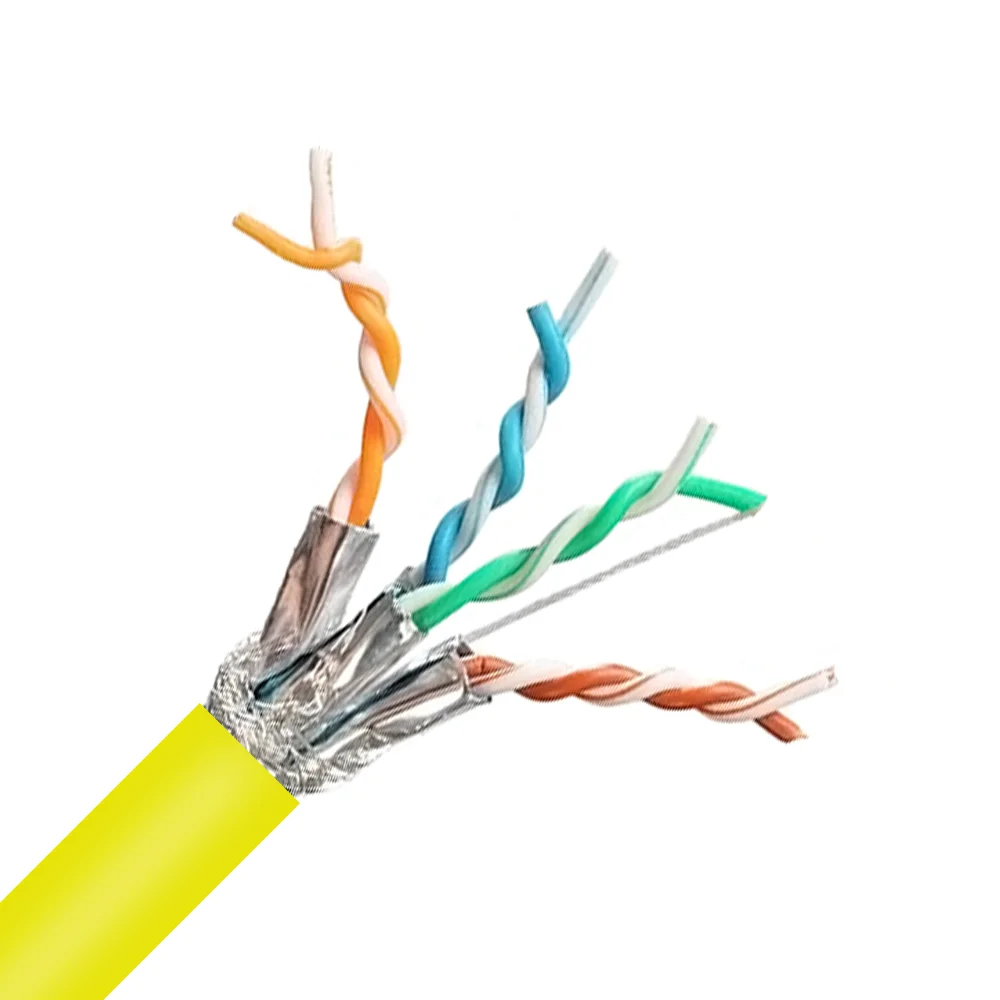

This Cat6A SFTP (Shielded Foiled Twisted Pair + Braid) bulk cable is designed for 10 Gigabit Ethernet and future-proof structured cabling installations. Each cable contains four individually foil-shielded twisted pairs wrapped in an overall braided drain shield, built around solid bare 23 AWG copper conductors for robust electrical performance and predictable termination. The PVC jacket (yellow) delivers rugged environmental protection for general commercial installations and comes on 305 m (1,000 ft) reels for easy deployment in offices, data centers, and campus backbone runs.
Specification
| Conductor | Solid bare copper, 23 AWG (≈0.573 mm diameter) |
|---|---|
| Pairs | 4 pairs (color-striped) |
| Fiber / Pair Insulation | PE or FPE pair insulation (vendor dependent) |
| Cable mode | Balanced twisted pair |
| Jacket material | PVC (standard); LSZH/OFNP options available |
| Jacket color | Yellow (standard) |
| Cable length per reel | 305 m (1, 000 ft) |
| Reel type | Wooden/plastic reel (export packaging as requested) |
| Nominal outer diameter | Typical ~6.0 – 7.0 mm (confirm on order) |
| Characteristic impedance | 100 Ω ±15% (per TIA/EIA standard) |
| Velocity of propagation | Typical 65% – 70% (depends on insulation) |
| DC loop resistance (max, conductor) | Typical ≤ 9.38 Ω/100 m (per 23 AWG copper standards) — confirm by test report |
| Mutual capacitance | Typical ≤ 5.6 nF/100 m (indicative; vendor dependent) |
| Propagation delay | Typical ≤ 538 ns/100 m (indicative) |
| Delay skew | ≤ 45 ns/100 m (typical Cat6A limit) |
| Attenuation (typical) | Approx. 2.3 dB/100 m @ 100 MHz (varies with frequency; see table below) |
| Supported bandwidth | Category 6A (Class EA) — up to 500 MHz |
Features
-
Category 6A (Class EA) S/FTP construction: foil around each pair + overall braid for superior EMI rejection and reduced alien crosstalk.
-
Solid bare copper conductors, 23 AWG, for stable impedance and reliable RJ45 termination performance.
-
4 twisted pairs with color-striped pair identification for fast terminations.
-
PVC outer jacket (yellow) — durable and widely compatible with commercial installations. LSZH/other jacket materials available on request.
-
Exceeds ANSI/TIA-568.2-D (Cat6A) performance targets — supports 10GBASE-T to 100 meters in typical installations.
-
UL listed components, RoHS compliant, manufactured under ISO9001 quality system.
-
Supplied on 305 m reels with neutral or OEM packaging options and custom labeling for FiberMania OEM customers.
Applications
-
10 Gigabit Ethernet horizontal and backbone cabling.
-
High-density office, campus and data-center horizontal runs where shielding is required.
-
Environments with elevated EMI (near power runs, heavy equipment, industrial).
-
PoE and high-performance AV distribution.
-
Structured cabling projects requiring OEM/labelled products for resale and system integration.
Frequently asked questions (FAQ)
Q: What is the advantage of S/FTP over UTP for Cat6A?
A: S/FTP (foil per pair + overall braid) provides much better suppression of alien crosstalk and external EMI than UTP, enabling reliable 10GbE performance in noisy or dense installations.
Q: Can this cable support 10G up to 100 meters?
A: Yes — when properly installed and terminated with Cat6A certified components, this cable supports 10GBASE-T up to 100 m per ANSI/TIA-568.2-D.
Q: Do you offer LSZH (low smoke zero halogen) jackets?
A: Yes — FiberMania can supply LSZH, OFNP or other jacket compounds on request (MOQ and lead time may vary).
Q: How should the shield be terminated?
A: Terminate the drain wire/shield to the shielded RJ45 jack/panel and ensure proper bonding to building ground according to your grounding scheme. For most installations, single-end bonding or dual-end bonding should follow local standards and grounding practices.
Q: What testing documentation can you provide?
A: For OEM orders, FiberMania can provide cable electrical test reports, sample alien crosstalk/return loss data and material certificates. Per-reel testing is also available for project acceptance.
