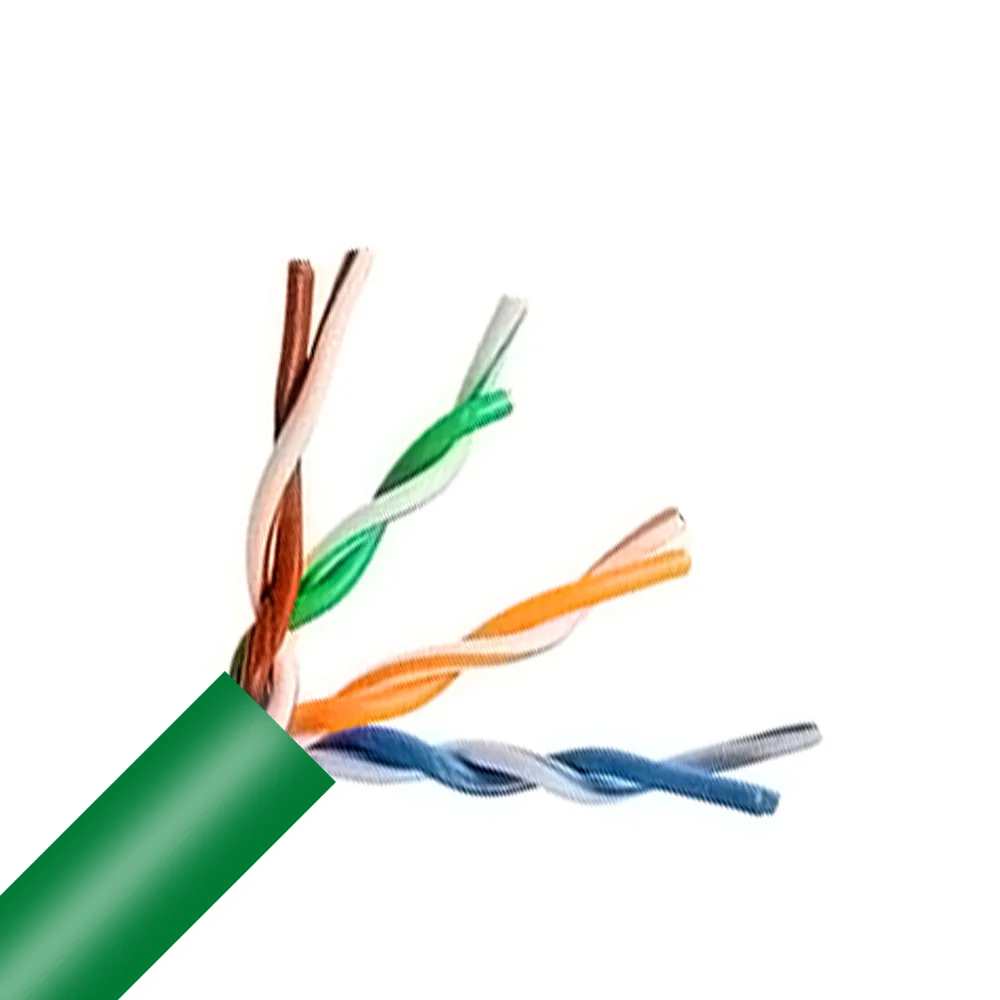

CAT.5E UTP Bulk Cable, Bare Solid Copper, 24AWG, 4 Pairs, PVC Jacket, Green, 305M Per Reel
Categories:
Product Highlights:
-
CAT.5E UTP bulk cable with 4 unshielded twisted pairs for high-speed data transmission
-
24AWG solid copper conductors with PE insulation for stable signal integrity
-
305-meter green PVC jacket reel for structured cabling and indoor installations
-
FiberMania offers OEM/ODM services for custom lengths, colors, and private-label solutions
Table of Contents
Description
The FiberMania CAT.5E UTP bulk cable in green is designed for reliable, high-performance network connectivity in both commercial and industrial environments. Constructed with 24AWG solid bare copper conductors, the cable ensures consistent signal transmission with low attenuation across Fast Ethernet and Gigabit Ethernet applications.
Each conductor is insulated with high-quality PE material, providing precise thickness control for minimal signal loss. The four unshielded twisted pairs (UTP) are assembled to reduce crosstalk, while the rip cord allows for easy jacket removal during termination. The riser-rated PVC jacket protects the cable mechanically and provides durability for indoor installations, including vertical riser applications.
With a bandwidth of 350 MHz, the cable supports high-speed data applications and structured cabling systems. Supplied on a 305-meter reel, the green jacket provides easy identification for organized cable management and troubleshooting in large-scale installations.
Specification
| Product Category | CAT.5E |
|---|---|
| Cable Type | UTP |
| Application Type | Ethernet Networking |
| Number of Pairs | 4 Pairs |
| Conductor Gauge | 24 AWG |
| Conductor Material | Solid Bare Copper |
| Shielding | Unshielded |
| Jacket Material | PVC |
| Jacket Color | Green |
| Cable Length | 305 m |
| Packaging | Reel |
| Installation Environment | Indoor |
| Bandwidth | 100 MHz |
| Standards Compliance | ANSI/TIA-568-C.2 |
| Certifications | UL, RoHS |
| Typical Use | LAN / Ethernet |
| OEM / ODM Support | Yes |
Features
-
Category 5E UTP design for reliable high-speed data transmission
-
24AWG solid bare copper conductors for stable signal integrity
-
Four unshielded twisted pairs with color-coded insulation for easy identification
-
PE insulation with precise thickness for low attenuation
-
Riser-rated PVC jacket with rip cord for durability and easy termination
-
Bandwidth: 350 MHz, suitable for Fast Ethernet and Gigabit Ethernet
-
Supplied on 305-meter reel for large-scale installations
Applications
-
Industrial Ethernet networks
-
Factory automation and process industry applications
-
Structured cabling in office and commercial buildings
-
Harsh indoor environments requiring reliable network performance
-
Data centers and server rooms
Additional
- High-Performance Data Cable
- 350MHz Bandwidth for Data Applications
- Category-5E Unshielded Twisted Pair
- Conductor: 24 AWG Solid Bare Copper
- Insulation Material: PE
- Insulation Average Thickness: 0.203mm
- Insulation Minimum Point Thickness: 0.172mm
- Insulation Diameter: 0.88mm (±0.005mm)
- Twisted Pair Diameter: 1.76mm (±0.01)
- Assembly Diameter: 3.60mm
- Jacket Material: PVC
- Jacket Average Thickness: 0.60mm
- Jacket Minimum Point Thickness: 0.54mm
- Jacket Outer Diameter: 5.00mm (±0.10mm)
- Rip Cord: Yes
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
