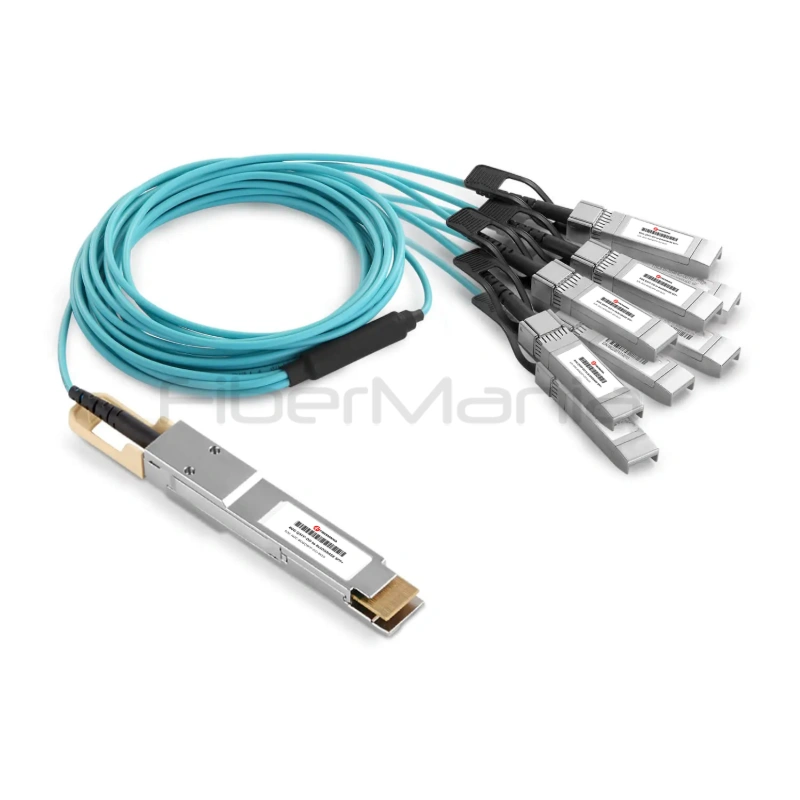

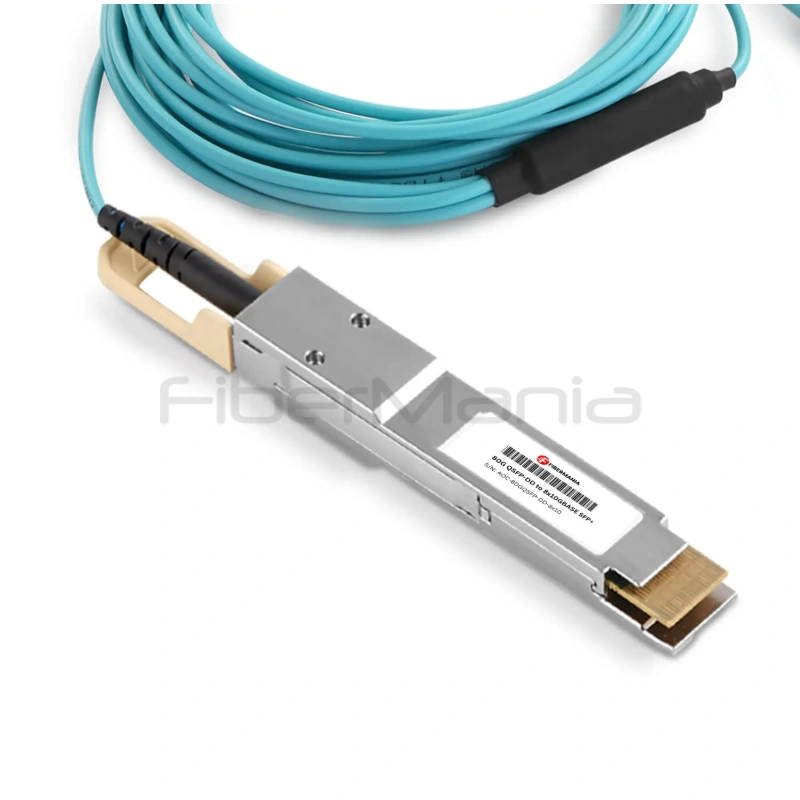

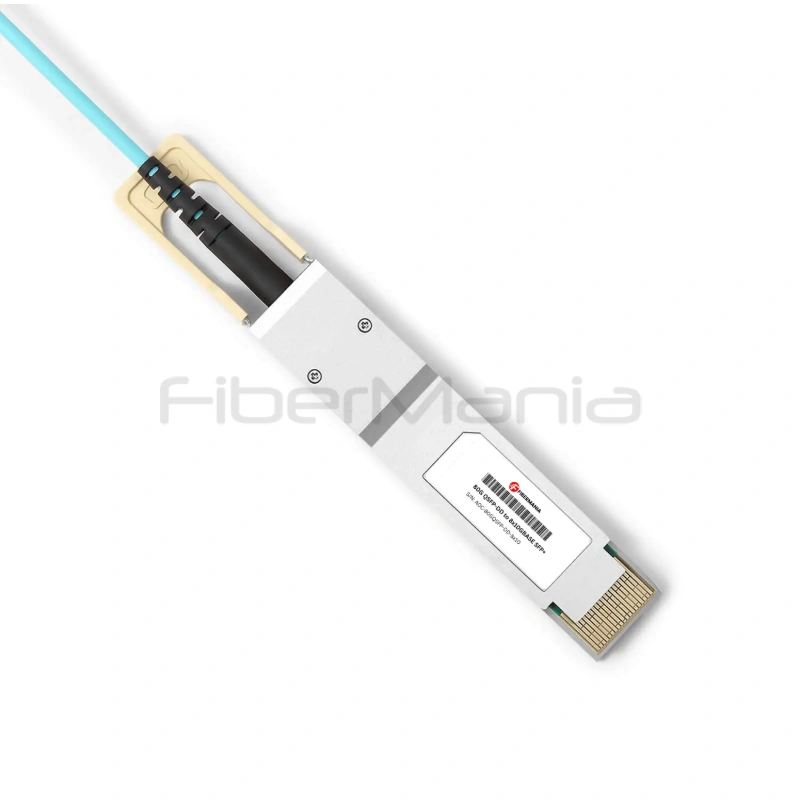

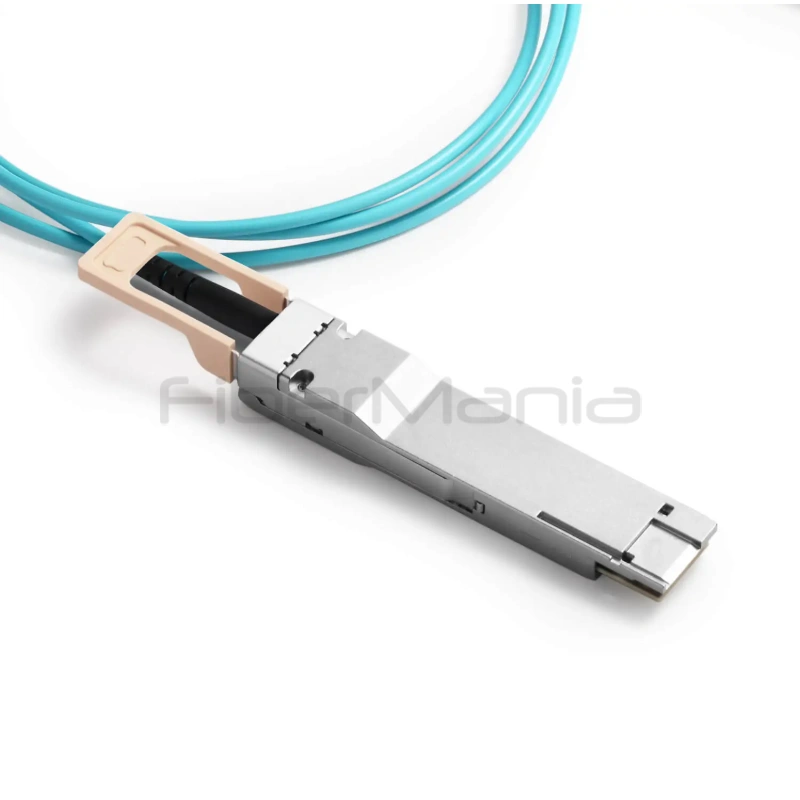

80G QSFP-DD to 8×10G SFP+ Active Optical Cable (AOC), Armored

Features

• 80G QSFP-DD to 8×10G SFP+ breakout configuration
• Eight optical lanes in each direction
• 10.3125Gbps per optical lane
• Up to 80Gbps-class aggregate bandwidth
• 850nm VCSEL transmitters
• PIN receivers
• OM2 multimode fiber
• Up to 82m transmission distance
• Armored construction
• LSZH jacket
• Low power consumption
• DDM/DOM support
• Integrated QSFP-DD and SFP+ connectors
• Eliminates separate transceivers and patch cables

Applications

• QSFP-DD to 8×10G breakout
• Data center network migration
• High-density server connectivity
• Switch-to-server connections
• High-density rack interconnects
• 10G network aggregation
• Network infrastructure upgrades
• Breakout architectures requiring multiple 10G connections

FAQ

What is the breakout configuration?

The cable connects one QSFP-DD port to eight independent 10G SFP+ interfaces, enabling a high-density QSFP-DD port to provide eight separate 10G connections.

What data rate does each optical lane support?

Each optical lane operates at 10.3125Gbps, with eight lanes providing up to 80Gbps-class aggregate bandwidth.

What is the maximum transmission distance?

The AOC supports a maximum reach of 82 meters over OM2 multimode fiber.

Does the cable require separate transceiver modules?

No. The QSFP-DD and SFP+ optical interfaces are integrated into the AOC, eliminating the need for separate transceivers and intermediate fiber patch cables.

What are the benefits of the armored construction?

The armored construction provides additional mechanical protection and helps organize and protect the cable in high-density installations and demanding cable-management environments.
