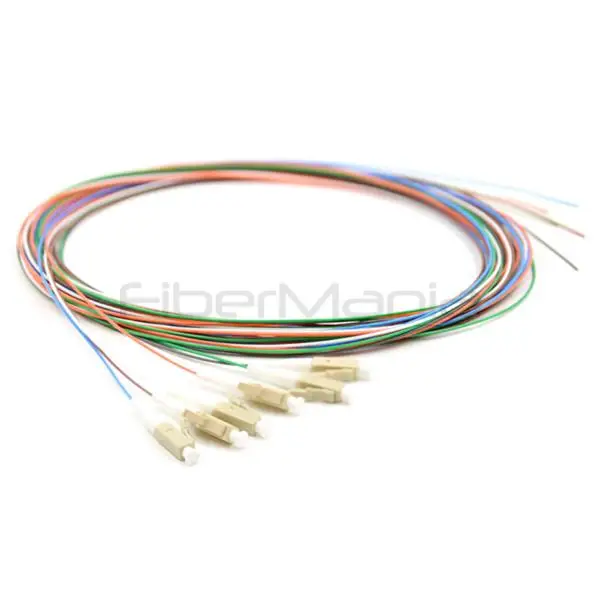

6 Fibers LC/UPC Multimode 62.5/125µm Color-Coded Fiber Optic Pigtail Unjacketed
Categories:
Product Highlights:
-
6 Fibers LC/UPC Multimode 62.5/125µm Fiber Optic Pigtail, unjacketed
-
Color-coded strands for easy identification and organized installation
-
Low insertion loss and high return loss for reliable network performance
-
FiberMania provides OEM/ODM customization, free sample evaluation, fast 3-7 day delivery, and 1-3 year guarantee
Table of Contents
Description
The 6 Fibers LC/UPC Multimode Fiber Optic Pigtail is designed for high-density multimode network applications. Each of the six fiber strands is terminated with an LC/UPC connector on one end and left unjacketed on the other, allowing for direct fusion splicing to drop cables. This design eliminates the need for field terminations and reduces installation time while maintaining signal integrity.
FiberMania produces these pigtails with high-quality 62.5/125µm multimode fibers. Each fiber strand is color-coded according to industry standards for easy identification and organized installation. The unjacketed design allows flexibility when installing into patch panels, distribution frames, or network enclosures. Rigorous quality control ensures consistent optical performance and durability for reliable network connections.
This pigtail is ideal for applications requiring precise multimode fiber connectivity in telecommunications, enterprise networks, and CATV systems.
Specification
| Product Type | Color-Coded Pigtail |
|---|---|
| Fiber Mode / Type | MM 62.5/125µm |
| Number of Fibers / Cores | 6 |
| Connector Type | LC/UPC |
| Cable Length | Unjacketed |
| Jacket Type & Color | None |
| Cable Diameter | – |
| Duplex / Simplex | Simplex |
| Transmission Speed | 1–10G |
| Operating Environment | Indoor |
| Standards Compliance | ISO/IEC 11801, TIA/EIA, RoHS |
| Features | 6 Fibers Color-Coded MM |
Features
-
Low insertion loss and low back reflection loss
-
High durability and reliable exchangeability
-
Color-coded fibers for easy identification
-
Meets ISO9001, RoHS, and Bellcore GR-326 core standards
-
Available in 4, 6, 8, 12, 24 fiber versions
Applications
-
CATV, LAN, and WAN networks
-
Test and measurement systems
-
Telecommunication networks
-
Premises installations
-
Video, broadcast, and military device terminations
Q&A
Q1: Can this pigtail support high-speed multimode networks?
A1: Yes, the 62.5/125µm fibers are suitable for CATV, LAN, and WAN applications.
Q2: Is the unjacketed design durable?
A2: Yes, each fiber is carefully packaged to prevent breakage during handling and installation.
Q3: Can I request a different fiber count or connector type?
A3: Yes, FiberMania provides OEM/ODM services for custom fiber counts and connectors.
Q4: How does the color-coded design help?
A4: It simplifies identification and organized installation, reducing errors.
Q5: Is this suitable for high-density installations?
A5: Yes, the unjacketed fibers allow flexibility in tight patch panels and distribution frames.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
