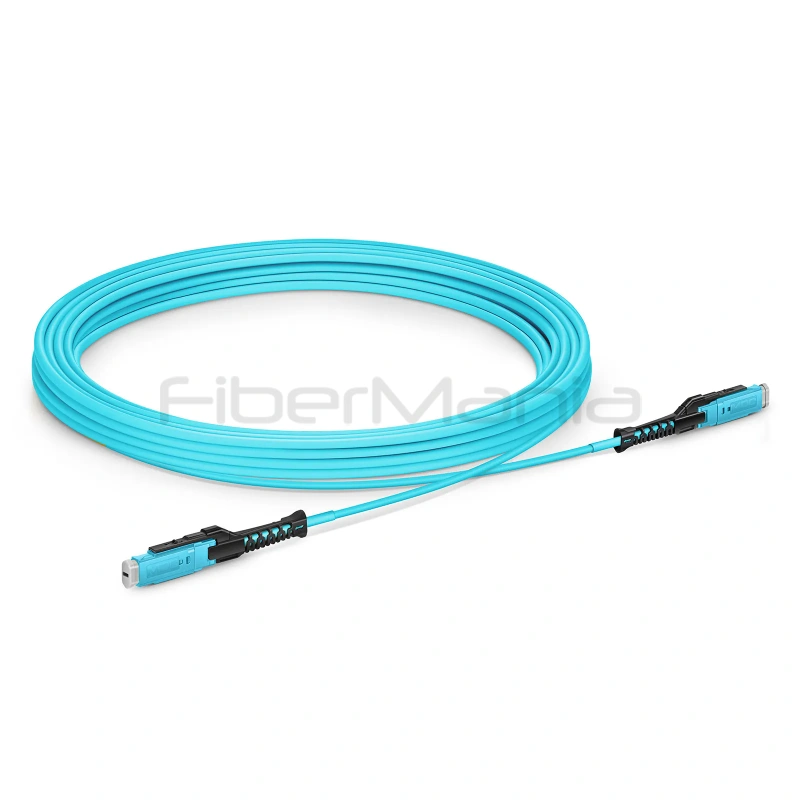

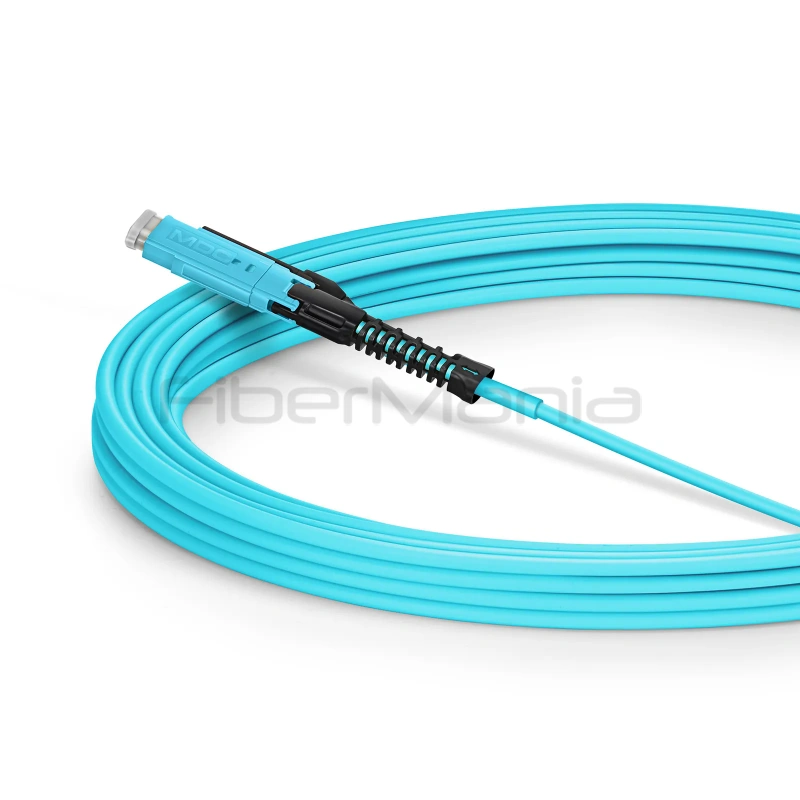

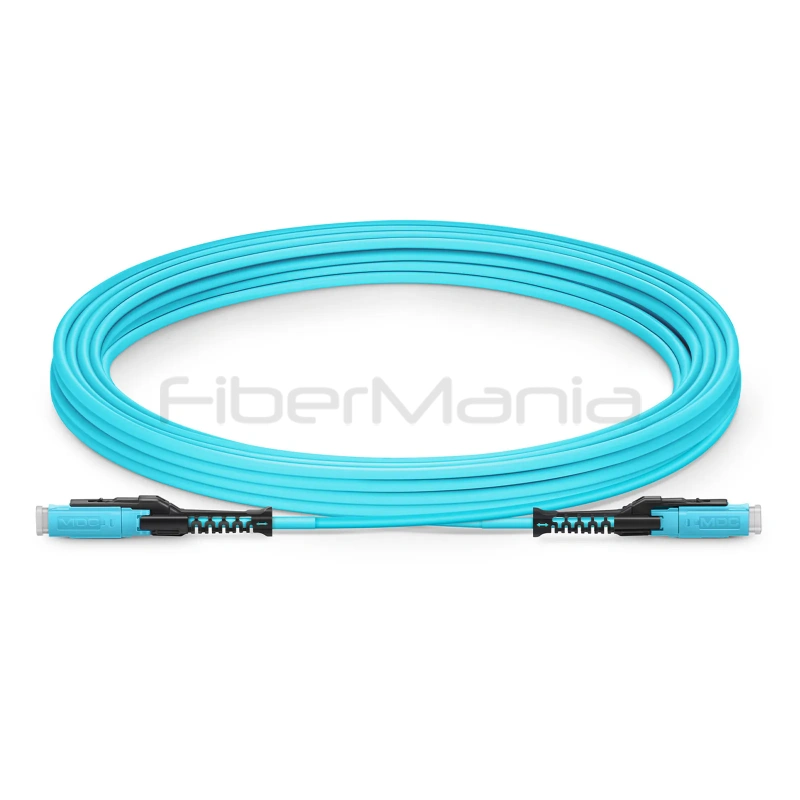

5m (16ft) MDC UPC Duplex to MDC UPC Duplex OM4 Multimode Fiber Patch Cable, 2.0mm OFNR Uniboot Push-Pull, Aqua
Categories:
Product Highlights:
- 5m (16ft) MDC to MDC duplex connection
- OM4 50/125μm multimode fiber
- Compact 2.0mm OFNR Uniboot cable
- Push-pull MDC connectors
- ≤0.25dB typical insertion loss
- ≥50dB UPC return loss
- A (Tx) to B (Rx) polarity
Table of Contents
Description
This 5m (16ft) MDC UPC duplex to MDC UPC duplex fiber patch cable is designed for compact, high-density multimode fiber connectivity in data center environments. It uses OM4 50/125μm multimode fiber in a 2.0mm OFNR riser-rated Uniboot cable, providing efficient routing and cable management in space-constrained installations. The US Conec MDC UPC duplex connectors feature a push-pull design for convenient installation and removal, while the UPC-polished interfaces provide ≤0.25dB typical insertion loss and ≥50dB return loss. With A (Tx) to B (Rx) polarity, the cable is suitable for 100G, 400G, and compatible 800G data center connections, as well as high-density patching and equipment interconnection.
Specification
| Cable Length | 5m (16ft) |
|---|---|
| Connector Type | US Conec MDC UPC Duplex Uniboot |
| Connector Configuration | Duplex, 2-Fiber |
| Fiber Type | Multimode OM4 |
| Fiber Size | 50/125μm |
| Polish Type | UPC |
| Connector Design | Push-Pull Boot, Uniboot |
| Insertion Loss | ≤0.25dB Typical |
| Return Loss | ≥50dB (UPC) |
| Cable Diameter | 2.0mm |
| Cable Jacket | OFNR Riser |
| Cable Color | Aqua |
| Polarity | A (Tx) to B (Rx) |
| Operating Temperature | −20°C to +70°C |
| Standards | IEC 61754-36 / TIA-604-38 / RoHS |
Features
- MDC UPC duplex to MDC UPC duplex configuration
- 5m (16ft) cable length
- 2-fiber OM4 multimode fiber
- 50/125μm fiber construction
- 2.0mm OFNR riser-rated cable
- Uniboot design for simplified cable management

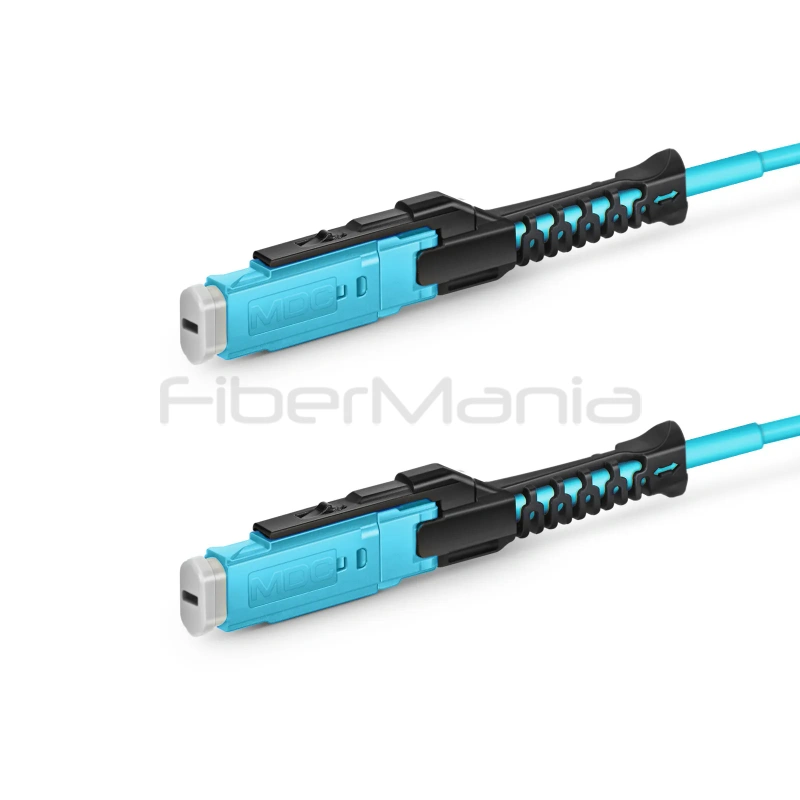

- Push-pull MDC connector design
- ≤0.25dB typical insertion loss
- ≥50dB UPC return loss
- A (Tx) to B (Rx) polarity
- Aqua cable jacket for multimode fiber identification
- Compliant with IEC 61754-36, TIA-604-38, and RoHS
Applications
- 100G data center connectivity
- 400G data center interconnections
- Compatible 800G network connections
- High-density switch-to-switch connections
- Server and transceiver interconnection
- MDC patch panels and cassettes
- Rack-level fiber patching
- High-density multimode fiber cabling
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
