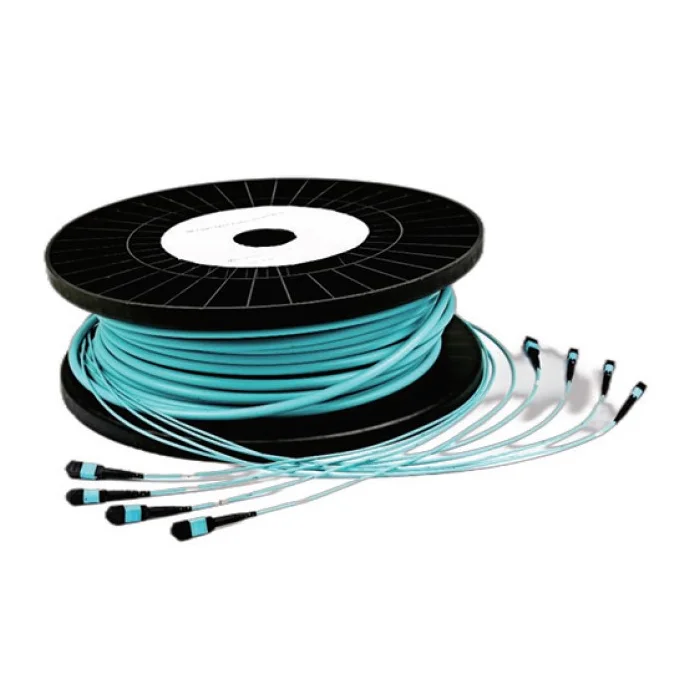

4×MPO to 4×MPO Trunk Patch Cord 48/72/96 Fiber | High Density MPO Cable Custom
Categories:
Product Highlights:
- High-density 4×MPO trunk cable supporting 48 to 96 fibers for efficient data transmission
- Pre-terminated design enables fast deployment and consistent optical performance
- Optimized for space-saving and high-speed applications up to 400G
Table of Contents
Description
The 4×MPO to 4×MPO trunk patch cord is engineered to meet the growing demands of high-density fiber optic infrastructure in modern data centers and enterprise networks. Designed with four MPO connectors on each end, this solution supports fiber counts of 48, 72, and 96 cores, enabling efficient aggregation of multiple optical channels within a single cable assembly. It simplifies large-scale cabling architectures while maintaining high performance and reliability.
Built for structured cabling environments, this MPO trunk cable optimizes space utilization and reduces cable congestion in racks and pathways. By consolidating multiple duplex connections into a compact multi-fiber interface, it streamlines deployment and improves airflow management within cabinets. The pre-terminated design minimizes installation time and eliminates the variability associated with field termination, ensuring consistent optical performance across all links.
The cable is manufactured using high-quality components and strict production processes to ensure low insertion loss, high return loss, and long-term stability. It is fully compatible with high-speed network applications, including 40G, 100G, 200G, and 400G systems, making it a scalable and future-ready solution for evolving network infrastructures.
4 MPO – 4 MPO Trunk Cable Features
Specification
| Connector Type | 4×MPO/MTP to 4×MPO/MTP |
|---|---|
| Fiber Count | 48 / 72 / 96 Fibers |
| Polarity | Type A / Type B / Type C |
| Fiber Mode | OS2 / OM3 / OM4 / OM5 |
| Cable Length | Customizable |
| Cable Jacket | LSZH / PVC / OFNP |
| Insertion Loss | ≤ 0.35dB (Low Loss available) |
| Return Loss | ≥ 60dB (SM) / ≥ 20dB (MM) |
| Operating Temperature | -20°C to +70°C |
| Standards | IEC / TIA compliant |
| Testing | 100% factory tested |
Features
- Available in 48, 72, and 96 fiber configurations
- 4×MPO connectors on each end for high-density connectivity
- Pre-terminated for fast and plug-and-play installation
- Low insertion loss and high return loss performance
- Compact design reduces cable bulk and improves airflow
- Supports high-speed Ethernet applications up to 400G
- Factory tested for consistent quality and reliability
- Customizable fiber type, polarity, length, and jacket material
Applications
- High-density data centers
- Structured cabling systems
- Spine-leaf network architectures
- Cloud computing and hyperscale environments
- Storage area networks (SAN)
- High-performance computing (HPC) systems
FAQ
Q1: What is the advantage of using a 4×MPO trunk cable instead of multiple duplex cables?
A: A 4×MPO trunk cable consolidates multiple fiber links into one compact assembly, reducing cable clutter, improving airflow, and simplifying installation in high-density environments.
Q2: Can this cable support 400G applications?
A: Yes, the cable is designed to support high-speed applications including 40G, 100G, 200G, and 400G, depending on the system architecture and transceivers used.
Q3: Is customization available for this MPO trunk cable?
A: Yes, parameters such as fiber count, length, polarity, connector type (MPO/MTP), and jacket material can be fully customized based on project requirements.
Q4: How is the quality of the cable ensured?
A: Each cable undergoes strict factory testing, including insertion loss and return loss measurements, to ensure stable and reliable performance.
Q5: What industries typically use this type of cable?
A: It is widely used in data centers, telecom networks, cloud infrastructure, and enterprise IT environments requiring high-density fiber connectivity.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
