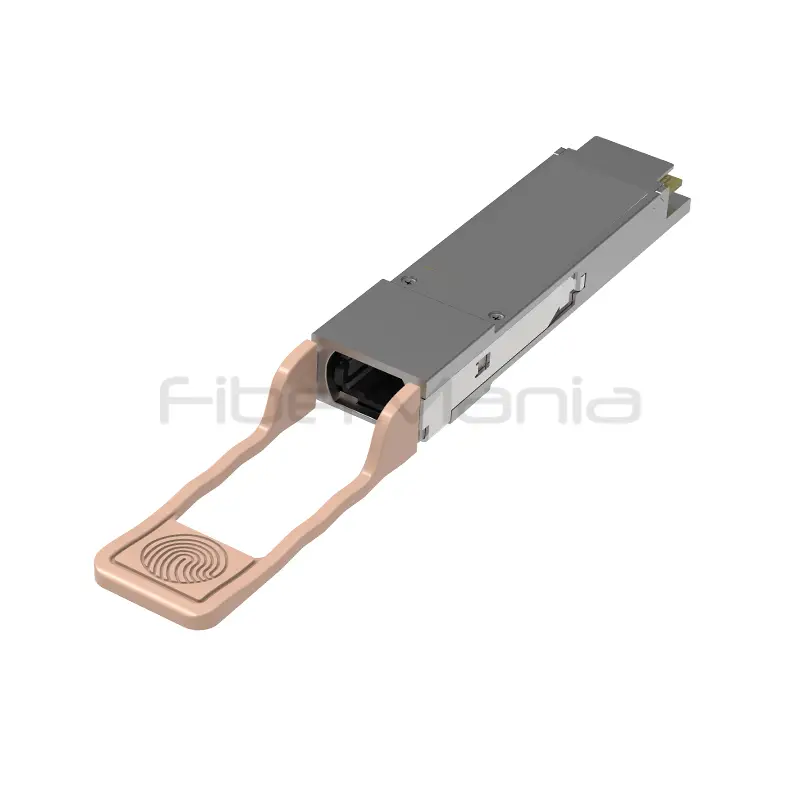

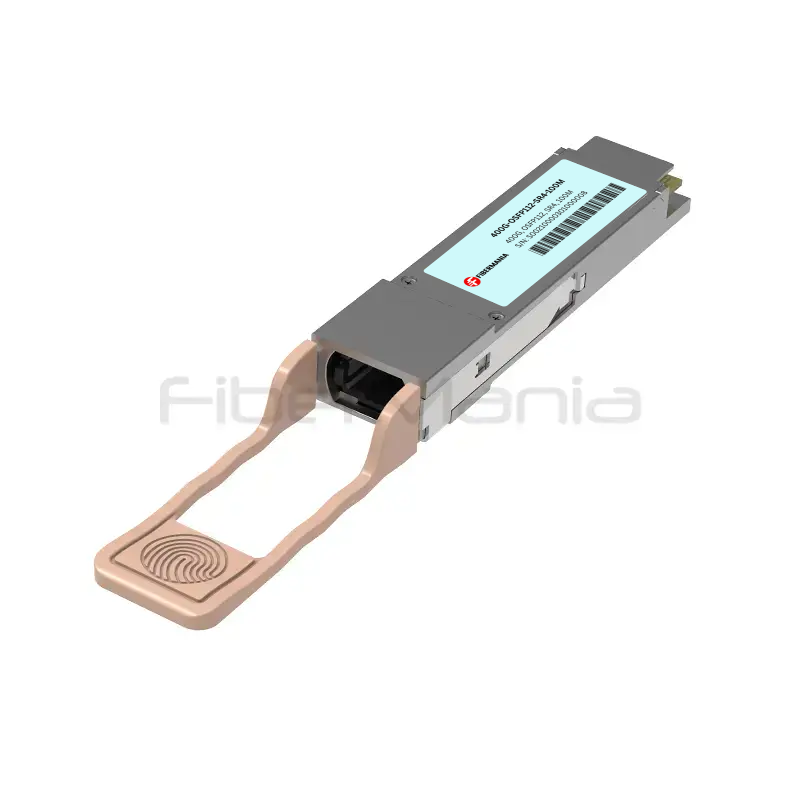

400G OSFP112 SR4 Optical Transceiver 850nm 100m MPO PAM4 400GAUI-4
Categories:
Product Highlights:
-
High-speed 400G OSFP112 SR4 transceiver utilizing 4-lane PAM4 technology for efficient 100m multimode fiber transmission.
-
Features a low-power 850nm VCSEL array design, fully compliant with CMIS 4.0 and OSFP MSA standards for seamless integration.
-
Equipped with DDM functionality and 400GAUI-4 interface to ensure robust performance in demanding data center environments.
-
FiberMania specializes in professional OEM/ODM and white-label manufacturing, offering tailored firmware and branding solutions to help you scale your fiber optic business.
Table of Contents
Description
The FiberMania 400G OSFP112 SR4 optical transceiver is a high-performance module designed for short-reach data communication and interconnect applications. By leveraging four independent lanes of 106.25 Gbps PAM4 modulated signals, this transceiver achieves an aggregate bandwidth of 400 Gbps. It utilizes an integrated 850nm VCSEL array and a high-sensitivity PD array to ensure reliable data transmission over multimode fiber, supporting distances up to 100 meters.
This module is fully compliant with the OSFP Management Interface Specification (CMIS) 4.0 and the OSFP MSA 5.0. It features a hot-pluggable design for seamless field upgrades and maintenance, operating on a single +3.3V power supply. With its advanced 400GAUI-4 electrical interface, it provides a streamlined path for data centers transitioning to next-generation high-density networking environments while maintaining power efficiency with a maximum consumption of 9W.
Specification
| Form Factor | OSFP112 |
|---|---|
| Data Rate | 425 Gbps (4 x 106.25 Gbps) |
| Wavelength | 850 nm |
| Fiber Type | Multi-mode Fiber (MMF) |
| Max Distance | 60m on OM3 / 100m on OM4 & OM5 |
| Optical Interface | MPO-12/APC or MPO-12/PC |
| Electrical Interface | 400GAUI-4 (80-pin OSFP Connector) |
| Modulation | PAM4 |
| Transmitter Type | 850nm VCSEL Array |
| Receiver Type | PIN Photodiode Array |
| Power Consumption | < 9W |
| Supply Voltage | +3.3V |
| Digital Diagnostic Monitoring (DDM) | Supported |
| Management Interface | CMIS 4.0 |
| Operating Case Temperature | 0 to 70°C (32 to 158°F) |
| Compliance | OSFP MSA 5.0, RoHS 2.0, CE, FCC |
Features
-
Aggregate data rate up to 400 Gbps via 4×106.25 Gbps PAM4 modulation
-
Integrated 850nm VCSEL and PIN photodiode arrays
-
Support for 400GAUI-4 electrical interface
-
Compliant with OSFP MSA 5.0 and CMIS 4.0 standards
-
Maximum transmission distance of 100m over OM4 MMF
-
Built-in digital diagnostic monitoring (DDM) for real-time status tracking
-
Standard MPO-12/APC or MPO-12/PC connector interface
-
Hot-pluggable OSFP form factor for easy installation
-
Power consumption less than 9W
-
Operating case temperature range of 0 to 70°C
-
Fully RoHS 2.0 compliant
Application
-
400G Ethernet data center interconnects
-
High-performance computing (HPC) clusters
-
Enterprise core networking and distribution layers
-
In-rack and inter-rack high-speed cabling
-
InfiniBand NDR connectivity
Q&A
Q: Does this OSFP112 SR4 module support backward compatibility with older 400G OSFP slots? A: Yes, as long as the host switch supports the OSFP112 mechanical form factor and the 400GAUI-4 electrical interface. It follows the standard CMIS 4.0 protocol to ensure smooth communication with the host system.
Q: How does the PAM4 modulation benefit the 400G transmission compared to NRZ? A: PAM4 allows for doubling the data rate within the same bandwidth by using four signal levels instead of two. This enables the 106.25 Gbps per lane speed required for 400G performance while maintaining signal integrity over short distances.
Q: Can FiberMania provide custom labeling and firmware coding for specific switch compatibility? A: Absolutely. As a specialist in OEM and private label services, we can customize the EEPROM coding, labeling, and packaging to match your brand identity and ensure 100% compatibility with various network equipment vendors.
Q: What is the primary advantage of the 400GAUI-4 interface over previous generations? A: The 400GAUI-4 interface reduces the lane count from 8 to 4, which simplifies the internal architecture of the module and the host board. This leads to lower power consumption, reduced complexity, and higher port density in modern data centers.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
