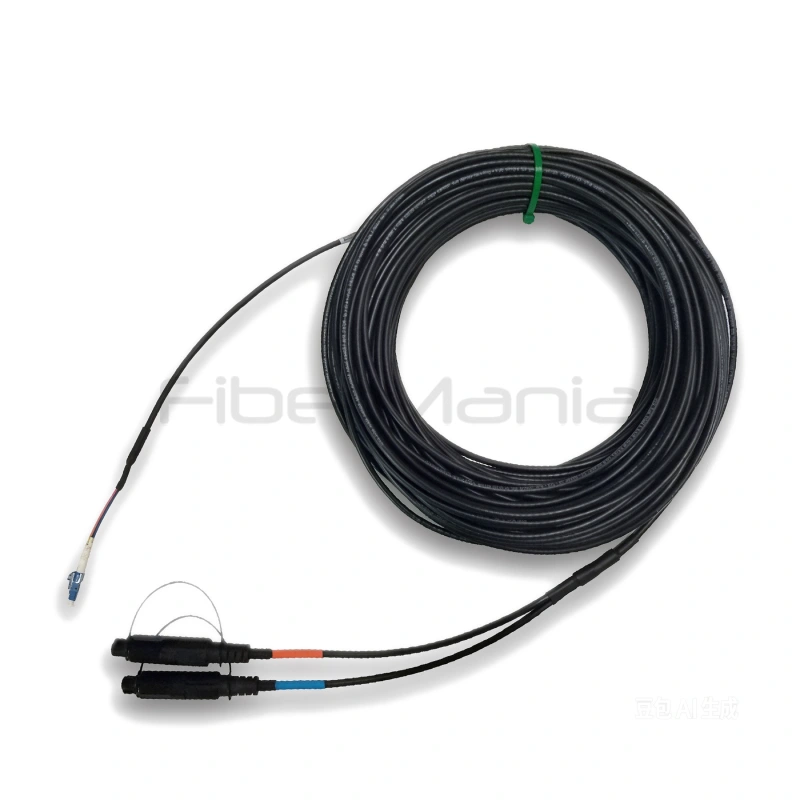

2-Core OptiTap SC/APC to LC/UPC Duplex Fiber Optic Cable, G.657.A1, 5.4mm, 30m
Categories:
Product Highlights:
- 2-core duplex single-mode fiber optic cable
- OptiTap SC/APC to LC/UPC connector configuration
- G.657.A1 bend-insensitive fiber
- 30 m length with a 5.4 mm nominal outer diameter
- Custom lengths and configurations available
Table of Contents
Description
This 2-core OptiTap SC/APC to LC/UPC duplex fiber optic cable is designed for connecting compatible fiber distribution interfaces and optical networking equipment in telecommunications and fiber access networks. It features duplex single-mode fiber, an OptiTap SC/APC connector on one end, and an LC/UPC duplex connector on the other. The G.657.A1 fiber provides improved bend performance for flexible cable routing, while the 5.4 mm outer diameter and 30 m length support practical installation in space-constrained environments. It is suitable for FTTA connections, outdoor fiber distribution systems, and telecommunications equipment interconnections, subject to the cable’s environmental rating and installation requirements.
Specification
| Fiber Count | 2 Cores |
|---|---|
| Connector A | LC/UPC Duplex |
| Connector B | OptiTap SC/APC Duplex |
| Fiber Type | Single-Mode Fiber |
| Fiber Grade | G.657.A1, as specified |
| Cable Length | 30 m |
| Outer Diameter | 5.4 mm |
| Furcation Diameter | 2 mm |
| Breakout Length, Side A | 6 in |
| Breakout Length, Side B | 12 in |
| Attenuation at 1550 nm | 0.25 dB/km |
| Insertion Loss | < 0.5 dB |
| Return Loss | > 50 dB |
| Attenuation at 1310 nm | 0.40 dB/km |
| Jacket Rating | OFNR, as specified |
| Operating Temperature | -20°C to +70°C |
Features
- 2-core single-mode fiber optic cable
- OptiTap SC/APC to LC/UPC duplex connector configuration
- G.657.A1 bend-insensitive fiber
- 30 m cable length
- 5.4 mm nominal outer diameter
- Black outer jacket
- 6-inch and 12-inch breakout lengths at the respective ends
- Specified insertion loss below 0.5 dB
- Specified return loss above 50 dB
- Custom cable lengths and configurations available upon request
Applications
- Fiber-to-the-antenna (FTTA) systems
- Fiber access and distribution networks
- Telecommunications equipment connections
- Remote radio unit (RRU) connectivity with compatible interfaces
- Optical network terminal and distribution equipment interconnections
- Custom fiber optic connections for network infrastructure projects
FAQ
Can this cable connect OptiTap and LC interfaces?
Yes. The assembly connects a compatible OptiTap SC/APC duplex interface at one end to an LC/UPC duplex interface at the other. Each end must connect to its corresponding compatible port.
What are the benefits of G.657.A1 fiber?
G.657.A1 fiber offers improved macrobending performance compared with conventional single-mode fiber under specified test conditions. This makes it useful for installations where cable routing space is limited, although the cable’s minimum bend radius must still be observed.
Is this cable suitable for direct outdoor installation?
The original specification lists an OFNR jacket. OFNR is a riser-rated designation and does not independently confirm resistance to outdoor weather, UV exposure, or moisture. For direct outdoor installation, verify the complete cable’s environmental rating or select an appropriate outdoor-rated construction.
Can the cable length and connector configuration be customized?
Yes. Customization may be available for cable length, connector combinations, fiber grade, jacket construction, and breakout dimensions. Provide the required specifications and application details for compatibility and feasibility assessment.
What should be confirmed before ordering?
Confirm the connector interfaces, fiber grade, cable length, breakout dimensions, insertion loss requirements, and installation environment. The original specifications also list SMF-28® Ultra and G.657.A1; these should be verified against the actual fiber used before ordering.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
