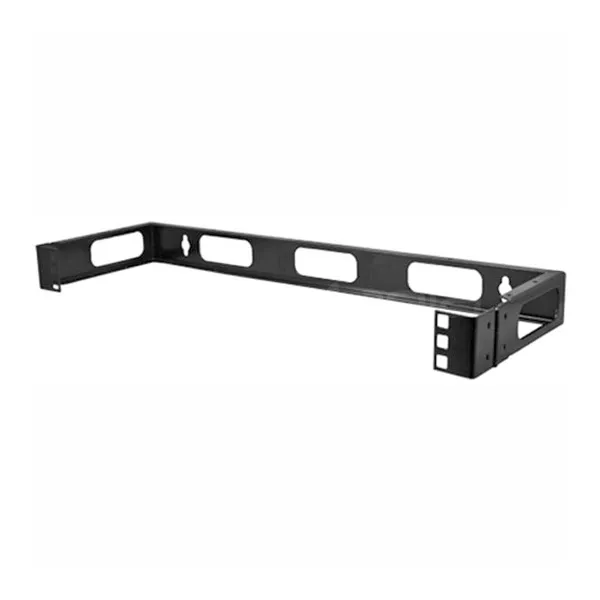

1U Hinged Wall Mount Bracket 1.75″x19″x6.5″
Categories:
Product Highlights:
The 1U hinged wall mount bracket provides a compact and efficient solution for mounting 19-inch rack equipment in limited spaces. Its swing-out design allows easy cable access, while the sturdy steel construction ensures reliable support. FiberMania also offers OEM and customization services to meet diverse project and branding needs.
Table of Contents
Description
The 1U Hinged Wall Mount Bracket is a practical and space-saving solution for mounting networking equipment in environments where a full rack cabinet is not required. Designed for standard 19-inch rack equipment, this bracket provides a compact and efficient way to secure patch panels, switches, and other rack-mounted devices directly to the wall.
Featuring a hinged swing-out design, the bracket allows easy rear access to cables and connections, significantly simplifying installation and maintenance. With a depth of 6.5 inches, it offers sufficient space for cable management while maintaining a low-profile footprint, making it ideal for tight or confined spaces.
Constructed from durable steel, this wall mount bracket ensures strong load capacity and long-term reliability. Its simple yet functional design makes it suitable for both professional network installations and small-scale setups where accessibility and organization are essential.
Specification
| Dimensions (H x W x D) | 1.75" x 19" x 6.5" |
|---|---|
| Height (U) | 1U |
| Material / Finish | Steel |
| Features / Notes | Hinged, swings 160°, ambient cooling, includes 10pcs cage nuts & screws |
| Applications | Wall-mount equipment |
Features
-
Standard 1U height compatible with 19-inch rack equipment
-
Hinged swing-out design for easy rear access and maintenance
-
6.5-inch depth provides space for cable routing
-
Durable steel construction for strength and stability
-
Wall-mounted design saves floor space
-
Easy installation with pre-drilled mounting holes
-
Ideal for patch panels, switches, and other rack devices
Applications
-
Small office and home office (SOHO) network setups
-
Telecommunications and structured cabling systems
-
Mounting patch panels and network switches
-
IT closets and confined installation environments
-
Temporary or permanent wall-mounted network installations
FAQs
Q1: What type of equipment can this bracket support?
It is designed for standard 19-inch rack-mounted equipment such as patch panels, network switches, and cable management panels.
Q2: What is the benefit of the hinged design?
The hinged (swing-out) design allows easy access to the rear of the equipment, making cable installation and maintenance more convenient.
Q3: Is the bracket suitable for heavy equipment?
It is suitable for lightweight to medium-weight rack equipment. For heavier devices, load capacity should be evaluated based on installation conditions.
Q4: Can this be installed in small spaces?
Yes, its compact design makes it ideal for tight spaces such as network closets or small offices.
Q5: Does it come with mounting hardware?
This depends on the packaging option, which can be customized based on your requirements.
Q6: Do you provide custom sizes or branding?
Yes, FiberMania supports OEM services including custom sizing, finishes, and private label branding.
