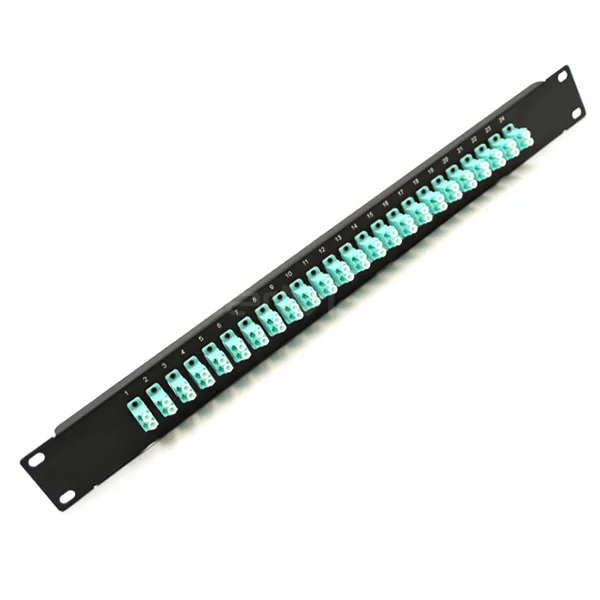

1U 19” LC Adapter Panel, 24 Ports, Loaded With LC Duplex OM3 Multimode Adapter
Categories:
Product Highlights:
-
1U 19-inch fiber optic adapter panel with 24 LC duplex OM3 multimode adapters
-
Black powder-coated frame, high-density fiber management solution
-
Pre-terminated adapters for fast installation and reliable performance
-
OEM/ODM customization options available
Table of Contents
Description
The 1U 19-inch LC adapter panel from FiberMania is designed for efficient fiber management and high-density connectivity in modern data centers and telecommunication environments. Each panel is pre-loaded with 24 LC duplex OM3 multimode adapters, enabling fast and hassle-free installation, reducing labor time and cost.
Constructed with a sturdy black powder-coated metal frame, the panel provides reliable durability and stability in standard 19-inch racks. The compact 1U form factor saves space while accommodating high-density fiber connections. FiberMania also offers customization options, including logo printing and specific port configurations to meet your project requirements.
Specification
| Form Factor | 1U |
|---|---|
| Rack Standard | 19-inch |
| Mounting Type | Rack-mount |
| Port Capacity | 24 ports |
| Effective Fiber Ports | 48 LC ports |
| Adapter Connector Type | LC Duplex |
| Adapter Polish Type | UPC |
| Fiber Type | Multimode OM3 |
| Fiber Core / Cladding | 50/125 µm |
| Adapter Configuration | Pre-loaded |
| Panel Material | Steel |
| Surface Finish | Black powder-coated |
| Color | Black |
| Installation Method | Rack mount, snap-in adapters |
| Application Environment | Indoor |
| Typical Applications | Data center, high-speed LAN |
| Network Types | LAN / WAN |
| Compatibility | Standard 19" racks & enclosures |
| Standards Compliance | IEC, EIA-310, RoHS |
Features
-
19-inch rack mountable with 1U height
-
Loaded with 24 LC duplex OM3 multimode adapters
-
Black powder-coated metal construction
-
Pre-terminated adapters for quick installation
-
Custom logo and configurations available
-
High-density fiber management solution
Applications
-
Data centers and server rooms
-
Network installations and telecommunication closets
-
Fiber optic distribution and patching
-
LAN, WAN, and enterprise networks
Q&A
-
Can the panel support LC single-mode adapters instead of OM3 multimode?
-
Yes, FiberMania offers customization for LC single-mode or other adapter types.
-
-
Is the panel compatible with high-density racks?
-
Yes, the 1U form factor fits standard 19-inch racks and saves valuable space.
-
-
Can the panel be pre-terminated with specific cable lengths?
-
Yes, FiberMania provides OEM/ODM pre-terminated solutions for convenience.
-
-
Can I order panels with fewer or more ports?
-
Yes, port count customization is available to meet project requirements.
-
-
What is the maximum data rate supported by the OM3 adapters?
-
OM3 multimode supports up to 10Gbps for standard applications and can handle higher bandwidth with appropriate transceivers.
-
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
