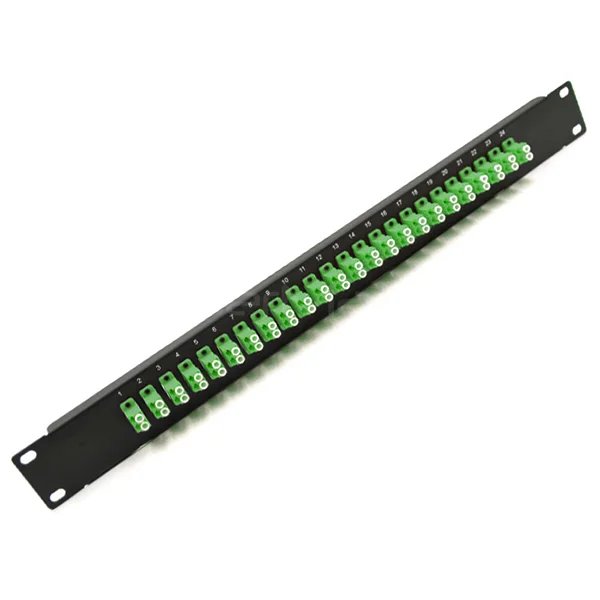

1U 19” Fiber Adapter Panel 24 Ports Loaded With LC/APC Duplex Single Mode Adapters

Name: 1U 19'' Fiber Adapter Panel 24 Ports | FiberMania
SKU: FAP-LCAD24LS

P/N: FAP-LCAD24LS

Categories:

1U 19” Adapter Panel

Product Highlights:

1U 19-inch adapter panel preloaded with 24 LC/APC duplex single mode adapters, offering high-density and stable fiber distribution for data centers and telecom systems.
Rugged black powder-coated metal construction ensures durability and long-term performance in demanding environments.
Designed for quick, easy installation and universal compatibility with standard 19-inch fiber patch panels.
FiberMania provides OEM/ODM customization, including logo branding and tailored adapter configurations to support project-specific and private-label requirements.

Description

This 1U 19-inch fiber adapter panel is designed for high-density single mode fiber distribution in data centers, telecom rooms, and network cabinets. Preloaded with 24 LC/APC duplex adapters, the panel provides 48 LC ports in a compact footprint, making it ideal for environments requiring precise, low-loss, and stable optical connectivity. The LC/APC interface ensures superior return loss performance, making it suitable for long-distance and high-bandwidth transmission.

Constructed with a durable metal frame and finished with a black powder-coated surface, the panel offers strong corrosion resistance and long-term mechanical stability. Its standard 19-inch rack-mount design ensures universal compatibility with fiber patch panels and enclosures. As a fully terminated panel, it significantly reduces installation time and labor costs, allowing technicians to deploy networks quickly and efficiently. Custom logo printing, special adapter configurations, and project-based modifications are available to support OEM and branding needs.

Specification

Form Factor	1U
Rack Standard	19-inch
Mounting Type	Rack-mount
Port Capacity	24 adapter ports
Effective Fiber Ports	48 LC ports (via LC/APC duplex adapters)
Adapter Connector Type	LC/APC Duplex
Polish Type	APC
Fiber Type	Single Mode (OS2)
Fiber Core / Cladding	9/125 µm
Adapter Configuration	Factory pre-loaded
Optical Performance	Low insertion loss, high return loss
Return Loss Performance	APC interface for superior return loss
Panel Material	Steel
Surface Finish	Black powder-coated
Color	Black
Corrosion Resistance	High
Installation Method	Standard rack mounting with screws
Installation Advantage	Reduced installation time due to pre-terminated design
Application Environment	Indoor
Typical Applications	Data centers, telecom rooms
Application Scenarios	FTTH / FTTx distribution, enterprise LAN/WAN
Network Density	High-density fiber connectivity
Compatibility	Standard 19" racks, ODFs, patch panels, enclosures

Features

Standard 19-inch rack-mount 1U panel
Preloaded with 24 LC/APC duplex single mode adapters
Provides 48 LC ports in a compact layout
Black powder-coated steel for durability and corrosion resistance
Streamlined installation with pre-terminated adapter configuration
Compatible with most 19-inch fiber optic patch panels and chassis

Applications

Data centers and server rooms
Telecommunication networks
FTTH/FTTx distribution
Enterprise LAN/WAN systems
High-density fiber connectivity cabinet deployments

Q&A

Q: Can this panel be ordered with different adapter types?
A: Yes, FiberMania supports LC/UPC, SC, ST, and hybrid configurations based on project requirements.

Q: Do you provide fully pre-terminated cable assemblies with the panel?
A: Yes, we can supply panels pre-loaded with pigtails, fiber trays, and splice management based on your request.

Q: Is OEM branding available?
A: Absolutely. We offer logo printing, custom labels, and personalized packaging for distributors.

Q: Are LC/APC adapters suitable for high-speed applications?
A: Yes, LC/APC is widely used in long-distance and high-precision networks due to excellent return loss performance.

Quality Qulifications and Compliance

To get the detailed certification, please go to the Compliance.

Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
