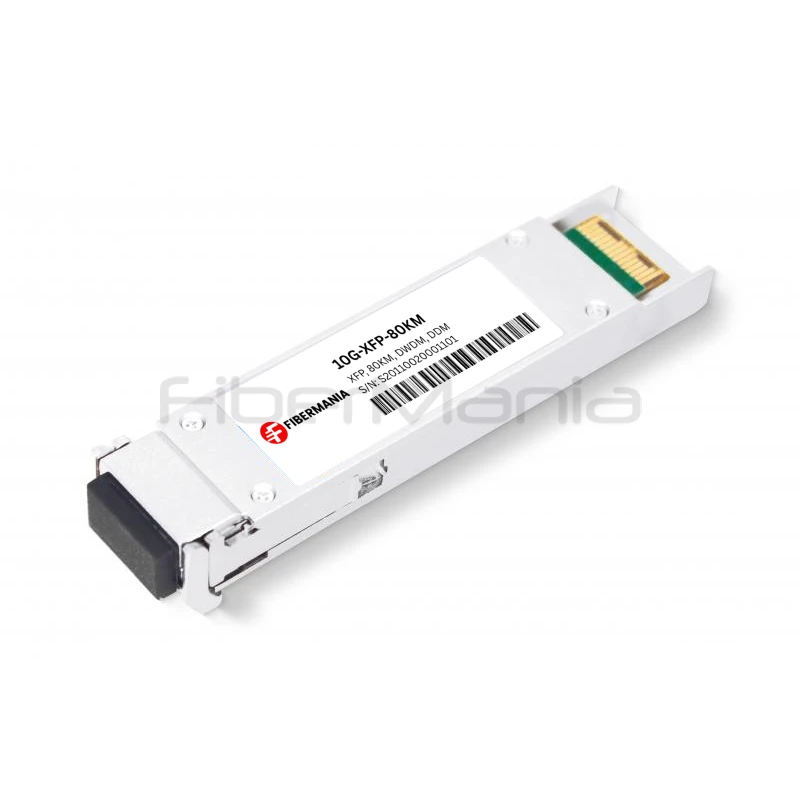

10G XFP 1550nm 80km Optical Transceiver
Categories:
Product Highlights:
- 10G XFP long-reach optical transceiver
- 1550nm cooled EML transmitter
- High-sensitivity APD receiver
- Up to 80km over single-mode fiber
- 9.95Gb/s to 11.3Gb/s data rates
- Duplex LC interface and 2-wire diagnostics
Table of Contents
Description
The 10G XFP 1550nm 80km Optical Transceiver is a long-reach pluggable module designed for high-speed 10G transmission over single-mode fiber. Supporting data rates from 9.95Gb/s to 11.3Gb/s, it provides transmission distances of up to 80km and is suitable for 10G Ethernet, telecom, SONET/SDH, and Fibre Channel applications. The optical design combines a cooled 1550nm EML laser transmitter with a high-sensitivity APD receiver for stable long-distance performance. Featuring a hot-pluggable XFP form factor, Duplex LC optical interface, 30-pin electrical interface, and 2-wire management and diagnostic interface, the module provides flexible integration into compatible switches, routers, optical transport platforms, and other high-density 10G networking equipment.
Mechanical Spec.
Specification
| Form Factor | XFP |
|---|---|
| Data Rate | 9.95Gb/s to 11.3Gb/s |
| Maximum Distance | Up to 80km |
| Wavelength | 1550nm |
| Fiber Type | Single-Mode Fiber (SMF) |
| Fiber Specification | 9/125μm |
| Transmitter | Cooled EML Laser |
| Receiver | APD |

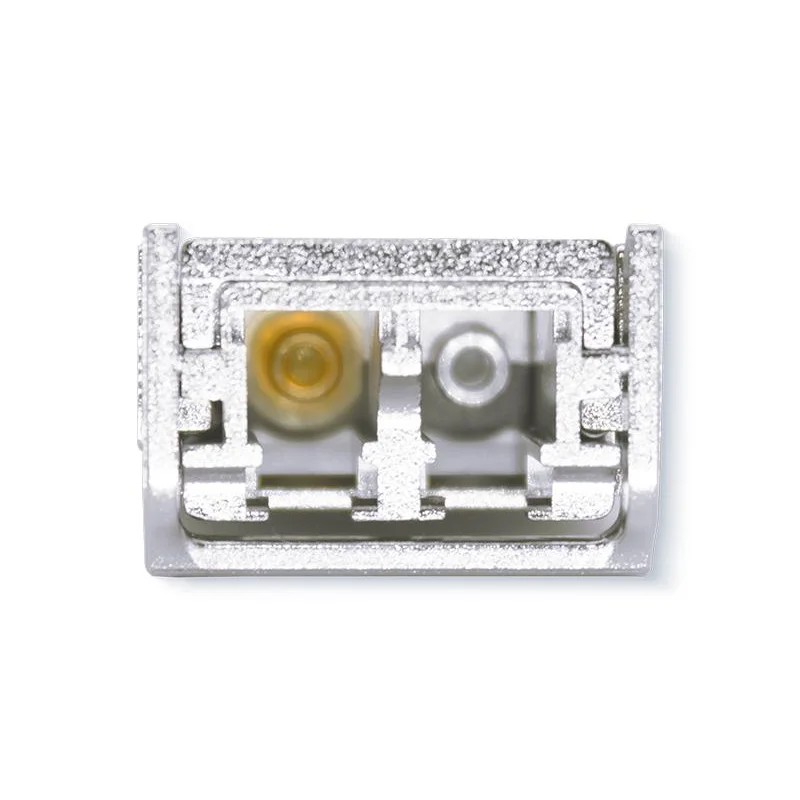

| Optical Interface | Duplex LC |
| Electrical Interface | 30-Pin |
| Electrical Interface Type | XFI AC-Coupled |
| Management Interface | 2-Wire Serial Management & Diagnostic Interface |
| Power Supply | Single +3.3V |
| Power Dissipation | <3.5W |
| Form Factor Type | Hot-Pluggable |
| Supported Applications | 10GBASE-ZR/ZW, SONET OC-192, SDH STM-64, 10G Fibre Channel |
| Network Type | Ethernet / Telecom / Fibre Channel |
Features
- 10Gb/s-class optical transmission
- Data rates from 9.95Gb/s to 11.3Gb/s
- Up to 80km transmission over single-mode fiber
- 1550nm operating wavelength
- Cooled EML laser transmitter
- High-sensitivity APD receiver
- Hot-pluggable XFP form factor
- Duplex LC optical interface
- 30-pin electrical interface
- 2-wire management and diagnostic interface
- Designed for long-distance optical transmission
Applications
- 10G Ethernet networks
- Telecom networks
- SONET/SDH systems
- Fibre Channel networks
- Long-distance network links
- Optical transport platforms
- High-density 10G networking equipment
FAQ
What is the maximum transmission distance?
The transceiver supports transmission distances of up to 80km over single-mode fiber, making it suitable for long-reach 10G optical links.
What data rates does the module support?
It supports data rates from 9.95Gb/s to 11.3Gb/s, covering a range of 10G-class Ethernet, telecom, and storage networking applications.
What transmitter and receiver technologies are used?
The module uses a cooled 1550nm EML laser transmitter and a high-sensitivity APD receiver for reliable extended-distance optical transmission.
What connector does the transceiver use?
It features a Duplex LC optical interface for connection to single-mode fiber.
Can it be used for applications other than 10G Ethernet?
Yes. Its supported data-rate range and optical design make it suitable for compatible telecom, SONET/SDH, and Fibre Channel applications in addition to 10G Ethernet.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
