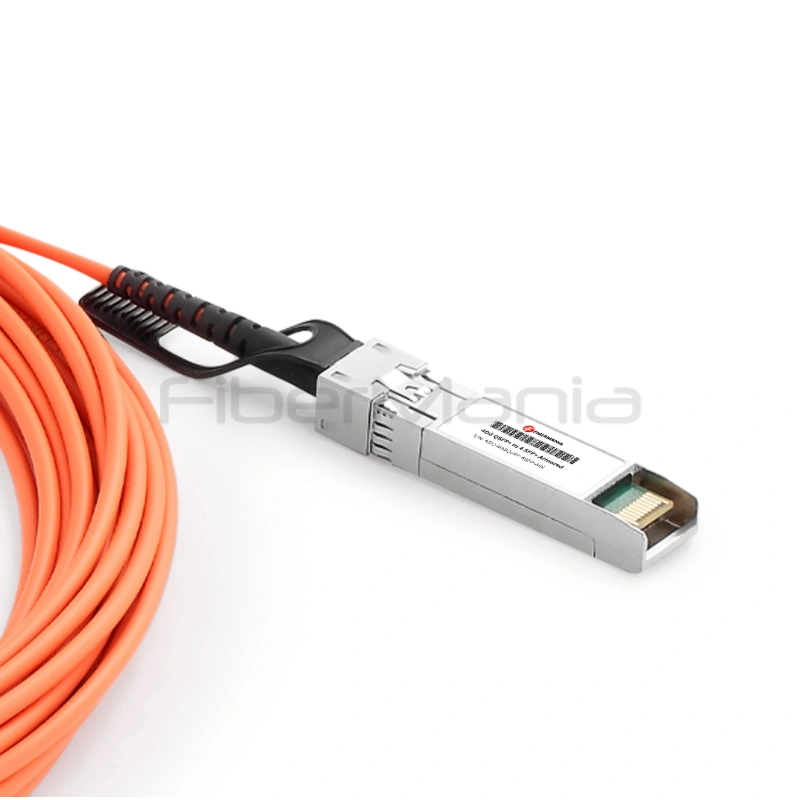

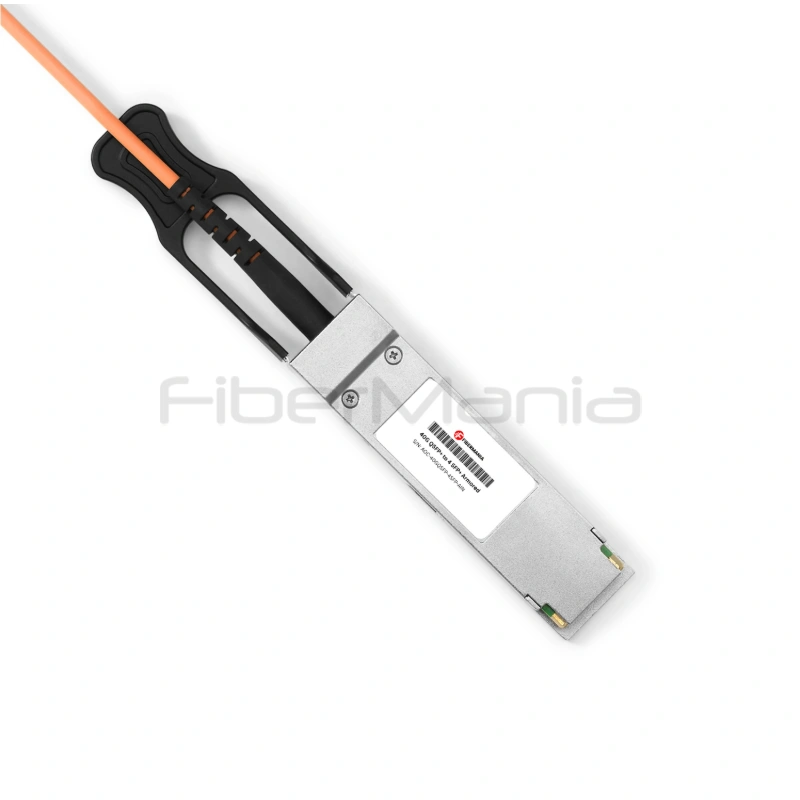

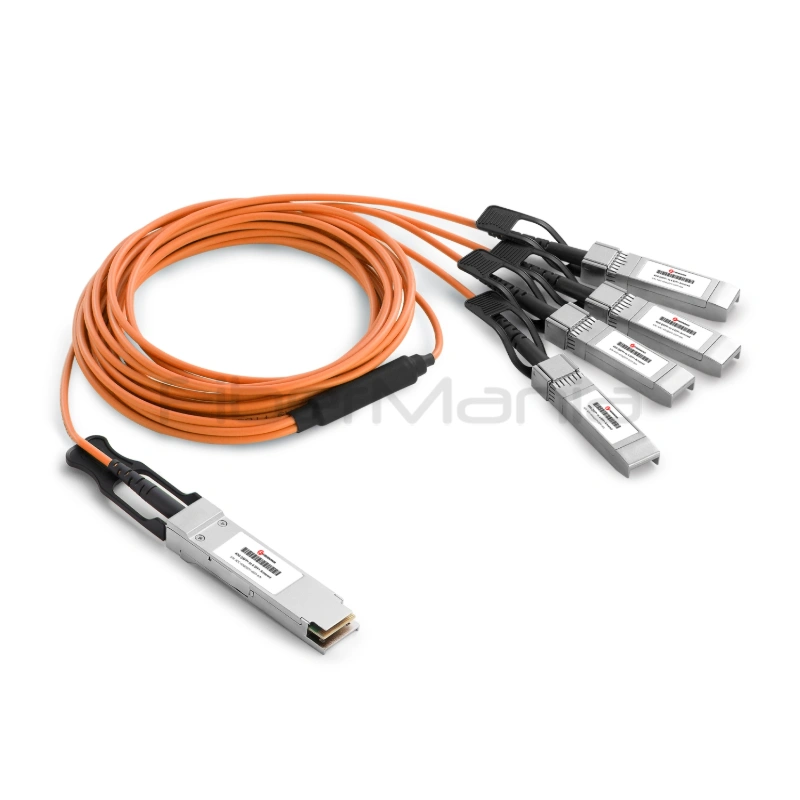

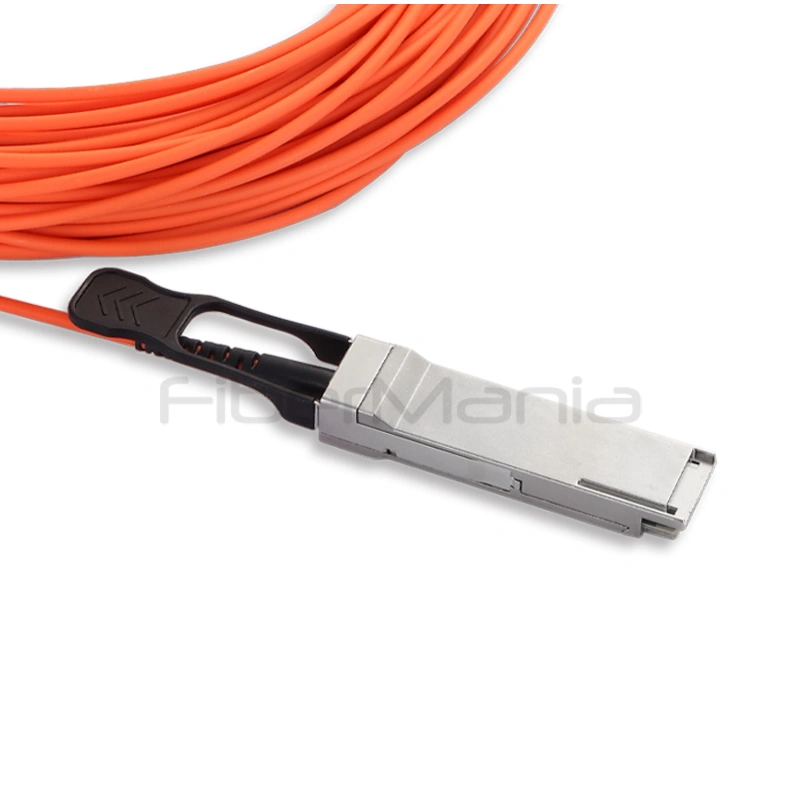

40G QSFP+ to 4×10G SFP+ Active Optical Breakout Cable, Armored, Industrial-Grade
Categories:
Product Highlights:
- 40G QSFP+ to 4×10G SFP+ breakout
- 10.3125Gbps per optical channel
- 850nm VCSEL/PIN optical technology
- Armored industrial-grade construction
- -40°C to +85°C operating temperature
- Integrated optics with DDM/DOM support
- Direct, low-latency QSFP+ to SFP+ connectivity
Table of Contents
Description
The 40G QSFP+ to 4×10G SFP+ Active Optical Breakout Cable (AOC) is a four-channel parallel optical interconnect designed to connect one 40G QSFP+ port to four independent 10G SFP+ ports. Each optical channel supports data rates up to 10.3125Gbps, providing up to 40Gbps of aggregate bandwidth. Using 850nm VCSEL array transmitters, PIN array receivers, and multimode fiber, the cable provides reliable and low-latency optical connectivity for 40G and 10G Ethernet networks. Its armored construction and -40°C to +85°C operating temperature range support demanding industrial deployments, while integrated optical components, low power consumption, and DDM/DOM support simplify installation by eliminating separate transceivers and intermediate fiber assemblies.
Specification
| Connector Configuration | QSFP+ to 4×SFP+ |
|---|---|
| QSFP+ Interface | 38-contact edge connector |
| SFP+ Interface | 20-contact edge connector |
| Form Factor | QSFP+ to SFP+ |
| Aggregate Data Rate | Up to 40Gbps |
| Specified Data Rate | 41.2Gbps |
| Data Rate per Lane | Up to 10.3125Gbps |
| Number of Optical Channels | 4 |
| Transmission | Full-Duplex |
| Wavelength | 850nm |
| Fiber Type | Multimode |
| Fiber Grade | OM2 |
| Maximum Reach | 82m |
| Transmitter | VCSEL Array |
| Receiver | PIN Array |
| Modulation | NRZ |
| CDR | No |
| Inbuilt FEC | No |
| Power Consumption | ≤1.4W @ QSFP+ / ≤0.8W @ SFP+ |
| Power Supply | 3.3V |
| DDM/DOM | Supported |
| Packaging | COB |
| Cable Jacket | LSZH |
Features
- 40G QSFP+ to 4×10G SFP+ breakout configuration
- Four independent 10G optical channels
- Up to 10.3125Gbps per channel
- Up to 40Gbps aggregate bandwidth
- 850nm VCSEL array transmitters
- PIN array receivers
- Multimode fiber transmission
- Armored cable construction
- Industrial operating temperature of -40°C to +85°C
- Integrated optical components
- Low power consumption
- DDM/DOM support
- Direct QSFP+ to SFP+ connectivity
- Plug-and-play deployment
Applications
- 40G to 10G Ethernet breakout
- Switch-to-server connectivity
- Data center network migration
- High-density data center networks
- Industrial Ethernet networks
- Industrial networking equipment
- 40G switch port aggregation and 10G connectivity
- Short-range optical interconnects
FAQ
What is the breakout configuration?
The cable connects one 40G QSFP+ port to four independent 10G SFP+ ports, allowing a single 40G interface to connect directly with four 10G network interfaces.
What data rate does each channel support?
Each optical channel supports up to 10.3125Gbps, providing an aggregate bandwidth of up to 40Gbps across the four channels.
What makes this AOC suitable for industrial environments?
The cable features an armored construction and an extended operating temperature range of -40°C to +85°C, providing additional mechanical protection and reliable operation in demanding environments.
Are separate optical transceivers required?
No. The QSFP+ and SFP+ optical interfaces are integrated into the AOC, eliminating the need for separate optical transceivers and intermediate fiber patch assemblies.
What optical technology does the cable use?
The AOC uses 850nm VCSEL array transmitters and PIN array receivers over multimode fiber to provide reliable short-range optical transmission.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
