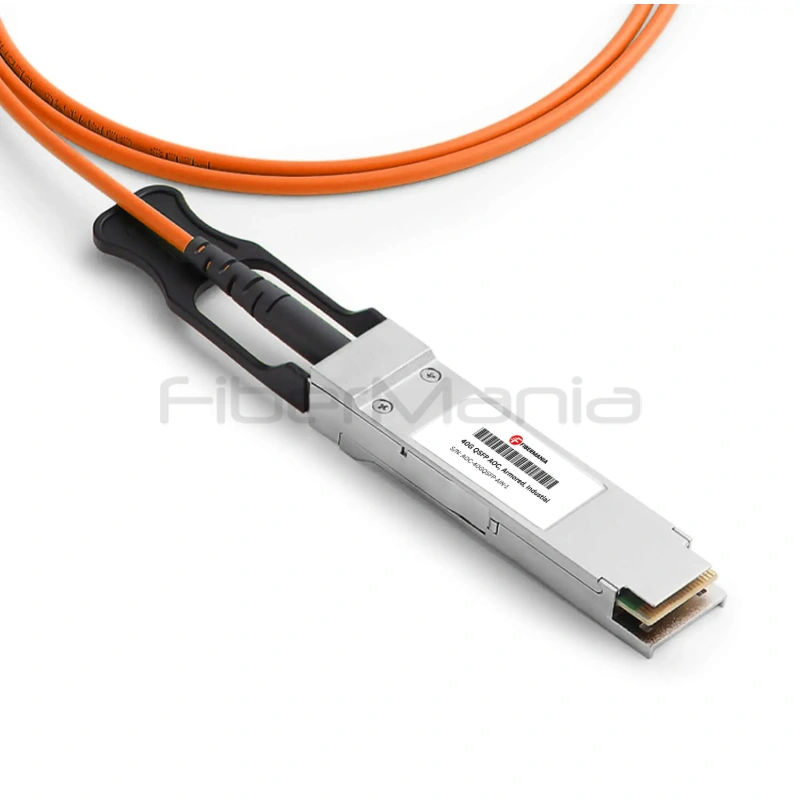

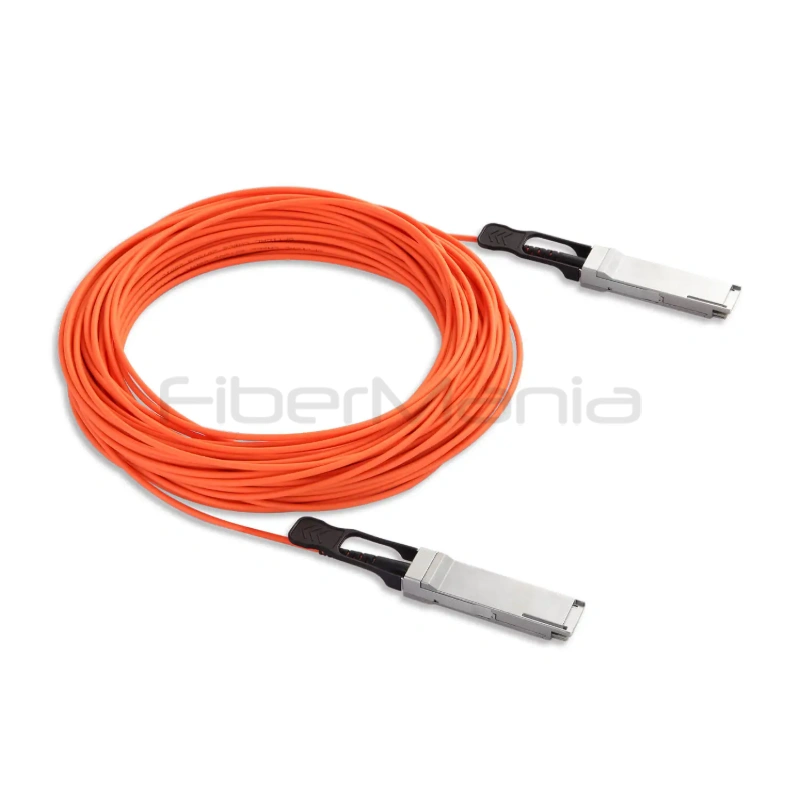

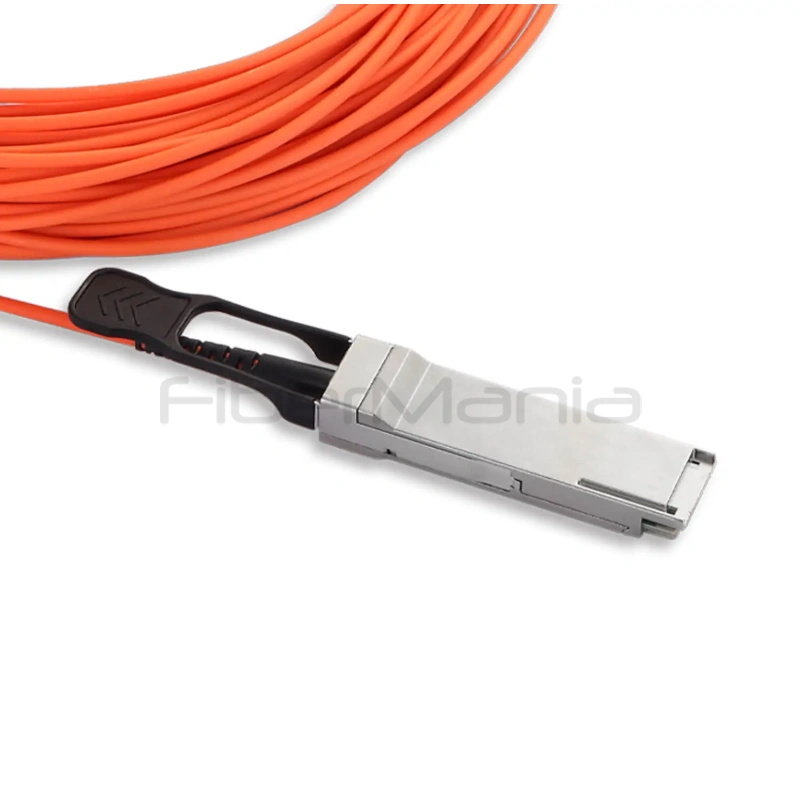

40G QSFP+ Active Optical Cable (AOC), Armored, Industrial-Grade

P/N: AOC-40GQSFP-AIN-1

Categories:

Product Highlights:

  • 40Gbps-class QSFP+ optical connectivity
  • 4 × 10.3Gbps optical lanes
  • 850nm VCSEL and PIN array optics
  • Up to 82m over OM2 and 300m over OM3
  • Armored construction for enhanced protection
  • LSZH jacket
  • Industrial-grade design
  • Suitable for Ethernet and InfiniBand applications

Table of Contents

Description

The 40G QSFP+ Active Optical Cable (AOC) is a four-channel, full-duplex optical interconnect designed for 40 Gigabit Ethernet and compatible InfiniBand FDR/EDR applications. Equipped with QSFP+ connectors at both ends, it supports up to 10.3Gbps per optical lane for 40Gbps-class aggregate bandwidth. The cable integrates 850nm VCSEL array transmitters and PIN array receivers for reliable, low-latency transmission over multimode fiber with low power consumption. Its industrial-grade design combines armored construction and an LSZH jacket for enhanced mechanical protection and deployment flexibility, while supporting up to 82m over OM2 and 300m over OM3 fiber.

Specification

Connector Configuration

QSFP+ to QSFP+

Form Factor

QSFP+

Aggregate Data Rate

Up to 40Gbps

Specified Data Rate

41.2Gbps

Number of Channels

4

Data Rate per Lane

Approx. 10.3Gbps

Transmission

Full-Duplex

Wavelength

850nm

Fiber Type

Multimode

Fiber Options

OM2 / OM3

Maximum Reach

82m (OM2) / 300m (OM3)

Transmitter

VCSEL Array

Receiver

PIN Array

Modulation

NRZ

CDR

No

Inbuilt FEC

No

Power Consumption

≤1.4W per end

Power Supply

3.3V

DDM/DOM

Supported

Packaging

COB

Cable Jacket

LSZH

Features

  • QSFP+ to QSFP+ active optical connection
  • Four-channel full-duplex architecture
  • Up to 10.3Gbps per optical lane
  • 40Gbps-class aggregate data rate
  • 850nm VCSEL array transmitters
  • PIN array receivers
  • Multimode fiber transmission
  • Up to 82m reach over OM2 fiber
  • Up to 300m reach over OM3 fiber
  • Armored construction for enhanced mechanical protection
  • LSZH outer jacket
  • Low power consumption and low-latency transmission
  • Industrial-grade design

Applications

  • 40 Gigabit Ethernet networks
  • InfiniBand FDR/EDR connectivity
  • Data center interconnects
  • Switch-to-switch connections
  • Server-to-switch links
  • High-performance computing (HPC)
  • Industrial networking
  • High-density rack interconnects

Q&A

What data rate does this 40G QSFP+ AOC support?

The AOC uses four parallel optical lanes operating at up to 10.3Gbps per lane, providing 40Gbps-class aggregate bandwidth.

What fiber types and transmission distances are supported?

The AOC is designed for multimode fiber transmission and supports distances of up to 82m over OM2 and up to 300m over OM3, depending on the link conditions and application.

What makes this AOC suitable for industrial environments?

Its industrial-grade design combines armored cable construction with an LSZH jacket, providing enhanced mechanical protection and greater deployment flexibility in demanding networking environments.

Can this AOC be used for InfiniBand networks?

Yes. It is designed for compatible InfiniBand FDR/EDR connectivity as well as 40 Gigabit Ethernet applications.

What optical components are integrated into the cable?

The AOC integrates 850nm VCSEL array transmitters and PIN array receivers to provide four-channel parallel optical transmission and reception.

Featured DACs & AOCs Comparison Guide

SKU Cable Type Data Rate Form Factor A Form Factor B Wire Type Length
AOC-100GQSFP28-5 AOC 100G QSFP28 QSFP28 OM4 Fiber Cable 5M
AOC-10GSFP-10 AOC 10G SFP+ SFP+ OM4 Fiber Cable 10M
AOC-25GSFP28-3 AOC 25G SFP28 SFP28 OM4 Fiber Cable 3M
AOC-40GQSFP-10 AOC 40G QSFP+ QSFP+ OM3 Fiber Cable 10M
AOC-QSFP-10G4SFP-5 AOC 40G QSFP+ 4*SFP+ OM3 Fiber Cable 5M
AOC-QSFP28-4SFP28-3 AOC 100G QSFP28 4×SFP28 OM3 Fiber Cable 3M
DAC-100GQSFP28-25G4SFP28-P5 DAC 100G QSFP28 4×SFP28 24AWG 5M
DAC-100GQSFP28-P3 DAC 100G QSFP28 QSFP28 26AWG 3M
DAC-10GCX4-P05 DAC 10G CX4 CX4 28AWG 3M
DAC-10GSFP-P10 DAC 10G SFP+ SFP+ 24AWG 10M
DAC-400GQSFP-P5 DAC 400G QSFP-DD QSFP-DD 30AWG 5M
DAC-40GQSFP-P07 DAC 40G QSFP+ QSFP+ 28AWG 7M
DAC-QSFP-10G4SFP-P03 DAC 40G QSFP+ 4 * SFP+ 30AWG 3M
DAC-SFP-P05 DAC 1.25G SFP SFP 30AWG 5M

Quality Qulifications and Compliance

To get the detailed certification, please go to the Compliance.

Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.

Have Questions? Contact Our Product Experts or Sales Team Today! We Will Fedback You Soon.

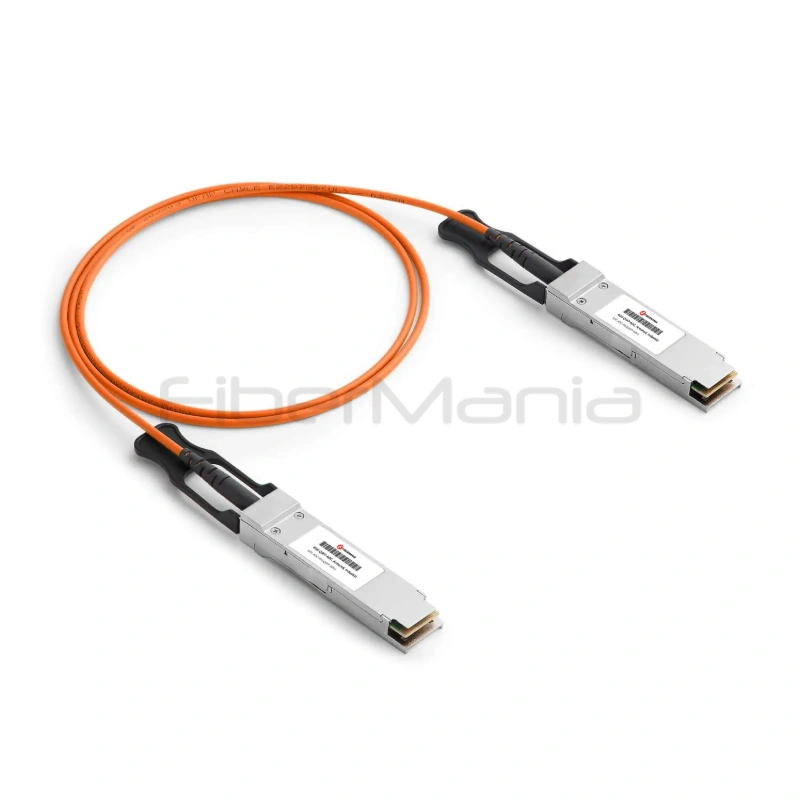

40G QSFP+ Armored Active Optical Cable (AOC), Industrial-Grade, 850nm, OM2/OM3
