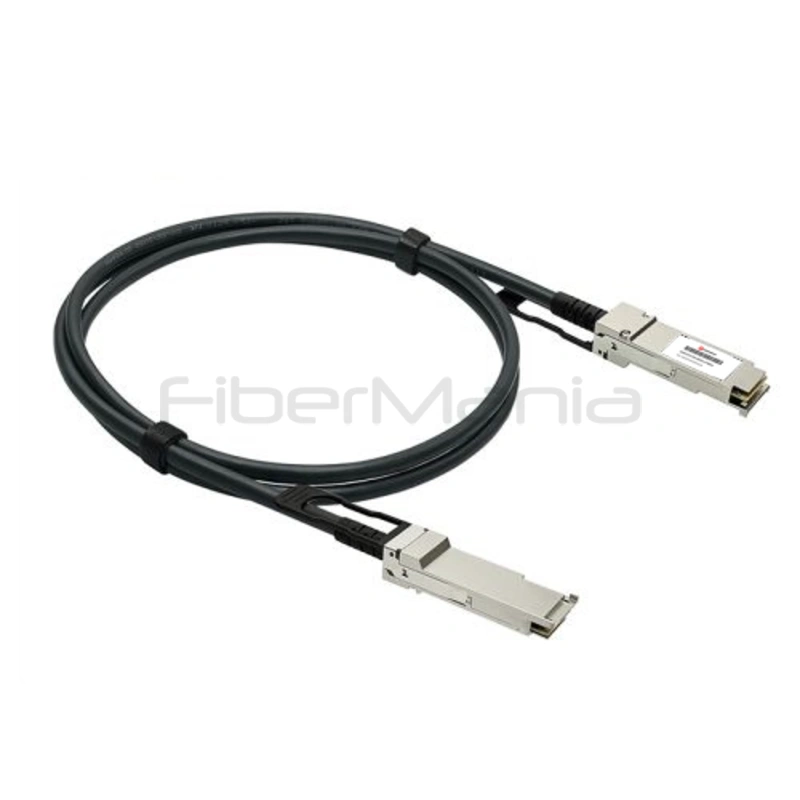

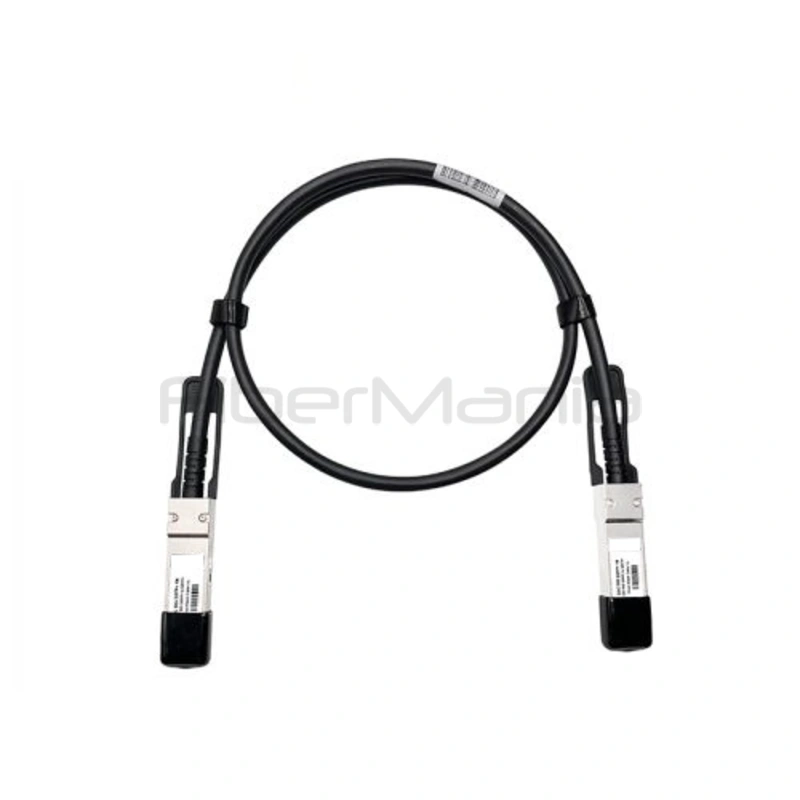

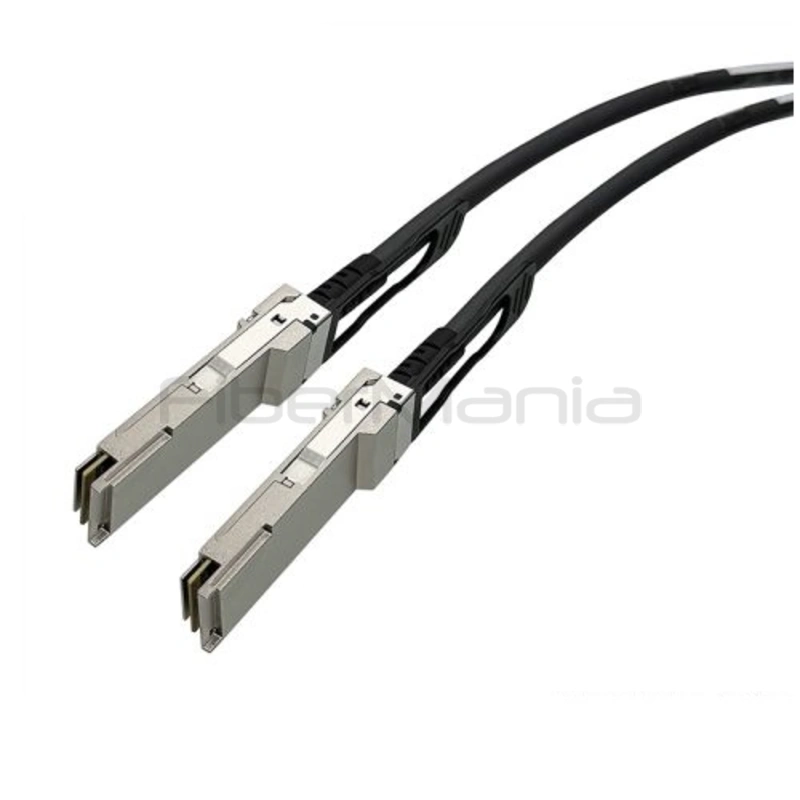

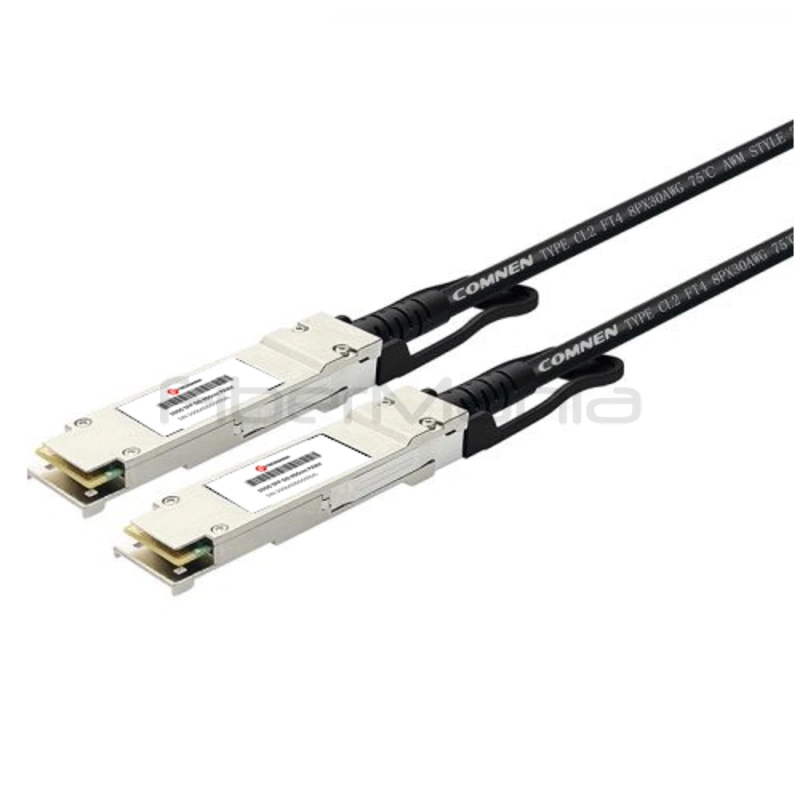

56G QSFP+ Passive DAC Cable, 1m–7m, 30–24 AWG
Categories:
Product Highlights:
- 56Gbps-class QSFP+ to QSFP+ connectivity
- Four channels up to 14.3125Gbps each
- Passive copper design with low power consumption
- 1m–7m cable lengths
- 30–24 AWG conductor options
- Cost-effective short-range interconnect
- Ideal for high-density data center deployments
Table of Contents
Description
The 56G QSFP+ Passive Direct Attach Copper (DAC) Cable is a high-speed, low-power copper interconnect designed for 56Gbps-class Ethernet and other compatible short-range networking applications. Featuring QSFP+ connectors at both ends, it provides four high-speed electrical channels operating at up to 14.3125Gbps per channel for an aggregate 56Gbps-class connection. Available in 1m to 7m lengths with 30–24 AWG conductor options, the cable provides flexible deployment for different rack layouts and power requirements. Its passive copper design requires no optical components or active signal processing, providing a cost-effective, low-power solution for data center, server, switch, and high-performance networking connections.
Specification
| Connector Configuration | QSFP+ to QSFP+ |
|---|---|
| Application | 56G Ethernet |
| Aggregate Data Rate | Up to 56Gbps |
| Data Rate per Channel | Up to 14.3125Gbps |
| Number of Channels | 4 |
| Available Lengths | 1m, 3m, 5m, 7m |
| Maximum Length | 7m |
| Available Wire Gauges | 30–24 AWG |
| Standard | SFF-8436 |
| Architecture | Passive Copper |
| Power Supply | #ERROR! |
| Power Consumption | Low Power |
| EMI | Low EMI Design |
| Signal Integrity | Optimized High-Speed Design |
| Operating Temperature | 0°C to +70°C |
| RoHS | Compliant |
Features
- QSFP+ to QSFP+ direct attach copper connection
- Supports up to 56Gbps aggregate data rate
- Four electrical channels at up to 14.3125Gbps per channel
- Passive copper construction with low power consumption
- Available in 1m to 7m lengths
- Multiple conductor gauges from 30 to 24 AWG
- Cost-effective alternative to optical interconnects for short-range links
- Designed for low EMI and reliable signal integrity
- Supports high-density rack and data center deployments
- Plug-and-play direct connection
Applications
- 56Gbps-class Ethernet connectivity
- Switch-to-switch connections
- Server-to-switch connections
- Data center rack interconnects
- High-performance computing (HPC) networks
- Short-distance top-of-rack connections
- High-density network equipment interconnection
Q&A
What data rate does this QSFP+ DAC support?
The cable supports a 56Gbps-class aggregate data rate using four electrical channels, with each channel operating at up to 14.3125Gbps.
What lengths and wire gauges are available?
The cable is available in lengths from 1m to 7m and conductor gauges from 30 to 24 AWG. The appropriate combination can be selected according to rack layout, cable management, and power requirements.
Is this DAC cable passive or active?
It is a passive DAC cable. It uses direct copper electrical connections and does not require optical components or active signal processing, resulting in low power consumption and cost.
When should I choose a 56G QSFP+ DAC instead of an optical cable?
The DAC is well suited to short-distance connections within or between adjacent racks where low cost, low power consumption, and simple deployment are priorities. For longer distances, an optical transceiver or AOC may be more appropriate.
Can the cable be customized?
Yes. Options such as cable length, conductor gauge, and other cable construction specifications can be customized for different deployment requirements, subject to product design and compatibility.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
