100G QSFP28 Male-to-Female DAC Extension Cable, 1–5m
Categories:
Product Highlights:
- 100G QSFP28 male-to-female DAC extension
- Four-channel 28.3125Gbps-per-channel design
- 1m–5m length options
- Passive, low-power copper architecture
- Low insertion loss and crosstalk
- Shielded connector design for reduced EMI
Table of Contents
Description

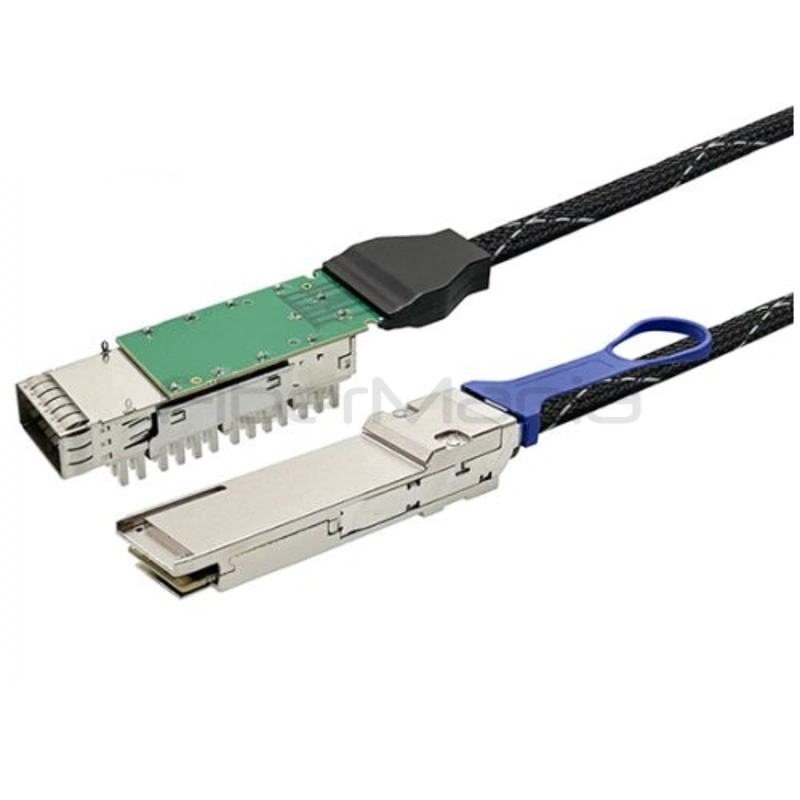

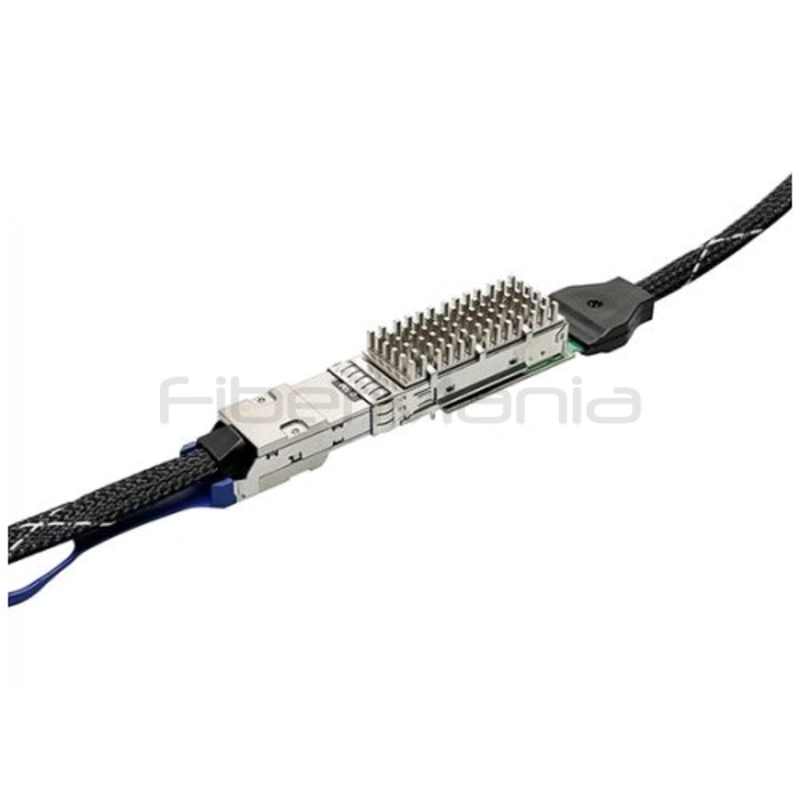

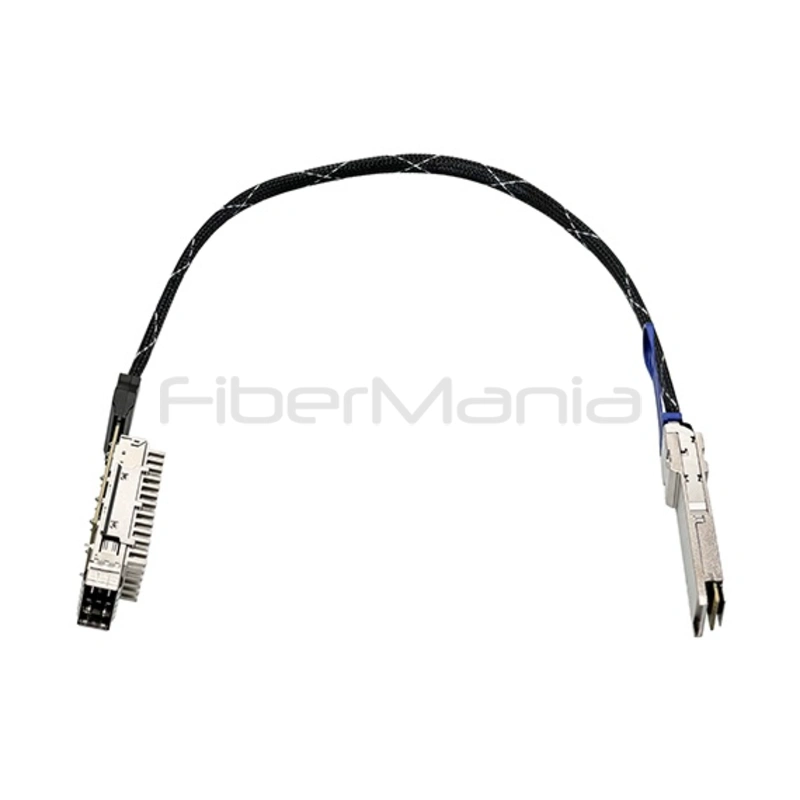

The 100G QSFP28 Male-to-Female DAC Extension Cable is a passive copper extension solution designed to extend existing QSFP28 connections in 100G network environments without replacing the original cable assembly. It features a QSFP28 male connector on one end and a QSFP28 female extension interface on the other, supporting up to 28.3125Gbps per channel across four channels for 100G-class short-distance connectivity. Available in 1m to 5m lengths, the cable uses a shielded metal connector structure and optimized electrical design to provide low insertion loss, low crosstalk, and reduced EMI. Its low-power architecture makes it suitable for data centers, high-performance computing, storage networks, testing environments, and other applications requiring additional reach for QSFP28 connections.
Specification
| Connector 1 | QSFP28 Male |
|---|---|
| Connector 2 | QSFP28 Female |
| Application | 100G Ethernet |
| Data Rate | Up to 28.3125Gbps per channel |
| Number of Channels | 4 |
| Aggregate Data Rate | Up to 100G Class |
| Maximum Extension Length | Up to 5m |
| Specification Compliance | SFF-8665 |
| Power Supply | #ERROR! |
| Architecture | Passive Copper |
| Cable Gauge | 30 AWG |
| Cable Outer Diameter | 6.5 ± 0.2mm |
| Cable Material | Copper |
| Cable Braid | PET Braid, Black |
| Connector PCB | QSFP28 PCBA, 38P |
| Electrical Contacts | Gold-Plated |
| Upper/Bottom Shell | Zinc Alloy, Nickel Plated |
| Latch | Stainless Steel, 1.40mm |
| Pull Tab | Thermoplastic Polymer, UL94V-2 |
| Inner Mold | Hot-Melt Resin |
| SR Material | TPEE, Black, UL94V-2 |
| Signal Integrity | Optimized High-Speed Design |
| Insertion Loss | Low |
| Crosstalk | Low |
| EMI | Low-EMI Design |
| RoHS | RoHS 2.0 Compliant |
| Operating Temperature | 0°C to +70°C |
Features
- QSFP28 male-to-female extension design
- Supports up to 28.3125Gbps per channel
- Four-channel 100G-class connectivity
- Passive copper construction
- Available in 1m to 5m lengths
- Shielded metal connector structure
- Low insertion loss and low crosstalk
- Reduced EMI for improved signal integrity
- Low power consumption
- Extends existing QSFP28 cable connections
Applications
- 100GbE data center networks
- Switch-to-switch connections
- Switch-to-server connectivity
- High-performance computing
- Storage networking
- High-density rack environments
- Network testing and laboratory environments
- QSFP28 connection extension
FAQ
What is the purpose of this QSFP28 extension cable?
It is designed to extend an existing QSFP28 connection, providing additional cable reach without requiring replacement of the original QSFP28 cable assembly.
What connectors are used on the cable?
The cable has a QSFP28 male connector on one end and a QSFP28 female extension interface on the other end.
What data rate does the cable support?
It supports up to 28.3125Gbps per channel across four channels, providing 100G-class connectivity for compatible QSFP28 equipment.
What lengths are available?
The extension cable is available in lengths from 1m to 5m to accommodate different rack layouts and equipment installation requirements.
Can it be used in data center and HPC environments?
Yes. Its passive, low-power copper design and high-speed electrical performance make it suitable for data centers, high-performance computing, storage networks, and other high-density environments.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
