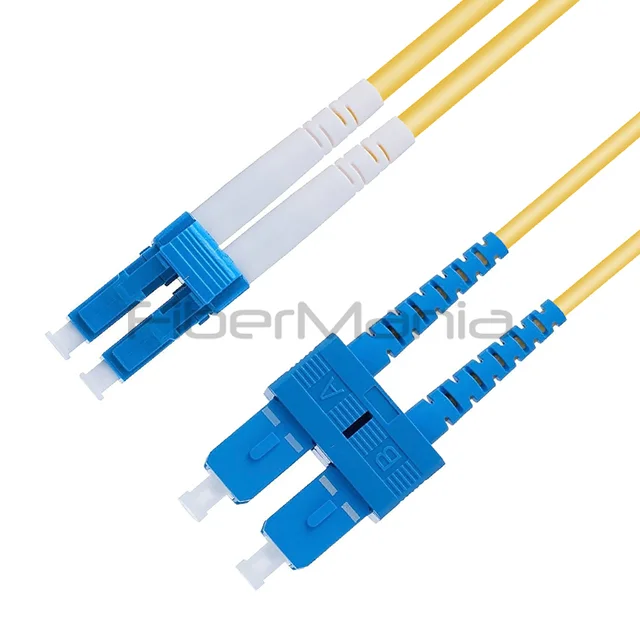

SC/UPC-LC/UPC Duplex OS2 Single Mode OFNR Fiber Optic Patch Cable Yellow 1m
Categories:
Product Highlights:
-
Premium single-mode duplex fiber patch cable with SC/UPC to LC/UPC connectors for reliable high-speed data transmission.
-
OFNR jacket and UL/RoHS-compliant materials ensure safety, durability, and regulatory compliance.
-
FiberMania provides OEM/ODM customization including cable lengths, hybrid connectors, and private-label options to meet global network deployment needs.
Table of Contents
Description
The 1M SC/UPC-LC/UPC Duplex Fiber Optic Patch Cable (9/125 OS2, 3.0mm, Yellow) is designed for indoor network environments requiring high-performance connectivity. Featuring SC/UPC and LC/UPC connectors, this duplex cable delivers low insertion loss and high return loss, making it ideal for data centers, telecom networks, and enterprise LAN/WAN applications.
Its OFNR-rated jacket ensures fire resistance for safe indoor installation, while the compact 3.0mm cable diameter allows easy routing through cable trays and conduits. Available in standard and custom lengths, this patch cord is suitable for hybrid setups and integrates seamlessly with existing SC, LC, FC, and ST networks.
Specification
| Fiber Mode / Type | OS2 Single Mode 9/125µm |
|---|---|
| Connector Type | SC/UPC-LC/UPC |
| Cable Length | 1 m |
| Jacket Type & Color | OFNR, Yellow |
| Cable Diameter | 3.0 mm |
| Duplex | Yes |
| Transmission Speed | 1G–10G |
| Insertion Loss | <0.3 dB typical |
| Return Loss | >50 dB |
| Operating Environment | Indoor fire-safe |
Features
-
SC/UPC to LC/UPC duplex connectors
-
Single-mode 9/125 OS2 fiber strand
-
OFNR, OFNP, and LSZH jackets available
-
Hybrid patch cords with FC, LC, SC, ST connectors available
-
Standard and custom lengths supported
-
UL listed and RoHS-compliant materials
-
Compact 3.0mm cable diameter for flexible installation
Applications
-
Telecom and datacom networks
-
Fiber-to-the-home (FTTH) and campus networks
-
Data centers, server rooms, and network cabinets
-
LAN, WAN, and high-speed backbone infrastructures
-
Patch panel interconnections and network expansion
FAQ
Q: Can the cable length be customized?
Yes, FiberMania supports custom lengths according to project requirements.
Q: Are hybrid connectors available?
Yes, SC, LC, FC, and ST hybrid connectors can be provided.
Q: Is this cable suitable for indoor installation?
Yes, the OFNR jacket is fire-rated and suitable for indoor use.
Q: What is the fiber core size?
This patch cable uses 9/125 micron single-mode OS2 fiber.
Q: Is this product UL and RoHS compliant?
Yes, it meets both UL and RoHS standards for safety and environmental compliance.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
