ST/UPC-SC/UPC Fiber Optic Patch Cable, Duplex 9/125 OS2 Single Mode OFNR 3.0mm, Yellow 1M 3ft
Categories:
Product Highlights:
-
High-quality single-mode duplex fiber cable with ST/UPC to SC/UPC connectors for stable, low-loss optical connections.
-
OFNR-rated jacket ensures indoor safety and reliable performance.
-
FiberMania provides OEM/ODM services including custom lengths, hybrid connector options, and private-label solutions for flexible network deployment.
Table of Contents
Description

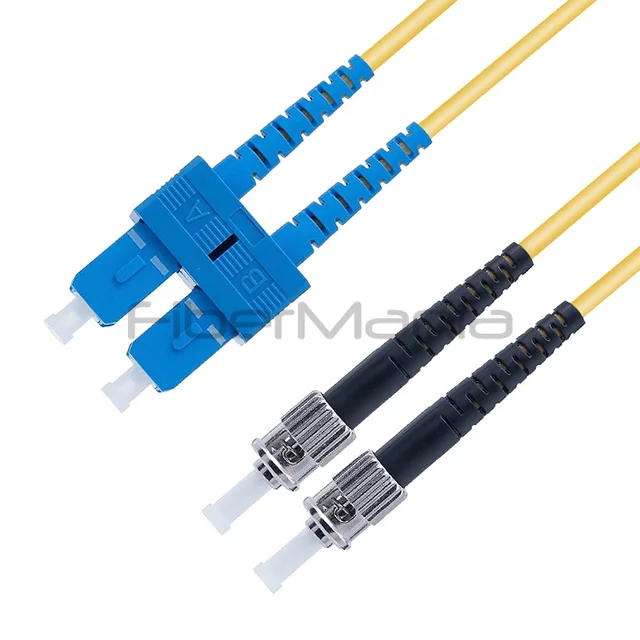

The 1M ST/UPC-SC/UPC Duplex Fiber Optic Patch Cable (9/125 OS2, 3.0mm, Yellow) is engineered for high-speed single-mode networks, delivering consistent signal performance. One end features an ST/UPC connector and the other end an SC/UPC connector, allowing seamless integration in mixed-network environments.
The duplex design enables simultaneous bidirectional transmission, ideal for telecom, data center, and LAN applications. The OFNR-rated jacket provides flame resistance for safe indoor installations. FiberMania supports both standard and customized cable lengths, as well as hybrid patch cord configurations for versatile network setups.
Specification
| Fiber Mode / Type | OS2 Single Mode 9/125µm |
|---|---|
| Connector Type | ST/UPC-SC/UPC |
| Cable Length | 1 m (3 ft) |
| Jacket Type & Color | OFNR, Yellow |
| Cable Diameter | 3.0 mm |
| Duplex | Yes |
| Transmission Speed | 1G–10G |
| Insertion Loss | <0.3 dB typical |
| Return Loss | >50 dB |
| Operating Environment | Indoor fire-safe |
Features
-
ST/UPC to SC/UPC duplex connectors
-
Single-mode 9/125 OS2 fiber for high-speed transmission
-
OFNR, OFNP, and LSZH jacket options available
-
Compatible with hybrid patch cords (FC, LC, SC, ST connectors)
-
Standard and custom lengths available
-
UL-listed and RoHS-compliant materials
-
3.0mm cable diameter for easy routing
Applications
-
Telecommunication and data center networks
-
Enterprise LAN/WAN connections
-
Fiber-to-the-home (FTTH) networks
-
Patch panels and backbone cabling
-
Indoor high-speed optical networks
FAQ
Q: Can I order custom lengths?
Yes, FiberMania offers both standard and custom lengths.
Q: Can I request hybrid connector configurations?
Yes, options include FC, LC, SC, and ST connectors.
Q: Is the cable safe for indoor use?
Yes, the OFNR jacket provides flame resistance for indoor environments.
Q: What is the fiber core size?
The cable uses 9/125 micron single-mode OS2 fiber.
Q: Are the materials UL and RoHS compliant?
Yes, all materials meet UL and RoHS standards.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
