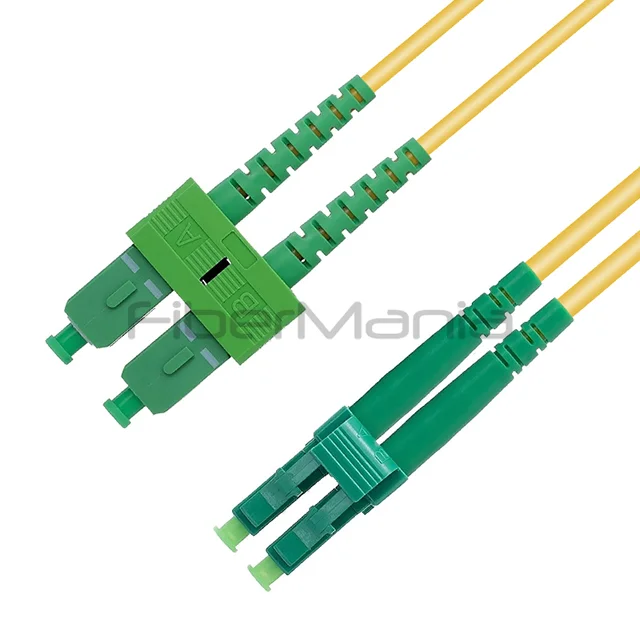

SC/APC–LC/APC Duplex OS2 Single Mode OFNR Patch Cable 1m
Categories:
Product Highlights:
-
High-performance SC/APC to LC/APC duplex patch cable designed for low-loss OS2 single-mode optical transmission.
-
Built with premium 9/125μm fiber and OFNR-rated 3.0mm jacket for reliable performance in demanding indoor environments.
-
Ideal for high-density telecommunications, data center interconnections, and long-distance optical links requiring minimal back reflection.
Table of Contents
Description
This SC/APC to LC/APC duplex OS2 single mode patch cable provides exceptional optical performance and stability for high-speed communication networks. The APC-polished connectors minimize return loss, making the cable suitable for long-haul, high-precision, and high-bandwidth deployments. Its 9/125µm fiber ensures low attenuation, while the OFNR 3.0mm jacket offers flame-resistant protection for use in indoor riser spaces.
Engineered with high-quality zirconia ferrules and tight tolerance connectors, the patch cable guarantees precise alignment, consistent signal performance, and long-term durability. It is available in multiple fiber modes including OS2, OM1, OM2, OM3, OM4, and OM5, as well as various jacket materials such as OFNR, OFNP, and LSZH to suit different installation environments.
This cable is widely used in data centers, telecom rooms, passive optical networks (PON), FTTH/FTTx systems, and backbone interconnections. With options for hybrid connector types including FC, LC, SC, ST, and more, along with standard or custom lengths, it provides flexible compatibility for diverse fiber management scenarios. All materials comply with UL and RoHS standards.
Specification
| Connector Types | SC/APC to LC/APC |
|---|---|
| Fiber Mode | Single Mode (OS2) |
| Fiber Count | Duplex |
| Core Size | 9 µm |
| Cable Length | 1 Meter |
| Outer Diameter | 3.0mm |
| Jacket Type | OFNR |
| Color | Yellow |
| Polish Type | APC to APC |
| Compliance | UL, RoHS |
Key Features
-
SC/APC and LC/APC connectors for low-return-loss performance
-
Supports OS2, OM1, OM2, OM3, OM4, and OM5 fiber types
-
Jacket options: OFNR, OFNP, LSZH
-
Hybrid connector combinations available (FC, LC, SC, ST, etc.)
-
Standard and custom lengths supported
-
UL & RoHS compliant materials
Applications
-
Data centers & server rooms
-
FTTx / FTTH networks
-
Optical distribution frames (ODF)
-
Telecom backbone and central office networks
-
High-density patching environments
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
