GYTC8S Figure 8 Self-supporting Armored Outdoor Optical Fiber Cable
Categories:
Product Highlights:
-
Figure 8 self-supporting armored outdoor fiber optic cable with 2–144 G652D single-mode fibers.
-
Water-blocking jelly-filled loose tubes, steel tape armor, and UV-resistant PE sheath provide long-term durability.
-
Ideal for aerial, pipeline, long-distance, and local area network deployments.
-
FiberMania offers OEM/ODM services
Table of Contents
Description

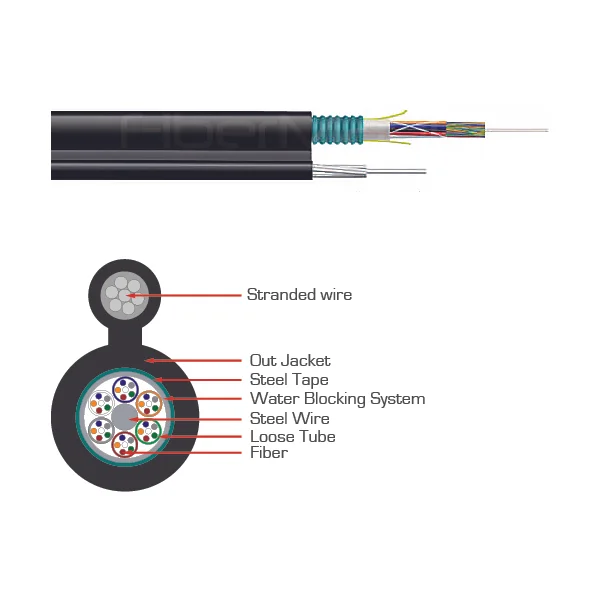

The FiberMania GYTC8S Figure 8 optical fiber cable is designed for aerial outdoor applications, providing a reliable, self-supporting structure suitable for long-distance transmission. Named for its figure-8 design, the cable integrates a central steel strength member and stranded suspension line to provide both mechanical stability and ease of installation.
Available in 2 to 144 fibers, the cable features a water-blocking jelly-filled loose tube containing G652D single-mode fibers. Optional PP fillers ensure additional structural support where needed. The cable is longitudinally armored with copolymer-coated steel tape and protected by a UV-resistant PE outer sheath, offering excellent protection against environmental factors, crushing, and tensile stress.
With superior mechanical and temperature performance, the GYTC8S cable is resistant to hydrolysis and crushing, ensuring long-term reliability. Its flexible design allows for easy deployment in aerial, pipeline, and other outdoor distribution networks.
Specification
| Fiber Count | 2–144 |
|---|---|
| Strength Member | Steel wire + suspension |
| Sheath | PE, UV-resistant |
| Armor | Copolymer-coated steel |
| Water Protection | Jelly-filled tubes |
| Non-Metallic | Partially |
| Aerial Installation | Yes, self-supporting |
| Direct Burial | Limited |
| Anti-EMI | Partial |
| Key Strength | Self-supporting aerial |
Features
-
Self-supporting figure-8 design for aerial installations
-
Central steel strength member with water-blocking jelly-filled loose tubes
-
G652D single-mode fibers, 2–144 cores
-
Copolymer-coated steel tape armor with PE outer sheath
-
Crush-resistant, flexible, and UV-resistant
-
High-strength loose tube hydrolysis resistant
-
Optional PP filler for added structural stability
Applications
-
Outdoor aerial distribution networks
-
Pipeline laying installations
-
Long-distance and local area network communications
-
Telecommunications and broadband network deployments
FAQ
Q: What does “figure 8” refer to?
A: It refers to the cable’s design, which includes a self-supporting strand forming a figure-8 shape for aerial installation.
Q: How many fibers can this cable support?
A: The GYTC8S cable supports 2 to 144 fibers.
Q: Is this cable suitable for outdoor environments?
A: Yes, it has a PE sheath that is UV-resistant and armored for mechanical protection.
Q: What type of fiber is used?
A: G652D single-mode fiber.
Q: Can FiberMania provide custom lengths or fiber counts?
A: Yes, we offer full OEM/ODM services for custom fiber counts, cable lengths, jackets, and packaging.
| No. of fibers | 6 | 12 | 24 | 48 | 72 | 96 | 144 |
| No. of tubes | 1 | 1 | 2 | 4 | 6 | 8 | 12 |
| fibers per tube | 6 | 6 | 6 | 12 | 12 | 12 | 12 |
| Filler Rod | 4 | 3 | 1 | 1 | 0 | 0 | 0 |
| Tube diameter (±0.1mm) | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 |
| Thickness of loose tube (±0.05mm) | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
| Outer diameter (±0.5mm) | 5.4X8.6 -15.0 | 5.4X8.6 -15.0 | 5.4X8.6 -15.0 | 5.4X9.8 -16.5 | 5.4X10.8 -17.5 | 5.4X12.2 -19.0 | 5.4X14.9 -22.0 |
| Thickness of out diameter (±0.1mm) | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.7 | 1.7 |
| Loose tube | Material | PBT | Color | Standard spectrum | |||
| Water blocking system | Material | Water blocking tape / Filling gel | |||||
| Armor | Material | Corrugated steel tape | |||||
| Central strength member | Material | Steel wire | Size | 1.4mm(6-48) 2.0mm(72-144) | |||
| Mental strength member | Material | Stranded steel wire | Size | 1.0mm*7 | |||
| Gallus | Material | PE | size （h*w） | 2.0*1.5mm | |||
| Outsheath | Material | PE | Color | Black | |||
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
