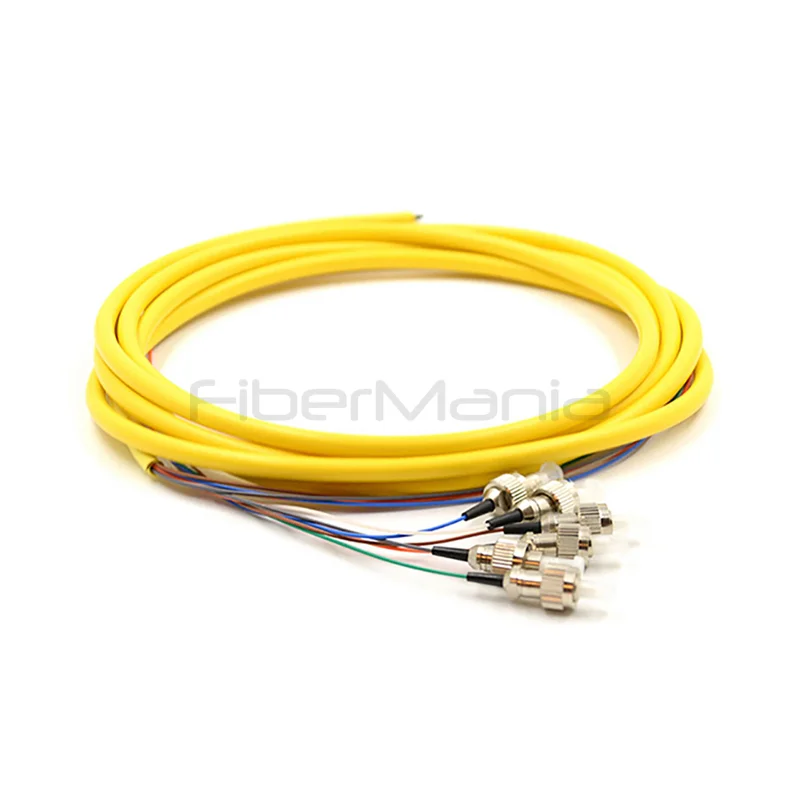

FC/UPC 6 Cores Fan-out Single Mode Fiber Optic Pigtail 9/125µm 3M Yellow Jacket

Name: FC/UPC 6 Cores Fan-out SM Fiber Optic Pigtail
SKU: FP-6FCSM9

P/N: FP-6FCSM9

Categories:

FC Pigtails

Product Highlights:

6-core FC/UPC fan-out single-mode fiber optic pigtail with 9/125µm fibers
Designed for efficient fusion splicing, low insertion loss, and high return loss
Color-coded strands for easy identification and organized installation
FiberMania provides OEM/ODM customization, free sample evaluation, fast 3-7 day delivery, and 1-3 year guarantee

Description

The FC/UPC 6 Cores Bundle Fan-out Fiber Optic Pigtail is an essential component for high-performance fiber optic networks. Designed with single-mode 9/125µm fibers, this pigtail provides precise termination on one end while leaving the other end blunt for easy fusion splicing. This configuration eliminates field terminations, reduces installation time, and ensures reliable connections within fiber patch panels or optical distribution frames.

Each fiber strand is color-coded according to industry standards for easy identification during installation. The pigtail is carefully packaged to prevent breakage during transport and handling, ensuring the integrity of all six fibers. FiberMania manufactures these pigtails with high-quality materials and precise optical performance for both telecom and enterprise applications.

This 3-meter yellow-jacketed pigtail is optimized for indoor deployment, offering excellent durability and stability. It is widely used in environments where multiple fiber strands need to be efficiently routed and connected, supporting seamless network operations.

Specification

Fiber Mode / Type	SM 9/125µm
Number of Fibers / Cores	6
Connector Type	FC/UPC
Cable Length	3 m
Jacket Type & Color	Yellow
Cable Diameter	–
Duplex / Simplex	Fan-out
Transmission Speed	1–10G
Operating Environment	Indoor
Standards Compliance	ISO/IEC 11801, TIA/EIA, RoHS
Features	6C SM fan-out

Features

Low insertion loss and low back reflection loss
High durability and reliable exchangeability
Color-coded fiber strands for easy identification
Meets ISO9001, RoHS, and Bellcore GR-326 core standards
Available in 4, 6, 8, 12, 24 fiber versions

Applications

CATV, LAN, and WAN networks
Test and measurement systems
Telecommunication networks and enterprise infrastructures
Premises installations
Video, broadcast, and military device terminations

Q&A

Q1: Can this pigtail support multiple fiber strands in high-speed networks?
A1: Yes, the 6-core configuration allows efficient multi-strand connections while maintaining low insertion loss.

Q2: Is this pigtail suitable for fusion splicing?
A2: Yes, one end is left blunt for direct fusion splicing to drop cables or other fibers.

Q3: Can I request custom fiber counts or lengths?
A3: Yes, FiberMania provides OEM/ODM services for custom lengths, fiber counts, and jacket colors.

Q4: What are the advantages of the color-coded fiber strands?
A4: Color-coded strands simplify installation and identification, reducing errors during deployment.

Q5: How durable is the pigtail for indoor installations?
A5: The OFNR-rated jacket and quality materials ensure long-term durability and fire-safe indoor use.
