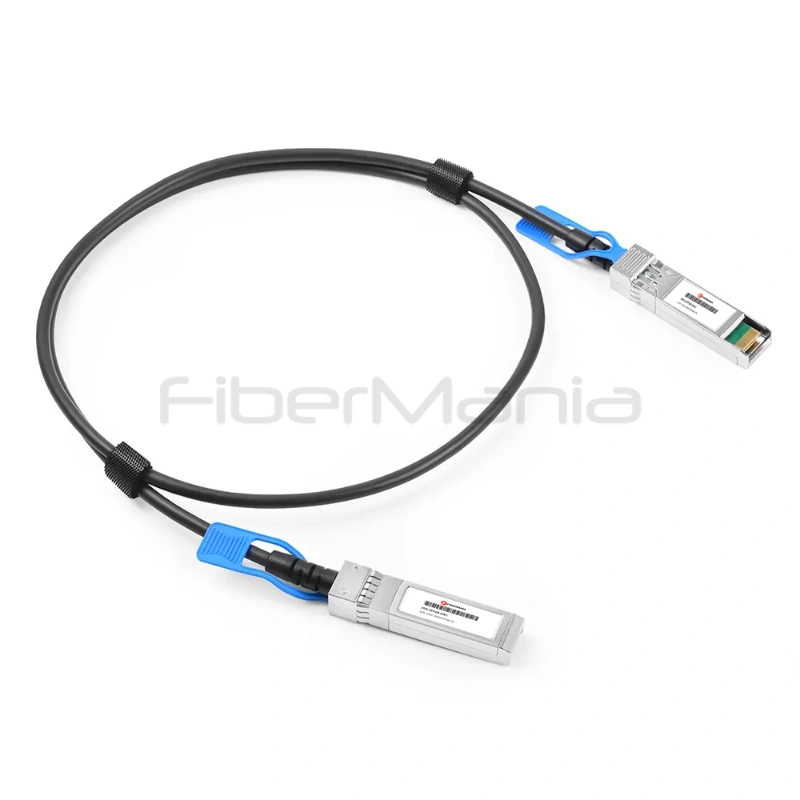

25G SFP28 Passive DAC Cable, 1m–5m
Categories:
Product Highlights:
- 25G SFP28 passive copper interconnect
- Supports up to 25.78Gbps data rates
- 1m–5m length options
- Low power and low latency
- Cost-effective short-distance 25GbE connectivity
Table of Contents
Description
The 25G SFP28 Direct Attach Copper (DAC) Cable is a high-speed, passive copper interconnect designed for reliable and cost-effective 25Gbps Ethernet connectivity. Featuring SFP28 connectors on both ends, it supports data rates up to 25.78Gbps while providing a low-power, low-latency connection for compatible network equipment. The passive design eliminates the need for optical conversion, making it an economical solution for short-distance high-speed connections.
Available in lengths from 1m to 5m, this SFP28 DAC is optimized for high-density data center and server networking environments where short, direct connections are required. Its low insertion loss, low crosstalk, and low EMI characteristics help maintain signal integrity while supporting high port density and efficient rack-level connectivity.
Specification
| Connector Type | SFP28 to SFP28 |
|---|---|
| Form Factor | SFP28 |
| Data Rate | Up to 25.78Gbps |
| Available Lengths | 1m–5m |
| Cable Gauge | 30 AWG |
| Cable Material | Copper |
| Application | 25G Ethernet |
| Interface | Hot-pluggable SFP 20-pin footprint |
| Compliance | SFF-8402, SFF-8432 |
| Compatibility | SFP+ MSA SFF-8431 |
| Insertion Loss | Low |
| Crosstalk | Low |
| EMI | Low EMI design |
| Power Consumption | Passive / Low Power |
| RoHS | RoHS 2.0 compliant |
| Operating Temperature | 0°C to +70°C |
| Connector Configuration | SFP28–SFP28 |
| Product Type | Passive |
Features
- SFP28 connectors on both ends
- Supports data rates up to 25.78Gbps
- Passive copper cable design
- Low power consumption and low latency
- Available in 1m to 5m lengths
- Low insertion loss and low crosstalk
- Low EMI for improved signal integrity
- Cost-effective alternative to optical connections for short distances
- Suitable for high-density rack-level networking
Applications
- 25GbE switch-to-server connections
- Data center rack connectivity
- Server-to-switch interconnects
- Network interface card (NIC) connections
- Top-of-rack (ToR) networking
- High-density enterprise networks
- Short-distance 25GbE connections
FAQ
What data rate does this SFP28 DAC support?
The cable supports data rates up to 25.78Gbps, making it suitable for 25GbE network connections.
What cable lengths are available?
This passive SFP28 DAC is available in lengths from 1m to 5m, providing flexibility for different rack and equipment layouts.
Why use a passive DAC instead of an optical cable?
A passive DAC does not require optical conversion, resulting in lower power consumption, lower latency, and a more economical solution for short-distance connections.
What equipment can this cable connect?
It can be used to directly connect compatible SFP28 ports on switches, servers, NICs, and other 25GbE network equipment.
Is this cable suitable for data centers?
Yes. Its low power consumption, low latency, compact form factor, and high-density connectivity make it well suited for data center and rack-level applications.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
